FiberChek Probe Microscope
Q UI CK CA RD
PON Fiber Inspection with Pass/Fail Analysis
This Quick Card outlines how to use the FiberChek Probe Fiber Inspection Microscope to
inspect fiber end faces commonly found in GPON and XGSPON deployments. The
FiberChek Probe can be operated autonomously or can be used in conjunction with an
Android or iOS device with VIAVI's FiberChekMOBILE application. The FiberChekMOBILE
application is recommended when performing tests in direct sunlight or locations where the
screen cannot be easily viewed.
•

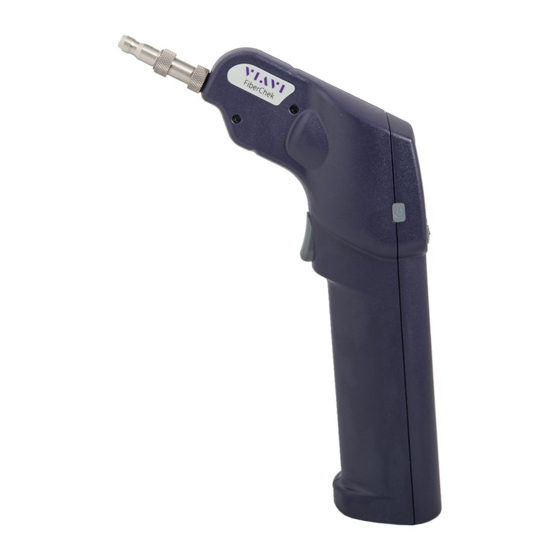

FiberChek Probe Fiber Inspection Microscope
•
Smartphone (iPhone®) or tablet with iOS and
the FiberChekMOBILE app.
(Search the Apps@Work or the App Store® to
install VIAVI FiberChekMOBILE)
•
Bulkhead and Patch Cord Inspection Tips
matching the fiber under test
•
Fiber optic cleaning tools

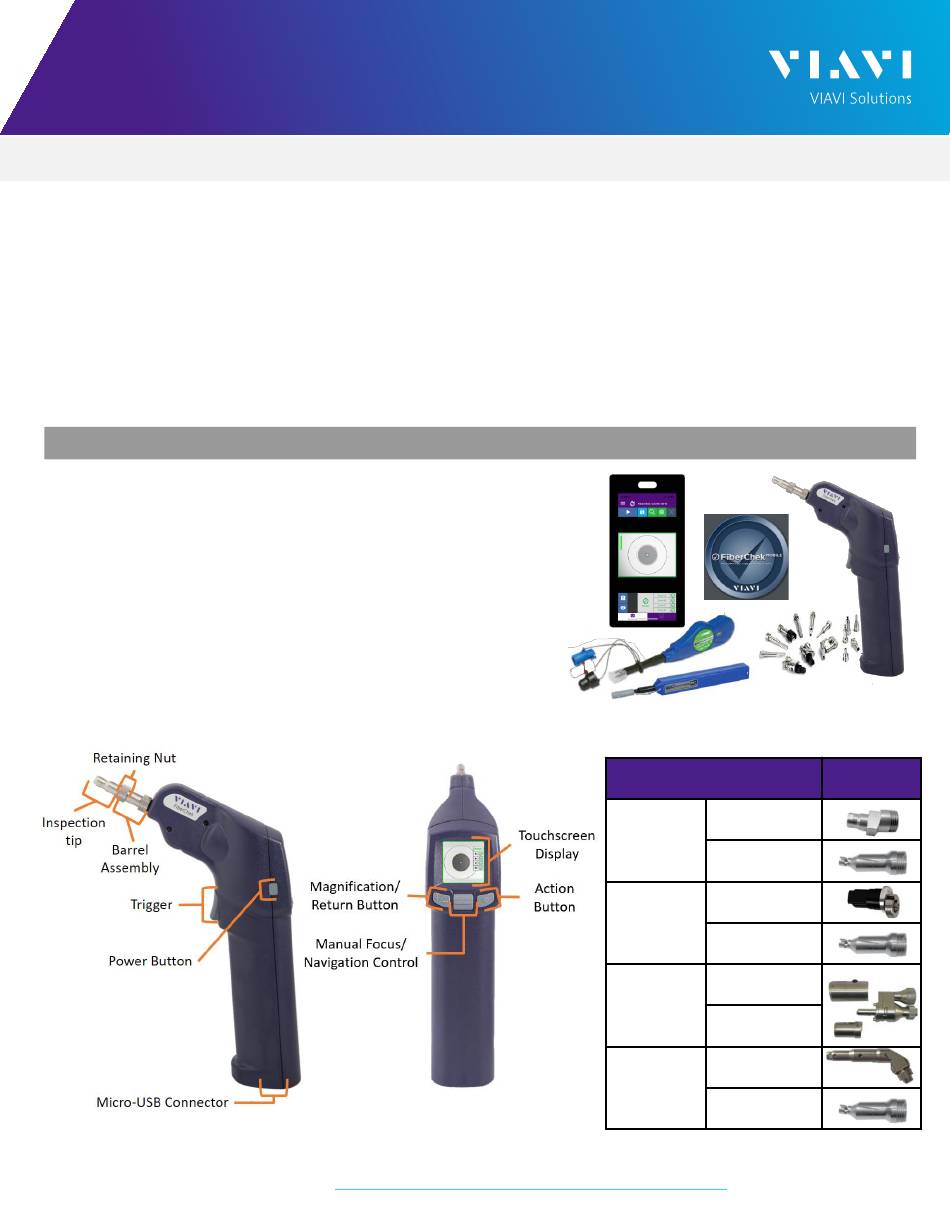

Figure 2: FiberChek Probe, Side view and Front View
FiberChek Probe Microscope
https://www.viavisolutions.com/en-us/products/fiber-inspection-cleaning
VIAVI//Public
Figure 1: Equipment Requirements
Connection Type
Bulkhead
SC-APC
Patch Cord
Bulkhead
Corning
OptiTap
Patch Cord
Bulkhead
Corning
OptiTip
Patch Cord
Bulkhead
Corning
PushLok
Patch Cord
Figure 3: Inspection tips
Tip
2
2
1
2
1
1
1
2
Advertisement
Related Manuals for Viavi FiberChek
Summary of Contents for Viavi FiberChek
- Page 1 Q UI CK CA RD PON Fiber Inspection with Pass/Fail Analysis This Quick Card outlines how to use the FiberChek Probe Fiber Inspection Microscope to inspect fiber end faces commonly found in GPON and XGSPON deployments. The FiberChek Probe can be operated autonomously or can be used in conjunction with an Android or iOS device with VIAVI’s FiberChekMOBILE application.
- Page 2 C O N N E C T T I P T O F I B E R C H E K P R O B E Inspection Tips are attached to the Front of the FiberChek probe by threading the collar of the tip onto the device: •...
- Page 3 FiberChekPRO user manual. To download FiberChekPRO to your PC, visit http://fcpro.updatemyunit.net/. Press the Magnification/Return Button twice or press the Trigger once to return to the Live Inspection View. The FiberChek Probe is ready to perform PASS/FAIL Analysis. Connection Type...
- Page 4 Figure 7: OptiTap Bulkhead assembly. Rotate wheel to view and test each fiber. Tap the Trigger of the FiberChek microscope Figure 8: OptiTip Bulkhead to auto-focus the fiber under test. Press the Trigger again and hold for 2 seconds to perform PASS/FAIL analysis.
- Page 5 Figure 12: OptiTap Patch Cord view and test each fiber. Figure 13: OptiTip Patch Cord Tap the Trigger of the FiberChek microscope to auto-focus the fiber under test. Press the Trigger again and hold for 2 seconds to perform PASS/FAIL analysis. FiberChek will briefly display the analysis result and enter the Analysis Result View.
