UC-B30-Z

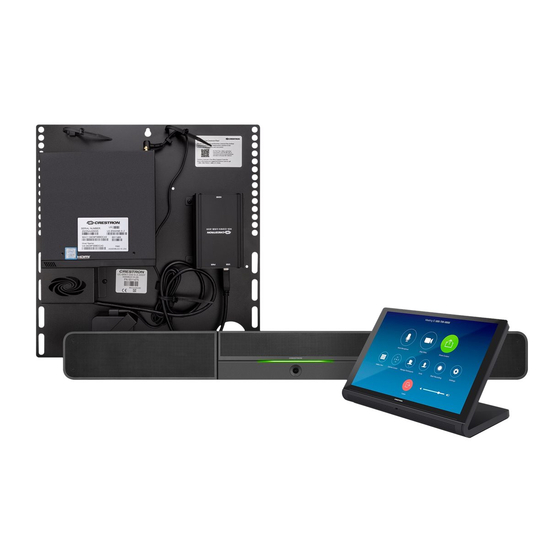

Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software
The UC-B30-Z Crestron Flex conferencing system provides a small room
video conference solution for use with Zoom Rooms® software. It
supports up to three video displays and features a tabletop touch
screen, UC bracket assembly, and smart soundbar and camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-B30-Z firmware is
installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included)
l
In the Box
Tabletop Touch Screen Device
1
10.1 in. Tabletop Touch Screen (6510821)
1
Grommet, Cable, Closed (2055455)
1
Grommet, Cable, Open (2055456)
1
Cover, Cable compartment (2055457)
Smart Soundbar with Camera
1
Soundbar with Camera (6511283)
1
Power supply (2045873) with cord (2042043)
1
Cable, USB 3.0, A - B, 6 ft (1.8 m) (2053077)
Mounting hardware
product page
(resources tab) to
UC Bracket Assembly
1
UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
2
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1
Key, Anchor (4529654)
1
Power cord (2053985)
2
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4
Tie Wrap (2047935)
Additional Items
1
PoE injector (6502429)
2
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1
Cable, HDMI, 20 ft (6.1 m) (6503567)
1
Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Flex UC-B30-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron Flex UC-B30-Z

Summary of Contents for Crestron Flex UC-B30-Z

  • Page 1 Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software The UC-B30-Z Crestron Flex conferencing system provides a small room UC Bracket Assembly video conference solution for use with Zoom Rooms® software. It UC Bracket Assembly with UC Engine and HDMI® content...

  • Page 2: Mount Devices

    Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software Mount Devices Mount the UC Bracket Assembly Mount the UC Bracket Assembly to VESA® compliant display devices, a wall, or other building structure. Anchors and screws are supplied for installation on walls 3/8 in.
  • Page 3 Connect Identify the UC Bracket Assembly The UC Bracket Assembly is available in two models. Identify the model included with your Crestron Flex system. Tap or click the corresponding image below to navigate to the appropriate connection instructions. UC Bracket Assembly with HD-CONV-USB-200...

  • Page 4: System Overview

    Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software System Overview For UC Bracket Assembly with HD-CONV-USB-200 When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.
  • Page 5 Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software For UC Bracket Assembly with HD-CONV-USB-300 When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

  • Page 6: Make Connections

    Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software Make Connections NOTE: For reference, the UC Bracket Assembly is shown with the HD-CONV-USB-200 in the following connection diagrams. Unless otherwise indicated in this guide, the connections remain the same for the UC Bracket Assembly with HD-CONV-USB-200 and HD-CONV-USB-300.
  • Page 7 Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software 2. Connect displays to the UC Engine.
  • Page 8 UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software 3. Connect the soundbar to the UC Engine as shown in the image below. Do not connect the soundbar to any of the other USB ports.
  • Page 9 Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software 4. Connect a laptop to the HD-CONV-USB-200 or HD-CONV-USB-300. 5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

  • Page 10: Apply Power

    Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software 5. Tap Settings. If a password is required, enter the password (the default password is "1234"). The Settings screen is displayed. 6. Tap Microphone and select the soundbar as the source.
  • Page 11 Quick Start UC-B30-Z Crestron Flex Small Room Conference System with Video Soundbar for Zoom Rooms® Software Additional Information Original Instructions The U.S. English version of this document is the original instructions. All other languages are a translation of the original instructions.
