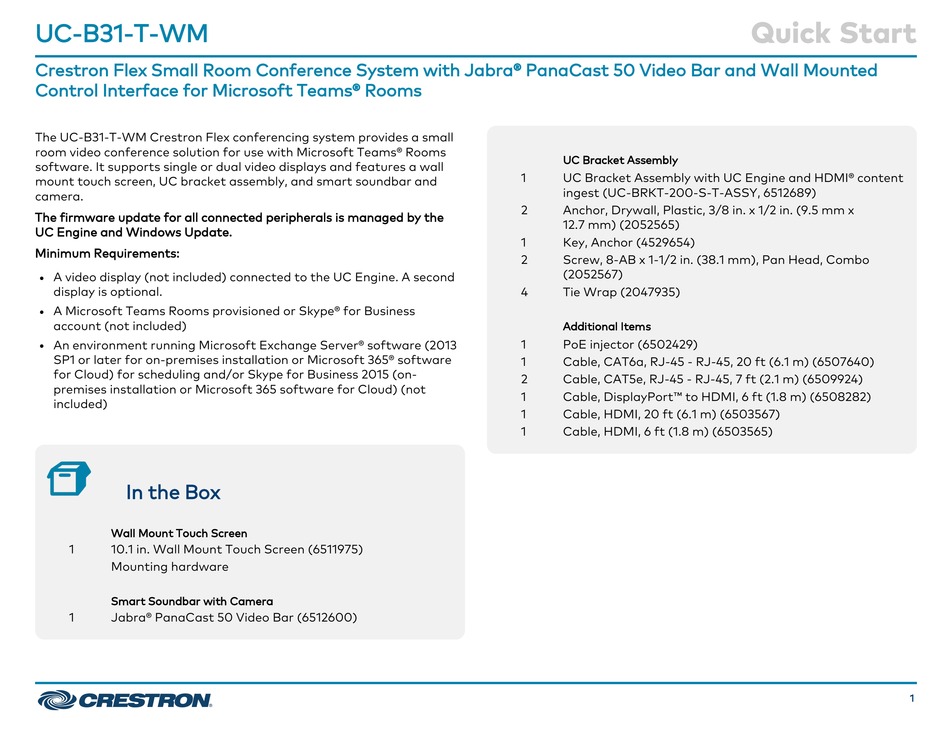

Crestron UC-B31-T-WM Quick Start Manual

UC-B31-T-WM
Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted
Control Interface for Microsoft Teams® Rooms
The UC-B31-T-WM Crestron Flex conferencing system provides a small
room video conference solution for use with Microsoft Teams® Rooms
software. It supports single or dual video displays and features a wall
mount touch screen, UC bracket assembly, and smart soundbar and
camera.
The firmware update for all connected peripherals is managed by the
UC Engine and Windows Update.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned or Skype® for Business
l
account (not included)
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6511975)
Mounting hardware
Smart Soundbar with Camera
1 Jabra® PanaCast 50 Video Bar (6512600)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-T-ASSY, 6512689)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
