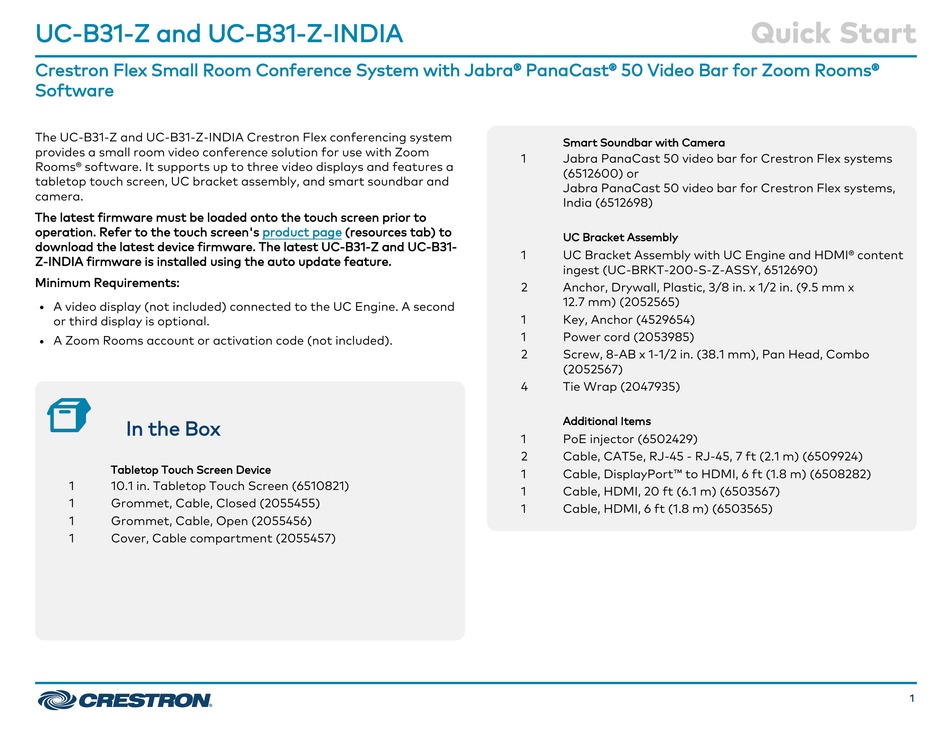

UC-B31-Z and UC-B31-Z-INDIA
Crestron Flex Small Room Conference System with Jabra® PanaCast® 50 Video Bar for Zoom Rooms®
Software
The UC-B31-Z and UC-B31-Z-INDIA Crestron Flex conferencing system
provides a small room video conference solution for use with Zoom
Rooms® software. It supports up to three video displays and features a
tabletop touch screen, UC bracket assembly, and smart soundbar and
camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-B31-Z and UC-B31-
Z-INDIA firmware is installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included).
l
In the Box
Tabletop Touch Screen Device
1 10.1 in. Tabletop Touch Screen (6510821)
1 Grommet, Cable, Closed (2055455)
1 Grommet, Cable, Open (2055456)
1 Cover, Cable compartment (2055457)
product page (resources tab) to
Smart Soundbar with Camera
1 Jabra PanaCast 50 video bar for Crestron Flex systems
(6512600) or
Jabra PanaCast 50 video bar for Crestron Flex systems,
India (6512698)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power cord (2053985)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
