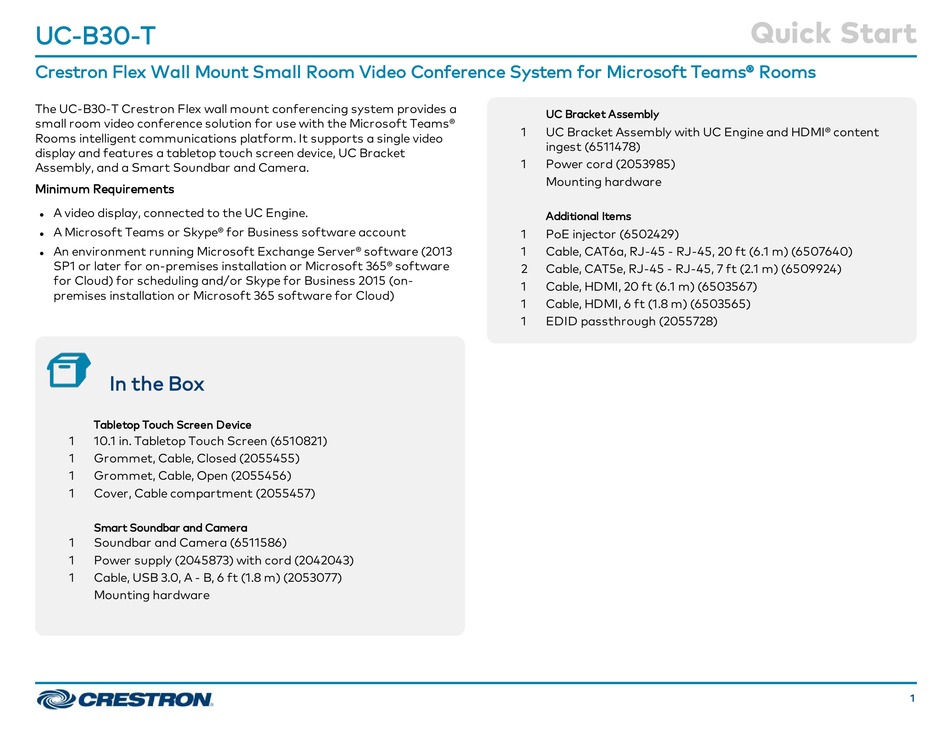

UC-B30-T
Crestron Flex Wall Mount Small Room Video Conference System for Microsoft Teams® Rooms

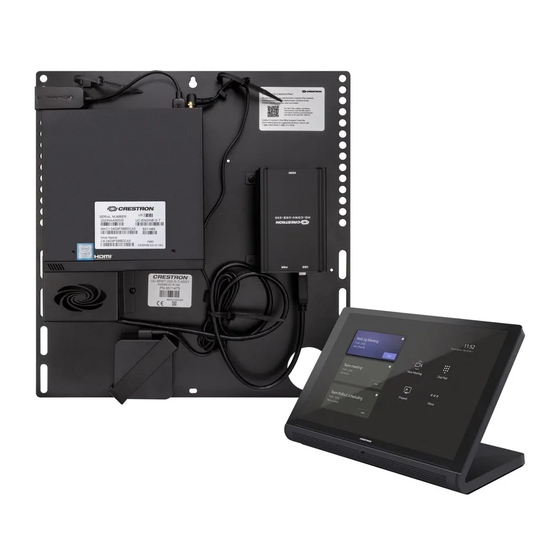

The UC-B30-T Crestron Flex wall mount conferencing system provides a
small room video conference solution for use with the Microsoft Teams®
Rooms intelligent communications platform. It supports a single video
display and features a tabletop touch screen device, UC Bracket
Assembly, and a Smart Soundbar and Camera.
Minimum Requirements
A video display, connected to the UC Engine.
l
A Microsoft Teams or Skype® for Business software account
l
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud)
In the Box
Tabletop Touch Screen Device
1 10.1 in. Tabletop Touch Screen (6510821)
1 Grommet, Cable, Closed (2055455)
1 Grommet, Cable, Open (2055456)
1 Cover, Cable compartment (2055457)
Smart Soundbar and Camera
1 Soundbar and Camera (6511586)
1 Power supply (2045873) with cord (2042043)
1 Cable, USB 3.0, A - B, 6 ft (1.8 m) (2053077)
Mounting hardware
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (6511478)
1 Power cord (2053985)
Mounting hardware
Additional Items
1 PoE injector (6502429)
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 EDID passthrough (2055728)
Quick Start
