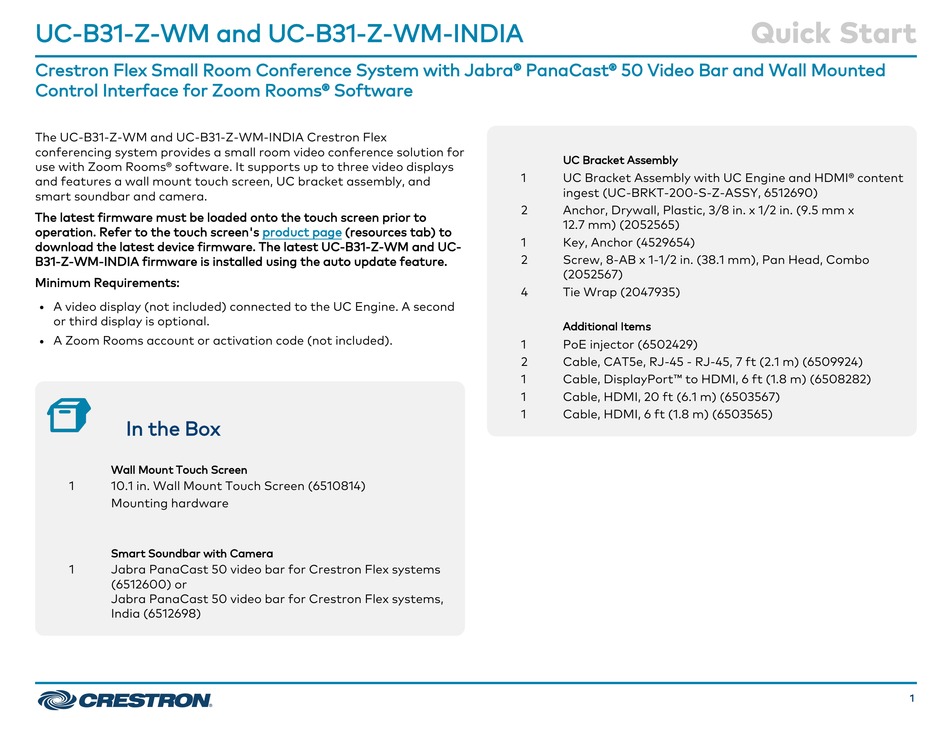

UC-B31-Z-WM and UC-B31-Z-WM-INDIA
Crestron Flex Small Room Conference System with Jabra® PanaCast® 50 Video Bar and Wall Mounted
Control Interface for Zoom Rooms® Software
The UC-B31-Z-WM and UC-B31-Z-WM-INDIA Crestron Flex
conferencing system provides a small room video conference solution for
use with Zoom Rooms® software. It supports up to three video displays
and features a wall mount touch screen, UC bracket assembly, and
smart soundbar and camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-B31-Z-WM and UC-
B31-Z-WM-INDIA firmware is installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included).
l
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6510814)
Mounting hardware
Smart Soundbar with Camera
1 Jabra PanaCast 50 video bar for Crestron Flex systems
(6512600) or
Jabra PanaCast 50 video bar for Crestron Flex systems,
India (6512698)
product page (resources tab) to
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
