Crestron UC-BX30-T-WM Quick Start Manual

UC-BX30-T-WM
Crestron Flex Advanced Small Room Conference System with Video Soundbar and Wall Mounted Control
Interface for Microsoft Teams® Rooms
The UC-BX30-T-WM Crestron Flex advanced conferencing system
provides small room video conference solution for use with Microsoft
Teams® Rooms software. It supports single or dual video displays and
features a wall mount touch screen, UC presentation transmitter, UC
bracket assembly, and smart soundbar and camera.
The firmware update for all connected peripherals is managed by the
UC Engine and Windows Update.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned or Skype® for Business
l
account (not included)
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6511975)
Mounting hardware

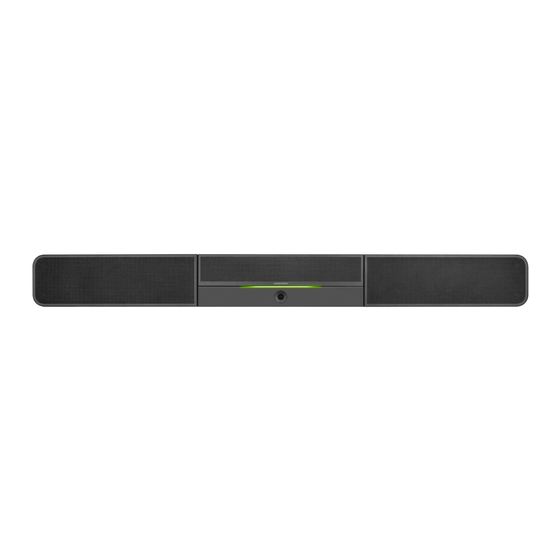

Smart Soundbar and Camera
1 Soundbar and Camera (6511283)
1 Power supply (2045873) with cord (2042043)
1 Cable, USB 3.0, A - B, 6 ft (1.8 m) (2053077)
Mounting hardware
UC Presentation Transmitter
1 Presentation transmitter (6510936)
1 Power pack (2056363) with cord (2001134)
1 Bracket, power supply (2056257)
1 Cable, USB to USB, 6.56 ft (2 m) (2056116)
1 Cable, HDMI®, 6.56 ft (2 m) (2056117)
1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-T-ASSY,
6512691)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
Quick Start
1
