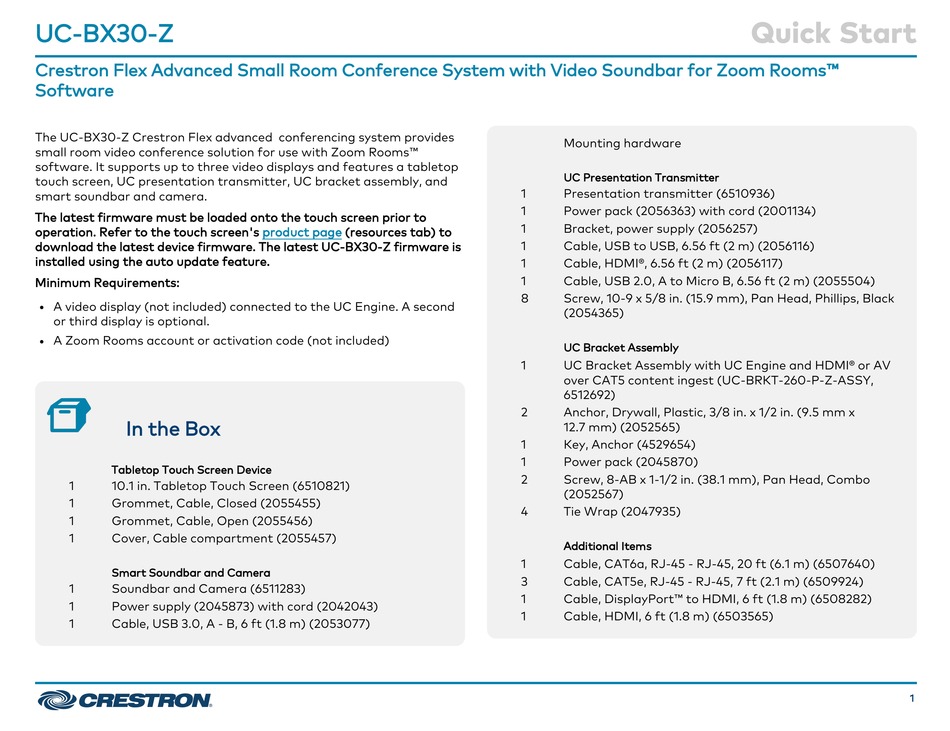

UC-BX30-Z
Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™
Software

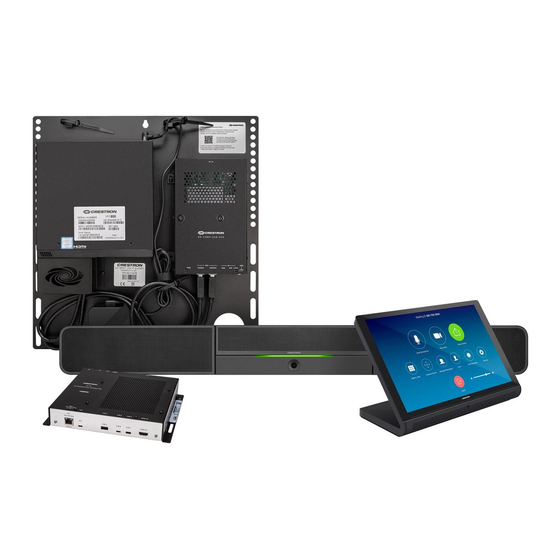

The UC-BX30-Z Crestron Flex advanced conferencing system provides
small room video conference solution for use with Zoom Rooms™
software. It supports up to three video displays and features a tabletop
touch screen, UC presentation transmitter, UC bracket assembly, and
smart soundbar and camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-BX30-Z firmware is
installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included)
l
In the Box
Tabletop Touch Screen Device
1
10.1 in. Tabletop Touch Screen (6510821)
1
Grommet, Cable, Closed (2055455)
1
Grommet, Cable, Open (2055456)
1
Cover, Cable compartment (2055457)
Smart Soundbar and Camera
1
Soundbar and Camera (6511283)
1
Power supply (2045873) with cord (2042043)
1
Cable, USB 3.0, A - B, 6 ft (1.8 m) (2053077)
product page
(resources tab) to
Mounting hardware
UC Presentation Transmitter
1
Presentation transmitter (6510936)
1
Power pack (2056363) with cord (2001134)
1
Bracket, power supply (2056257)
1
Cable, USB to USB, 6.56 ft (2 m) (2056116)
1
Cable, HDMI®, 6.56 ft (2 m) (2056117)
1
Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8
Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1
UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,
6512692)
2
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1
Key, Anchor (4529654)
1
Power pack (2045870)
2
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4
Tie Wrap (2047935)
Additional Items
1
Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
3
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1
Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-BX30-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Crestron UC-BX30-Z

  • Page 1 Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software The UC-BX30-Z Crestron Flex advanced conferencing system provides Mounting hardware small room video conference solution for use with Zoom Rooms™ software. It supports up to three video displays and features a tabletop...
  • Page 2: Mount Devices

    Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software Mount Devices Mount the UC Bracket Assembly Mount the UC Bracket Assembly to VESA® compliant display devices, a wall, or other building structure. Anchors and screws are supplied for installation on walls 3/8 in.
  • Page 3: System Overview

    Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software Connect System Overview When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected connection method.
  • Page 4: Make Connections

    Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software Make Connections 1. Make UC Engine connections as shown in the following illustration.
  • Page 5 Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software 2. Connect the power supply and the soundbar to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supplies to an AC power outlet.
  • Page 6 Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software 3. Connect power, the content ingest device (HD-CONV-USB-260), and LAN to the top of the UC Presentation Transmitter. NOTE: If a longer cable between the UC Presentation Transmitter and the HD-CONV-USB-260 is needed, use a DigitalMedia™ Ultra cable only.
  • Page 7 Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software 4. Connect the touch screen to the bottom of the UC Presentation Transmitter.
  • Page 8 Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software 5. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a connection type based on the available ports on the user's laptop.
  • Page 9: Apply Power

    Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software 4. Log in to the Zoom Rooms service with an activation code or Zoom Rooms Credentials (email and password). Activation Code: Configure a. Tap Enter Activation Code.
  • Page 10 Quick Start UC-BX30-Z Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™ Software Additional Information Visit the Product Page Original Instructions Scan the QR code to visit the product page. The U.S. English version of this document is the original instructions.
