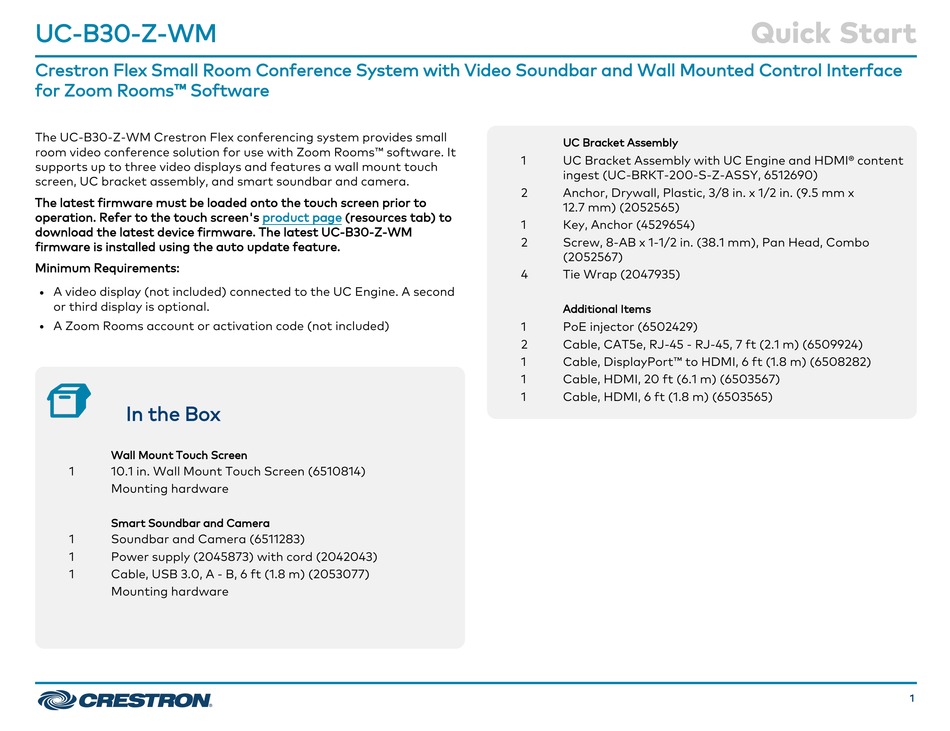

UC-B30-Z-WM
Crestron Flex Small Room Conference System with Video Soundbar and Wall Mounted Control Interface
for Zoom Rooms™ Software
The UC-B30-Z-WM Crestron Flex conferencing system provides small
room video conference solution for use with Zoom Rooms™ software. It
supports up to three video displays and features a wall mount touch
screen, UC bracket assembly, and smart soundbar and camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-B30-Z-WM
firmware is installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included)
l
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6510814)
Mounting hardware
Smart Soundbar and Camera
1 Soundbar and Camera (6511283)
1 Power supply (2045873) with cord (2042043)
1 Cable, USB 3.0, A - B, 6 ft (1.8 m) (2053077)
Mounting hardware
product page (resources tab) to
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
