Summary of Contents for Kilotech KIN 500

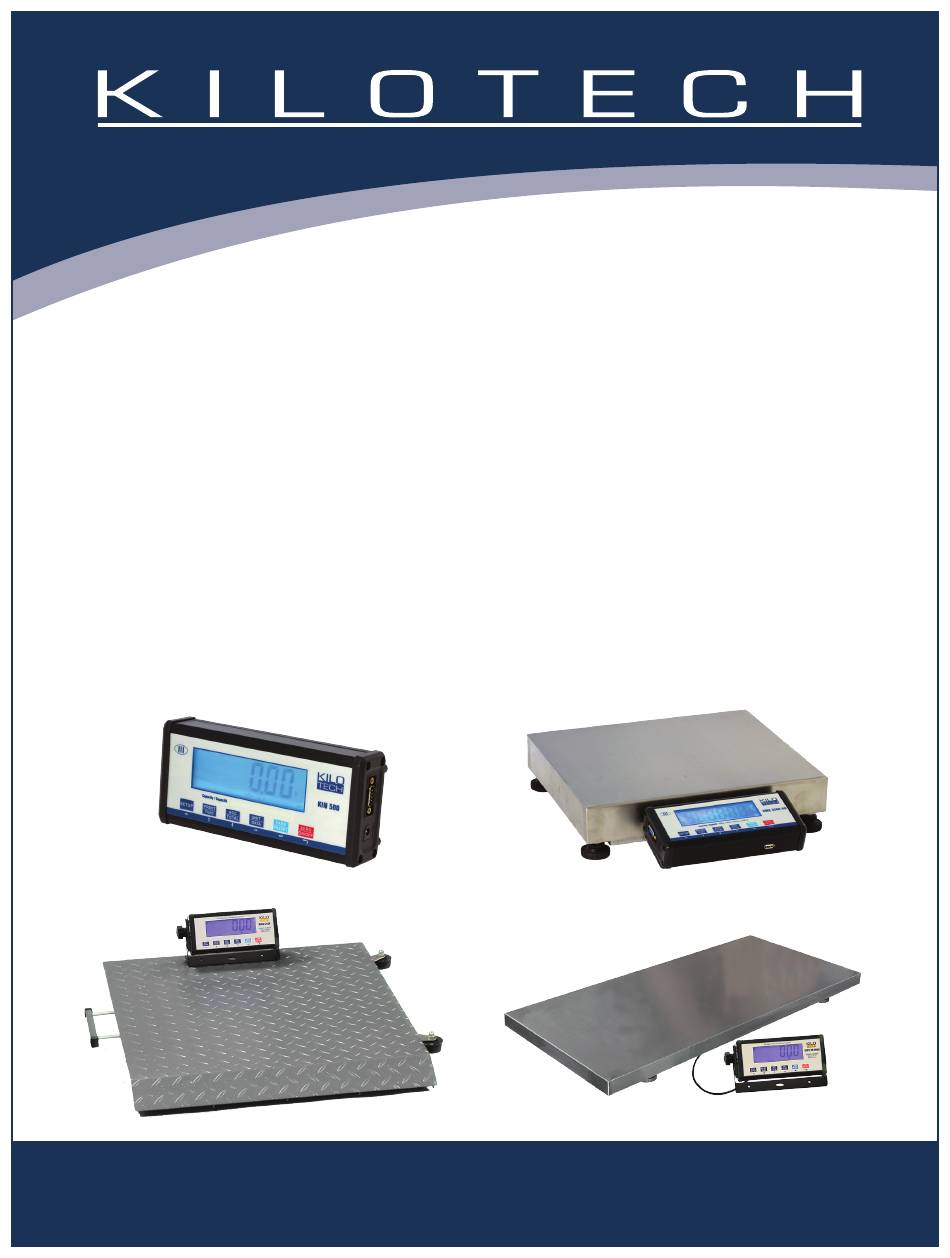

- Page 1 KIN 500 KWS 2200-15 / 30 / 60 KWS CY-60 / 150 / 300 KWS VET 250 MAN02212019 Contents subject to change without notice www.kilotech.com...
-
Page 2: Table Of Contents
Programming Symbols ........................ 12 Introduction Thank you for choosing a Kilotech Scale. We appreciate your business and hope that you will enjoy using your scale. Should you require Technical Support, please contact your local dealer from whom you have purchased. -
Page 3: General Precautions
Ensure that the scale is level A scale used on an uneven surface may provide an unstable reading Scale should be used within stated temperature & humidity limits KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 3 of 12... -
Page 4: Specifications
-10° C � 40° C / 14° F � 104° F / <90% RH non-condensing Humidity RS232 Checkweighing HI/LO/OK annunciate & alert buzzer AM 5898 Approved Measurement Canada CC 13-016 & NTEP Max 5000 count KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 4 of 12... -
Page 5: Specifications
-10° C � 40° C / 14° F � 104° F / <90% RH non-condensing Humidity Input RS232 Checkweighing HI/LO/OK annunciate & alert buzzer Approved Measurement Canada & NTEP KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 5 of 12... -
Page 6: Unpacking
There is no leveling bubble on KIN 500 Contents • Scale or indicator • 120 V AC to 6 V DC adapter • Manual KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 6 of 12... -
Page 7: Dimensions
10 seconds. AC Adapter: 6VDC 500mA, with central negative: KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 7 of 12... -
Page 8: Display & Keypad Definitions
Turn on when data compare is enable and current data (weight, pieces or percent) is below Turn on when battery is used or charged This function is not used on the Vet Scales KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 8 of 12... -
Page 9: Key Descriptions
It is used to transmit the data over the communication port. HOLD /SETUP Peak hold is used to keep the highest value on display when weighing a dynamic load (example: livestock). KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 9 of 12... -
Page 10: Summary Of Keys / Functions
ZERO ON/OFF Weighing/Counting/Percent, Power off press down > 3s Input data mode Ignore modification Menu selection mode Prepare to exit from current working mode KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 10 of 12... -
Page 11: Normal Weighing Mode
TARE key. Change Weight UNIT: Short press UNIT key to select kg, lb or lb:oz unit. Note that under some conditions, lb:oz is not available. KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 11 of 12... -
Page 12: Error Codes
Enter into COMPARE data mode HIGH Input HIGH value Input LOW value INP.PCS Input # of weighted goods UNIT.KG Unit kg is selected UNIT.LB Unit lb is selected KIN 500 KWS 2000 KWS CY KWS VET 250 Manual E 02212019, Page 12 of 12...
