3Com OfficeConnect 3C16771 User Manual page 43

The Internet Firewall is now functioning and protecting the
LAN from Internet-based attacks and break-ins. Internet
filtering is not yet enabled.
7 Reset the management station.
Change the IP settings for the management station back to
their original values. You may have to restart the
management station, depending on its operating system.
8 Review the status of the Internet Firewall.
a When the Internet Firewall has restarted, log in again
(see step
set up in
b From the Home screen, select Unit Status. A window
similar to

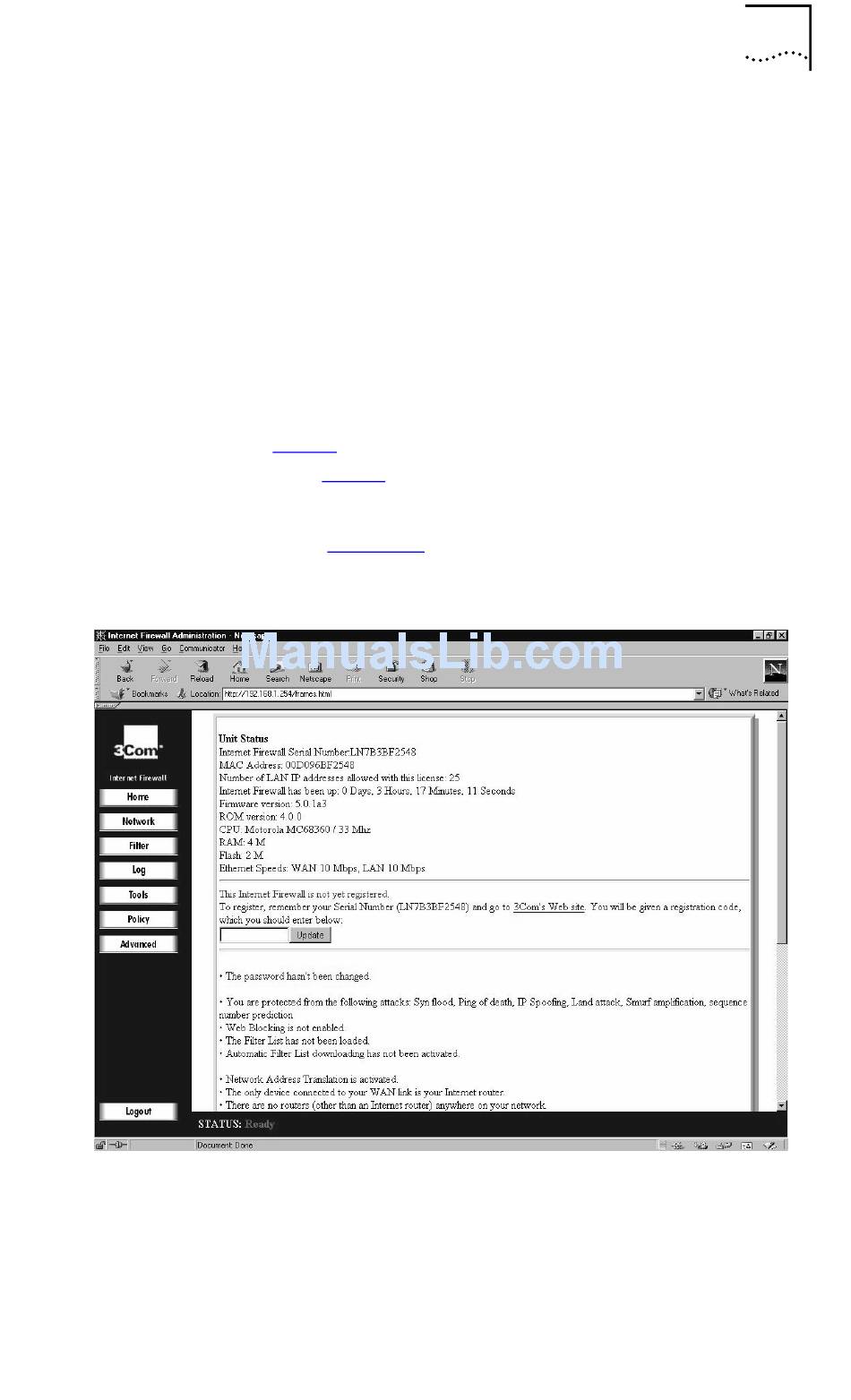

Figure 11 Unit Status window
The Status window displays the current status of the
Internet Firewall.
Any problems are listed in red text. For example, if the
Internet access device was not contacted, or the default
password was not changed, this is listed. Items listed in red
require immediate, corrective action.
Setting up the Internet Firewall
2) using the new administrator password you
step 4.
Figure 11 is displayed.
43
