Openplan Systems Evo 2.5 Overhead Binder Bin Installation Manual

Evo 2.5 Overhead Binder Bin
Installation Guide

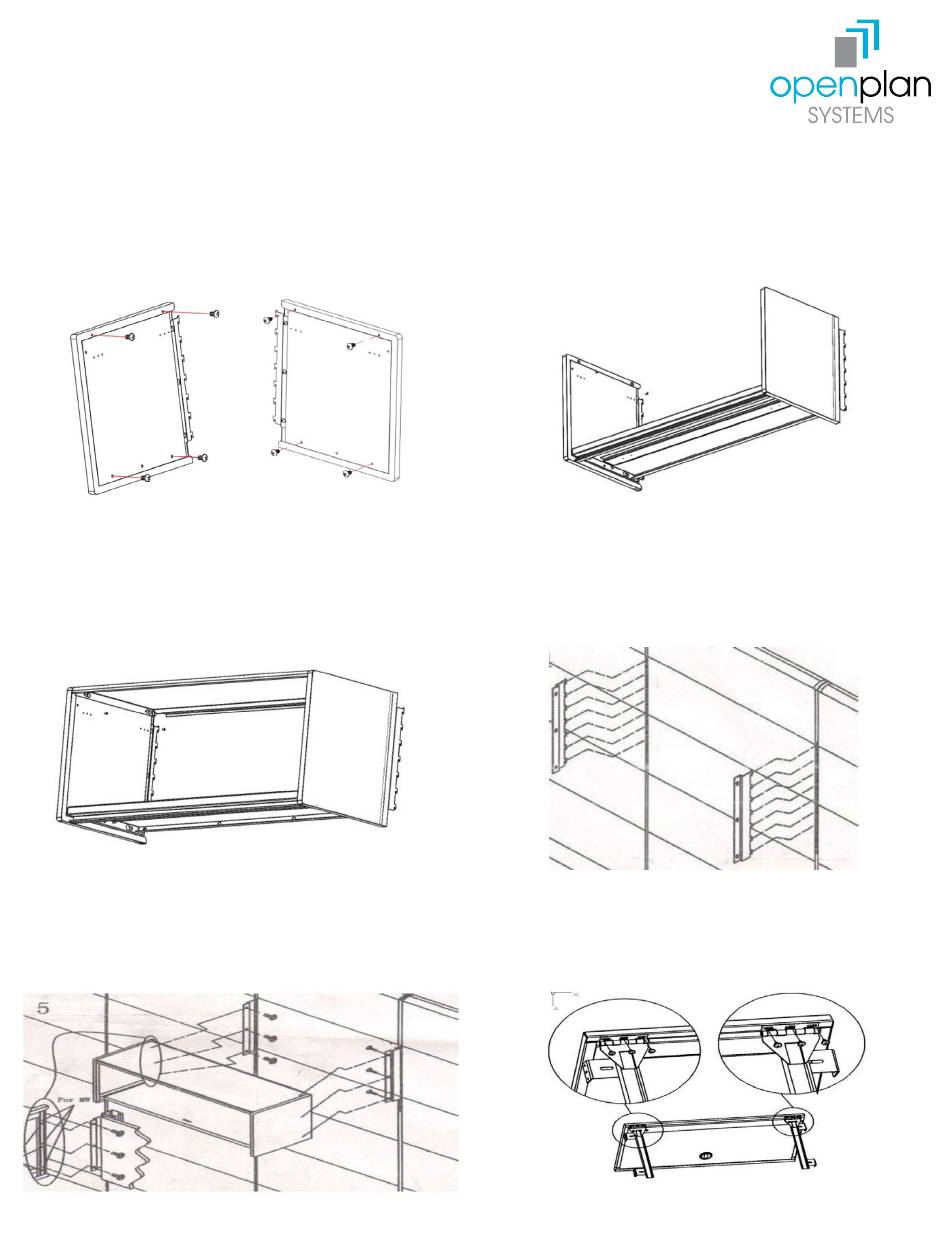

Step 1
1.1 Insert Screws #1 into the right/ left end bell.
1.2 Insert 1/3 of the total screw length.
Step 3
3.1 Insert Screws #1 into the hardy hole on the top shelf.
3.2 Push top shelf backward to position and tighten Screws #1.
Step 5
5.1 Match the position of the whole binder bin with the cantilever.
5.2 Tighten with 3 pieces of Screws #2 on each side.
www.openplan.com | sales@openplan.com | 844.OPS.OPS1 | REV 07.29.24
Step 2
2.1 Insert Screws #1 into the hardy hole on the bottom shelf.
2.2 Tighten Screws #1 to fix the bottom shelf with the end bells.
NOTE: Remember to safe 23mm space for door installation.
Step 4
4.1 Angle the top 2 way hook of the cantilever into the vertical
channel on the frame.
4.2 Rotate the rest of the teeth into position and depress the
entire cantilever to secure.
Step 6
6.1 Use the farthest side of oblong hole to connect sliders and
door connecting strip.
6.2 Tighten with Screws #3.
