PIAB Vacuplus MINI Manual

Safety
This section should be studied extra carefully before the product are put into
use. Take careful note of all warning signs.
Ensure that the components are properly secured. Regularly check that
connections are in good working order, as high cycles or vibrations may cause
them to loosen.
Warning!
Vacuum force
Warning!
Exhaust
Warning!
Unrestricted exhaust
Wear ear protection
This caution note only applies to the Ejector MINI 1x Di16-2.
Warranty
For terms and conditions of sales please visit www.piab.com
This manual is available in the following languages on piab.com:
CHINESE
ENGLISH JAPANESE
FRENCH KOREAN
GERMAN
Manufacturer
Piab AB
P.O. Box 146
SE-18212 DANDERYD
SWEDEN
ITALIAN PORTUGUESE
RUSSIA
SPANISH
POLISH SWEDISH
Manual

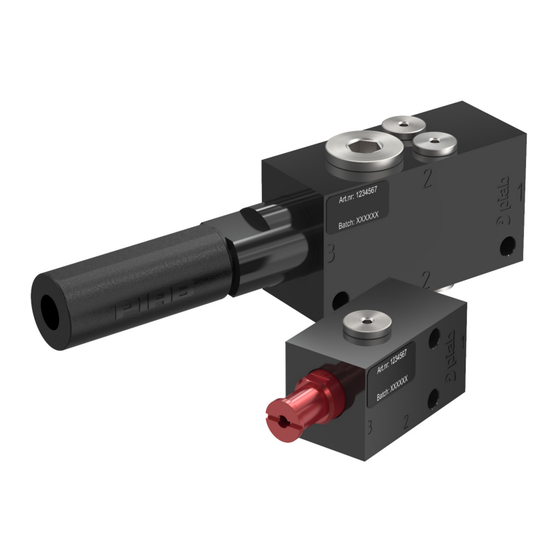

Vacuplus ejectors
MINI, MINI Slim, MIDI, MIDI 2
The Vacuplus ejector family
0223806 Ejector MINI Slim 1x Pi12-2
0223807 Ejector MINI Slim 1x Si08-2
0224168 Ejector MINI Slim 1x Si08-2 A
0223808 Ejector MINI Slim 1x Xi10-2
0224169
Ejector MINI Slim 1x Xi10-2 A
0223777 Ejector MINI 1x Di16-2
0223778 Ejector MINI 1x Pi12-2
0223779 Ejector MINI 1x Pi12-2 A
0223780
Ejector MINI 1x Si08-2
0224166 Ejector MINI 1x Si08-2 A
0223781 Ejector MINI 1x Xi10-2
0223782 Ejector MINI 1x Xi10-2 A
0223784
Ejector MIDI 1x Pi48-2
0223785 Ejector MIDI 1x Pi48-2 A
0223786 Ejector MIDI 1x Si32-2
0223787 Ejector MIDI 1x Si32-2 A
0223788 Ejector MIDI 1x Xi40-2
0223789 Ejector MIDI 1x Xi40-2 A
0223798 Ejector MIDI 2x Pi48-2
0223799 Ejector MIDI 2x Pi48-2 A
0223800
Ejector MIDI 2x Si32-2
0223801 Ejector MIDI 2x Si32-2 A
0223802 Ejector MIDI 2x Xi40-2
0223803 Ejector MIDI 2x Xi40-2 A
Recycling and disposal
Environmental aspects are considered in the development process of Piab's
products to make sure that a minimal environmental footprint is used. Piab is
certified against ISO-14001. Piab also complies with:
•
RoHS (2011/65/EU)
• REACH (EC 1907/2006)
The ways of handling recycling and disposals vary from country to country,
and therefore this process needs to be in full compliance with each national
regulation. If possible, disassemble the product into its various components.
Batteries, electrical and electronic equipment should be handed over to an
authorized body for disposal, as well as the metal parts. All other parts can
either be recycled or assorted as waste.
