StarTech.com SDOCK2U33HFB Instruction Manual

Instruction Manual

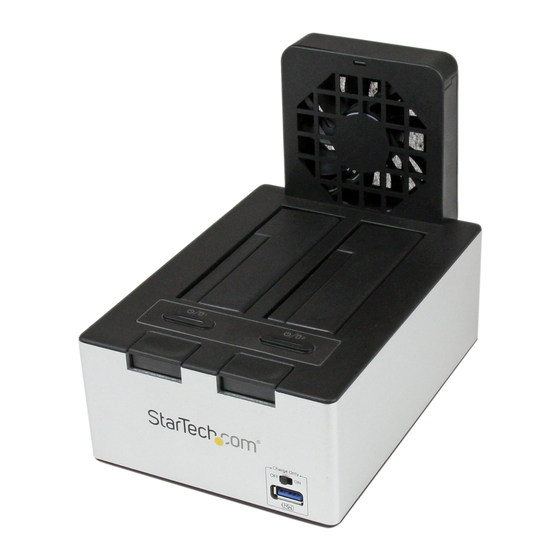

USB 3.0 to 2.5/3.5in SATA HDD Dock with USB Hub
SDOCK2U33HFW / SDOCK2U33HFB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x HDD Dock
• 1x USB 3.0 Cable
• 1x Instruction Manual
• 1x Universal Power Adapter
• 3x Power Cords (NA/UK/EU)
System Requirements
• USB enabled computer system with available USB port
• Available AC electrical outlet
• Microsoft® Windows® XP/ Server 2003/ Vista/ Server 2008 R2/ 7/ 8
(32/64-bit), or Apple® Mac OS® X, or Linux®
WARNING! Hard drives and storage docks require careful handling,
especially when being transported. If you are not careful with
your hard disk, lost data may result. Always handle your hard drive
and storage device with caution. Be sure that you are properly
grounded by wearing an anti-static strap when handling computer
components or discharge yourself of any static electricity build-up
by touching a large grounded metal surface (such as the computer
case) for several seconds.
Hardware Installation
1. Connect the included power adapter from an available AC
power outlet to the Power Adapter Port on the back of the
SDOCK2U33HFW/B
2. Connect the included USB 3.0 cable from the USB Port 3.0 port on
the SDOCK2U33HFW /B your computer system.
3. Connect the 2.5" or 3.5" HDDs you would like to dock into the
Hard Drive Docking Ports.
4. Press the power buttons in front of the drives, the drives installed
in the SDOCK2U33HFW /B are now ready to use.
For the most up-to-date information, please visit: www.startech.com
Hard Drive
Slot 1
Hard Drive Slot 1
Power Button
USB Hub Port 1/
Fast Charging
Port
USB 3.0
Port
Power
Adapter
Port
Hard Drive Fan
Hard Drive
Slot 2
Hard Drive Slot
2 Power Button
Charge Switch
*actual product may vary from photos
Fan Speed
Control
USB Hub Power
Port 2
Management
Switch
Manual Revision: 08/25/2014
