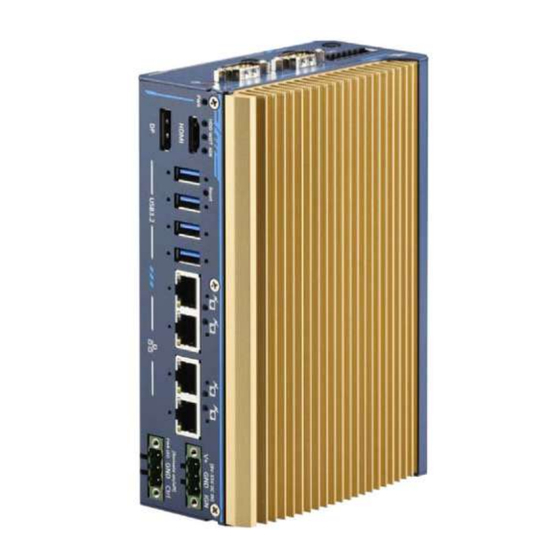

- Page 1 Neousys Technology Inc. POC-700 Series User Manual Revision 1.1...
-
Page 2: Table Of Contents
Table of Content Table of Contents Table of Contents ........................2 Legal Information ........................4 Contact Information ....................... 5 Declaration of Conformity ..................... 5 Copyright Notice ........................6 Safety Precautions ......................... 7 Service and Maintenance ...................... 8 ESD Precautions ........................8 About This Manual ......................... - Page 3 Table of Content Horizontal Wall Mount Installation (Optional) ............64 3.5.1 Vertical Wall Mount Bracket (Optional) .............. 66 Fan Kit Installation (Optional) .................. 67 Powering On the System ..................69 3.7.1 Powering On Using the Power Button ............... 69 3.7.2 Powering On Using An External Non-Latched Switch ........
-
Page 4: Legal Information
For questions in regards to hardware/ software compatibility, customers should contact Neousys Technology Inc. sales representative or technical support. To the extent permitted by applicable laws, Neousys Technology Inc. shall NOT be responsible for any interoperability or compatibility issues that may arise when (1) products, software, or options not certified and supported;... -
Page 5: Contact Information
3384 Commercial Avenue, Northbrook, IL 60062, USA (Illinois, USA) Tel: +1-847-656-3298 Email, Website China Neousys Technology China Co., Ltd. Room 612, Building 32, Guiping Road 680, Shanghai Tel: +86-2161155366 Email, Website Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 6: Copyright Notice
Disclaimer to change without prior notice. It does not represent commitment from Neousys Technology Inc. Neousys Technology Inc. shall not be liable for any direct, indirect, special, incidental, or consequential damages arising from the use of the product or documentation, nor for any infringement on third party rights. -
Page 7: Safety Precautions
Safety Precautions Safety Precautions Read these instructions carefully before you install, operate, or transport the system. Install the system or DIN rail associated with, at a sturdy location Install the power socket outlet near the system where it is easily accessible ... -
Page 8: Service And Maintenance
Service and Maintenance/ ESD Precautions Service and Maintenance ONLY qualified personnel should service the system Shutdown the system, disconnect the power cord and all other connections before servicing the system When replacing/ installing additional components (expansion card, memory module, etc.), insert them as gently as possible while assuring proper connector engagement ESD Precautions... -
Page 9: About This Manual
POC-500 About This Manual This manual introduces and demonstrates installation procedures of Neousys POC-700 series systems featuring an Intel® Core™ i3-N305 or Atom® x7425e processor. The manual also demonstrates the system’s general installation procedures. Revision History Version Date Description Oct. 2023 Initial release Apr. -
Page 10: Introduction
POC-700 Series Introduction POC-700 is Neousys’ next-generation ultra-compact embedded controller, with a choice of the latest Intel Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series. Neousys POC-700 is powered by Intel’s Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics or Atom®... -
Page 11: Specification Of Poc-715
POC-700 Series Specification of POC-715 System Core Intel® Alder Lake CoreTM i3-N305 processor (8C/8T, 1.8/3.8 GHz, Processor 15W TDP) Graphics Integrated Intel® HD Graphics with 32EUs Memory Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) Supports dTPM 2.0 Panel I/O Interface Ethernet 4x Gb Ethernet ports by Intel®... - Page 12 POC-700 Series Operating -25°C to 70°C* temperature Storage -40°C to 85°C temperature Humidity 10% to 90% , non-condensing MIL-STD-810H, Method 514.8, Category 4 Vibration Shock MIL-STD-810H, Method 516.8, Procedure I CE/ FCC Class A, according to EN 55032 & EN 55035 UL 62368-1, IEC 62368-1 (UL series only) Safety * For sub-zero and over 60°C operating temperature, a wide temperature Solid State...
-
Page 13: Specification Of Poc-712
POC-700 Series Specification of POC-712 System Core Processor Intel® Atom® x7425E Integrated Intel® HD Graphics 24EUs Graphics Memory Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) Supports dTPM 2.0 Panel I/O Interface Ethernet 4x Gb Ethernet ports by Intel® I350-AM4 Native Video 1x DP++, Supporting 4096 x 2160 resolution @60Hz Port... - Page 14 POC-700 Series temperature Humidity 10% to 90% , non-condensing MIL-STD-810H, Method 514.8, Category 4 Vibration Shock MIL-STD-810H, Method 516.8, Procedure I CE/ FCC Class A, according to EN 55032 & EN 55035 UL 62368-1, IEC 62368-1 (UL series only) Safety * For sub-zero and over 60°C operating temperature, a wide temperature Solid State Disk (SSD) is required.
-
Page 15: Dimension Of Poc-700
POC-700 Series Dimension of POC-700 NOTE All measurements are in millimeters (mm). 1.3.1 Front Panel View... -
Page 16: Reserved Panel View
POC-700 Series 1.3.2 Reserved Panel View 1.3.3 COM Port Panel View... -
Page 17: Bottom View
POC-700 Series 1.3.4 Bottom View... -
Page 18: System Overview
Upon receiving and unpacking your POC-700 systems, please check immediately if the package contains all the items listed in the following table. If any item(s) are missing or damaged, please contact your local dealer or Neousys Technology. Unpacking the System... -
Page 19: Poc-700 Series Front Panel
POC-700 Series POC-700 Series Front Panel The front panel of POC-700 series features four PoE+ Gigabit Ethernet ports, four USB 3.1 Gen1 ports, one DisplayPort, one VGA port, remote control and 3-pin terminal block for DC input. Item Description System LEDs, Hard Disk Drive (HDD), Watchdog Timer System status LED (WDT), Ignition control (IGN). -
Page 20: System Status Led
POC-700 Series 2.2.1 System Status LED There are three LED indicators on the front panel: HDD, WDT and IGN. The descriptions of these LEDs are listed in the following table. Indicator Color Description Green Power indictor, lit when system is on. Hard drive indicator, flashing when SATA HDD is active Yellow Watchdog timer indicator, flashing when watchdog timer has started... -
Page 21: Hdmi
POC-700 Series 2.2.2 HDMI The High-Definition Multimedia Interface (HDMI) port provides uncompressed high-quality digital video and audio transmission between the system and a multimedia display device on a single cable. You can connect to other digital inputs by using a HDMI-to-DVI or HDMI-to-DP cable. HDMI-to-DP The system supports dual independent display outputs by connecting display devices to HDMI and DisplayPort connection. -
Page 22: Displayport
POC-700 Series 2.2.3 DisplayPort The system has a DisplayPort (DP) output which is a digital display interface that mainly connect video source and carry audio to a display device. When connecting a DP, it can deliver up to 4K UHD (4096 x 2160 @ 60Hz) in resolution. The system is designed to support passive DP adapter/ cable. -
Page 23: Reset Button
POC-700 Series 2.2.4 Reset Button The reset button is used to manually reset the system in case of system halt or malfunction. To avoid unexpected reset, the button is purposely placed behind the panel. To reset, please use a pin-like object (eg. tip of a pen) to access the reset button 2.2.5 USB3.2 Gen2x1 Port... -
Page 24: Ieee 802.3At Power Over Ethernet Port
POC-700 Series 2.2.6 IEEE 802.3at Power over Ethernet Port The system offers four Gb Ethernet ports via Intel® I350-AM4 and is backward compatible with 100/ 10Mb connection speeds. The Gigabit Power over Ethernet (PoE) port is only available on POC-715 system that can supply power and data on a standard CAT-5/CAT-6 Ethernet cable. -
Page 25: 3-Pin Terminal Block For Dc Input (Optional Ignition Input)
POC-700 Series 2.2.7 3-pin Terminal Block for DC Input (Optional Ignition Input) The system accepts a wide range of DC power input from 8V to 35V or 12V to 35V (UL series) via a 3-pin pluggable terminal block, which is fit for field usage where DC power is usually provided. -
Page 26: 3-Pin Remote On/ Off
POC-700 Series 2.2.8 3-pin Remote On/ Off The “Remote On/ Off” 3-pin connection allows for external switch extension. It is useful when the system is placed in a cabinet or a not easily accessed location. You may connect an external remote with an external status LED indicator (15mA) by connecting to PWR LED and GND. -
Page 27: Dio/ Com Port Panel
POC-700 Series DIO/ COM Port Panel The COM port panel of POC-700 series features additional I/O functions, such as digital input/ output, COM ports, and reserved antenna openings for SMA antenna installation. In addition, the power button can also be located on this panel. Item Description 4 channel isolated digital input... -
Page 28: Digital Input/ Output
POC-700 Series 2.3.1 Digital Input/ Output The system provides 4x isolated digital input channels and 4x isolated digital output channels. The DIO functions support polling mode I/O access and DI change-of-state interrupt. Please refer to Watchdog Timer & Isolated DI information on wiring and programming the isolated DIO channels. - Page 29 POC-700 Series Wiring for DIO The digital input function is implemented using a photo-coupler with an internally series-connected 1kΩ resistor. You need to provide a voltage to specify the logic high/low state. The input voltage for logic high is 5~24V, and the input voltage for logic low is 0~1.5V.
-
Page 30: Com 1 Port
POC-700 Series 2.3.2 COM 1 Port Implemented using industrial-grade ITE8786 Super IO chip (-40 to 85°C) and provide up to 921600 bps baud rate, COM1 is a software-configurable RS-232/422/485 port via 9-pin D-Sub male connector. The operation mode, slew rate and termination of COM1 can be set in BIOS setup utility. -
Page 31: Com Port (Com2/ Com3/ Com4)
POC-700 Series 2.3.3 COM Port (COM2/ COM3/ COM4) Implemented using industrial-grade ITE8786 Super IO chip (-40 to 85°C) and provide up to 921600 bps baud rate, the D-Sub male connector (COM2/ 3/ 4) can be configured in the BIOS as single RS-422/ 485 port (COM2) or three 3-wire RS-232 ports (COM2/COM3/COM4). -
Page 32: Power Button
POC-700 Series 2.3.4 Power Button The power button is a non-latched switch for ATX mode on/off operation. Press to turn on the system, PWR LED should light up and to turn off, you can either issue a shutdown command in the OS, or just press the power button. In case of system halts, you can press and hold the power button for 5 seconds to force-shutdown the system. -
Page 33: Sma Antenna Opening
POC-700 Series 2.3.5 SMA Antenna Opening The system offers three SMA antenna openings reserved for SMA antenna installations. Users can take advantage of these three openings when installing mini-PCIe module for wireless communication reception such as 3G, 4G, GPS or WiFi. -
Page 34: Cmos Reset Button
POC-700 Series CMOS Reset Button Positioned on the rear panel (opposite the IO panel), indicated by the blue arrow, the CMOS Reset button is used to manually reset the motherboard BIOS in case of system halt or malfunction. To avoid unexpected operation, it is purposely placed behind the panel. -
Page 35: Reserved Port Opening Panel
POC-700 Series Reserved Port Opening Panel The reserved port opening panel has reserved openings for DIO or extra COM ports. Choose from a wide range Neousys' MezIO modules and find one that best suit your needs. -
Page 36: Internal I/O
POC-700 Series Internal I/O The system’s internal I/O connectors consist of an mini-PCIe slot with SIM slot, an M.2 slot for NVMe SSD, SO-DIMM socket, slot and a MezIO port for application-oriented expansion purposes. 2.6.1 Full-size mini-PCIe Slot and SIM Socket The system provides a full-size mini-PCIe socket (indicated in blue) designed with SIM card (indicated in red) support. - Page 37 POC-700 Series mini-PCIe Pin Definition Pin # Signal Pin # Signal WAKE# +3.3Vaux COEX1 COEX2 +1.5V CLKREQ# UIM PWR UIM DATA REFCLK- UIM CLK REFCLK+ UIM RESET UIM VPP Mechanical Key Reserved* (UIM C8) Reserved* (UIM C4) W DISABLE# PERST# PERn0 +3.3Vaux PERp0...
-
Page 38: 2280 (M Key) Slot For Ssd
POC-700 Series 2.6.2 M.2 2280 (M Key) Slot for SSD The system has an M key M.2 2280 slot supporting PCIe Gen3 x1 signal for NVMe SSD storage, and it also supports SATA signal for SATA SSD. Users can install an SSD for improved disk read/ write performance over mechanical hard drives or 2.5”... - Page 39 POC-700 Series M.2 (M Key) Slot Pin Definition Pin # Signal Pin # Signal +3V3 +3V3 PERN3 PERP3 DAS/DSS_N PETN3 +3V3 PETP3 +3V3 +3V3 PERN2 +3V3 PERP2 PETN2 PETP2 PERN1 PERP1 PETN1 PETP1 PERn0 / SATA-B+ PERp0 / SATA-B- PETn0 / SATA-A- PETp0 / SATA-A+ PERST N CLKREQ...
-
Page 40: So-Dimm Socket
POC-700 Series 2.6.3 SO-DIMM Socket The system supports one SO-DIMM socket for installing DDR5-4800 memory module up to 16GB in capacity. -
Page 41: Mezio Interface
POC-700 Series ® MezIO Interface ® MezIO is an innovative interface designed for integrating application-oriented I/O functions into an embedded system. It offers computer signals, power rails and ® control signals via a high-speed connector. MezIO is also mechanically reliable ®... -
Page 42: Mezio Interface Pin Definition
POC-700 Series ® 2.7.1 MezIO Interface Pin Definition ® ® MezIO interface leverages FCI BERGSTAK board-to-board connector to provide interconnectivity of high-speed signals. The receptacle part on the PCBA is FCI ® 61082-063402LF while the plug part on the MezIO module is FCI 61083-064402LF. -
Page 43: Mezio Modules For Poc-700 Series
POC-700 Series ® 2.7.2 MezIO Modules for POC-700 Series ® Neousys offers MezIO modules to expand I/O functions for Neousys systems. With ® the addition of a MezIO module into your system, it offers extra RS-232/ 422/ 485 ports, isolated digital I/ O, 2.5” HDD/ SSD accommodation or ignition power control. Model Description MezIO-R11... -
Page 44: System Installation
POC-700 Series System Installation Before disassembling the system enclosure and installing components and modules, please make sure you have done the following: It is recommended that only qualified service personnel should install and service this product to avoid injury or damage to the system. ... -
Page 45: Disassembling The System Enclosure
POC-700 Series Disassembling the System Enclosure To install internal components such as M.2 SSD, memory module, mini-PCIe or ® MezIO module, you need to disassemble the system enclosure. Please refer to the following procedures: Remove the three (3) screws on the front I/O panel. Remove the three (3) screws. - Page 46 POC-700 Series Remove the two (2) screws on the read panel. Remove the four (4) hex bolt screws on the DIO/ COM port panel. Separate the IO and bottom panel from the system Remove front IO panel Remove bottom panel...
- Page 47 POC-700 Series Unscrew the two (2) screws to remove the DRAM/ M.2 heat spreader. With external panels and DRAM/ M.2 heat spreader removed, you are ready to install internal components. Reinstall the enclosure when done.
-
Page 48: Installing Internal Components
POC-700 Series Installing Internal Components 3.2.1 DDR5 SO-DIMM Installation There is one SO-DIMM memory slot on the motherboard. Please follow the procedures below to install the memory module. Disassemble the system enclosure. 2. Locate the SO-DIMM slot on the motherboard shown once the enclosure and heat spreader have been removed. - Page 49 POC-700 Series 4. Remove the protection film on the thermal pad. 5. Secure the DRAM/ M.2 heatsink spreader onto the side of the system heatsink. Reinstall the enclosure when done.
-
Page 50: 2880 M Key Ssd Installation
POC-700 Series 3.2.2 M.2 2880 M Key SSD Installation There is one M.2 2280 M Key slot for you to install an SSD. Please follow the procedures below to install the M.2 SSD module. Disassemble the system enclosure. 2. Located the M.2 2280 M Key slot once the system enclosure and heat spreader have been removed. - Page 51 POC-700 Series 4. Gently push it towards the motherboard and secure the NVMe SSD with the supplied screw. 5. Once you have installed the NVMe SSD, you need to reinstall the heat spreader but before you do so, please make sure the protective film on the thermal pads have been removed.
-
Page 52: Mini-Pcie Module, Sim Card And Antenna Installation
POC-700 Series 3.2.3 mini-PCIe Module, SIM Card and Antenna Installation There are mini-PCIe with SIM slots on MezIO module and the motherboard. Please follow the procedures below to install the mini-PCIe module and SIM card, as well as the antenna for wireless communication. Disassemble the system enclosure. - Page 53 POC-700 Series 4. Flip the holder back onto the SIM card and push in the direction shown to lock-in the SIM card into the slot. 5. To install, insert mini-PCIe module’s gold finger on a 45 degree angle into the socket, gently press the module down and secure it with a screw.
- Page 54 POC-700 Series 6. Clip-on mini-PCIe module’s antenna (please refer to the module’s user manual on antenna cable connection). 7. Remove one of the antenna covers from the enclosure.
- Page 55 POC-700 Series 8. Secure the SMA antenna connector, reinstall the enclosur and attach the external SMA antenna. Securing antenna connection Attach external antenna Reinstall the enclosure when done.
-
Page 56: Mezio ® Module Installation
POC-700 Series ® 3.2.4 MezIO Module Installation ® The MezIO module is situated above the heat spreader. Please make sure that you have installed the memory module, mini-PCIe, SIM card, NVMe SSD before ® ® installing the MezIO module. To install the MezIO module, please refer to the following procedure. - Page 57 POC-700 Series 4. Remove the screws indicated and replace with stand-off hex bolt screws. Hex bolt screw locations Stand-off hex bolt screws...
- Page 58 POC-700 Series 5. Gently lower the module onto the motherboard. Install the panel that came with ® the MezIO module you ordered by securing the screw indicated. Remove the corresponding punch out plates (may Secure the screw ® differ depending on your MezIO module) 6.
-
Page 59: Installing The System Enclosure
POC-700 Series Installing the System Enclosure Install the bottom/ rear enclosure panel Install the front panel and securing it with three (3) screws. - Page 60 POC-700 Series Secure the bottom and rear panel with screws. Bottom panel screws Rear panel screws Secure the hex bolt screws on the DIO/ COM port panel to complete the enclosure installation.
-
Page 61: Din Rail Installation
POC-700 Series DIN Rail Installation The system comes with a DIN rail clip (in the accessory box) that allows the system to be mounted vertically. To install, secure the DIN rail clip (indicated in red) to the rear side panel of the system enclosure using the M4 screws (indicated in blue) provided. - Page 62 POC-700 Series To install the DIN rail clip onto the DIN rail, you must come over the top of the DIN rail, tilting, overlap the top clip edge of the DIN rail clip onto the DIN rail first, and then firmly press the bottom-front of the enclosure to clip the bottom edge of the mount plate.
- Page 63 POC-700 Series Confirm the mount plate has indeed clipped onto the DIN rail for proper fit to complete the installation.
-
Page 64: Horizontal Wall Mount Installation (Optional)
POC-700 Series Horizontal Wall Mount Installation (Optional) The optional horizontal wall mount bracket allows the system to be mounted horizontally. Please refer to the following installation procedure: Remove the rubber stands to access the M4 tapping (indicated in green). To install, secure the wall mount bracket (indicated in red) to the bottom of the system enclosure using the M4 screws (indicated in blue) provided. - Page 65 POC-700 Series Dimension illustration of the installed horizontal wall mount bracket for your reference.
-
Page 66: Vertical Wall Mount Bracket (Optional)
POC-700 Series 3.5.1 Vertical Wall Mount Bracket (Optional) To install, secure the vertical wall mount bracket (indicated in red) to the rear panel of the system using the M4 screws provided (indicated in blue). Dimension illustration of the install vertical wall mount bracket for you reference. -
Page 67: Fan Kit Installation (Optional)
POC-700 Series Fan Kit Installation (Optional) The system comes with an optional fan kit for the system to operate in specific environments. To install the optional fan kit, please refer to the following procedure. Place the fan on top of the system’s heatsink and secure it with the screws (on front and rear panels) and beware of the orientation of the fan as the fan’s power cable must within reach of the 4-pin fan power connector (on the rear panel). - Page 68 POC-700 Series Remove the punch-out panel, insert and connect the power cable. Remove the punch-out panel Insert and connect the fan’s power cable Once the power cable is connected, place the supplied cable cover over the power cable and secure it with screws indicated to complete the installation.
-
Page 69: Powering On The System
POC-700 Series Powering On the System There are three methods to power on the system Pressing the power button Via an external non-latched switch Sending a LAN packet via Ethernet (Wake-on-LAN) 3.7.1 Powering On Using the Power Button This is the simplest way to turn on your system. -
Page 70: Powering On Using An External Non-Latched Switch
POC-700 Series 3.7.2 Powering On Using An External Non-Latched Switch If your application demands the system to be placed inside a cabinet, you may use an external non-latched switch to power on/ off the system. The system provides a 3-pin “Remote On/ Off” plug for connecting a non-latched switch and acts as the ATX-mode power on/off control switch. -
Page 71: Powering On Using Wake-On-Lan
POC-700 Series 3.7.3 Powering On Using Wake-on-LAN Wake-on-LAN (WOL) is a mechanism to wake up a computer system from a S3 (standby), S4 (Hibernate) or S5 (system off with standby power) state via issuing Subnet Directed Broadcasts (SDB) or a magic packet. The system implements the Wake-on-LAN function for the GbE ports highlighted in blue, shown below. - Page 72 POC-700 Series Click the Power Management tag, and check the following two options accordingly Wake on Magic Packet The system can wake from S3 or S4 state when receiving a magic packet. The magic packet is a broadcast frame containing anywhere within its payload 6 bytes of all 255 (FF FF FF FF FF FF in hexadecimal), followed by sixteen repetitions of the target computer's 48-bit MAC address.
- Page 73 POC-700 Series 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C 78 D0 04 0A 0B 0C MISC There are some free tools available on Internet that can be used to send a magic packet.
-
Page 74: Bios Settings
POC-700 Series BIOS Settings The system is shipped with factory-default BIOS settings optimized for best performance and compatibility. In this section, we’ll illustrate some BIOS settings you may need to set or change prior to operating system installation. Please always make sure you understand the effect of change before you proceed with any changes. -
Page 75: Com1 Port Configuration
POC-700 Series COM1 Port Configuration The system’s COM1 port support RS-232 (full-duplex), RS-422 (full-duplex) and RS-485 (half-duplex) mode. You can set the COM1 operating mode via BIOS settings. The option in the BIOS setting called “Slew Rate” defines how sharp the rising/falling edge is for the output signal of COM1. -
Page 76: Com 2/ 3/ 4 Port Configuration
POC-700 Series COM 2/ 3/ 4 Port Configuration The system’s COM 2/ 3/ 4 ports support RS-232 (full-duplex). When set to RS-422/485 mode, it will only act as COM2 port only. To enable COM/ 3/ 4 operating mode: Press F2 when the system boots up to enter the BIOS setup utility. Go to [Advanced] ... -
Page 77: Com Port High Speed Mode
POC-700 Series COM Port High Speed Mode The high speed mode of each COM port effectively allows for the port's baud rate generator to operate at 8x the speed with an effective baud rate of 921,600 bps (115,200 x 8). Please refer to the following instructions on how to enable the high speed mode for your COM port (COM1 used as an example). -
Page 78: Tpm Availability
POC-700 Series TPM Availability Trusted Platform Module (TPM) is a hardware-based cryptoprocessor to secure hardware by integrating cryptographic keys into devices. The system is designed with on-board TPM 2.0 module. It is enabled in the BIOS by default. To enable TMP availability: When system boots up, press F2 to enter BIOS setup utility. -
Page 79: Power Over Ethernet (Poe)
POC-700 Series Power over Ethernet (PoE) The Power over Ethernet (PoE) setting in the BIOS allows you to enable/ disable the PoE function of the designated port upon system boot up. To enable/ disable Power over Ethernet settings: Press F2 when the system boots up to enter the BIOS setup utility. Go to [Power] ... -
Page 80: Wake-On-Lan
POC-700 Series Wake-on-LAN Wake-on-LAN (WOL) is a mechanism which allows you to turn on your system via Ethernet connection. To utilize Wake-on-LAN function, you have to enable this option first in BIOS settings. Please refer to Powering on via Wake-on-LAN function. To enable/ disable “Wake on LAN”... -
Page 81: C-States
POC-700 Series C-States Intel processors utilize C-States to regulate the power-draw and operating frequency of each core. By enabling this function, it allows BIOS to reduce the operating frequency, power-draw, or both of the idle processor core for the system to operate more efficiently. - Page 82 POC-700 Series Highlight “C states” and press ENTER, set to “Enabled” and press ENTER. Press F10 to “Save and Exit”.
-
Page 83: Power On After Power Failure
POC-700 Series Power On after Power Failure This option defines the system’s behavior when DC power is supplied. Value Description S0 – Power On System is powered on when DC power is supplied. S5 – Power Off System is kept in off state when DC power is supplied. When you want to use the AT-mode remote on/ off control function, you have to set this option to “S0 –... -
Page 84: Boot Menu
POC-700 Series Boot Menu The Boot menu in BIOS allows you to specify the system’s boot characteristics by setting bootable device components (boot media) and method. Or, you may press F12 upon system start up and select a device you wish boot from. Value Option Description... - Page 85 POC-700 Series Newly detected boot media are placed at the top Add Boot Options First of the boot order. Newly detected boot media are placed at the Last bottom of the boot order. Newly detected boot media order will be Auto automatically detected and placed in boot order.
-
Page 86: 4.10 Position New Boot Device
POC-700 Series 4.10 Position New Boot Device The “Add Boot Options” allow you to determine whether a newly added device (eg. USB flash disk) is to boot as the first device to boot or the last in the boot sequence. To set the newly-installed boot device as the first or last boot device: Press F2 when the system boots up to enter the BIOS setup utility. -
Page 87: 4.11 Watchdog Timer
POC-700 Series 4.11 Watchdog Timer The watchdog timer secures the boot process by means of a timer. Once the timer expires, a reset command is issued to initiate another booting process. There are two options in BIOS menu, “Automatically after POST” and “Manually after Entering OS”. -
Page 88: Os Support And Driver Installation
Operating System Compatibility The system supports most operating system developed for Intel® x86 architecture. The following list contains the operating systems which have been tested by Neousys Technology. Microsoft Window 10 LTSC 2021 (x64) Microsoft Windows 11 IoT Enterprise 22H2 64-bit ... -
Page 89: Driver Installation
POC-700 Series Driver Installation The system drivers are available online, please click on this link to download the drivers. Driver Installation for Watchdog Time Control Neousys provides a driver package which contain function APIs for Watchdog Timer control function. You should install the driver package (WDT_DIO_Setup.exe) in prior to use these functions. -
Page 90: Appendix A Using Wdt & Dio
In this section, we’ll illustrate how to use the function library provided by Neousys to program the WDT functions. Currently, WDT driver library supports Windows 10 x64 and WOW64 platform. For other OS support, please contact Neousys Technology for further information. -
Page 91: Wdt And Dio Library Installation
POC-700 Series WDT and DIO Library Installation WDT_DIO_Setup.2.4.0.0.exe will be used as an example to demonstrate WDT & DIO Library installation setup process. Please refer to the instructions below. 1. Execute WDT_DIO_Setup.2.4.0.0.exe. 2. Click “Next >” and specify the directory of installing related files. The default directory is C:\Neousys\WDT_DIO. - Page 92 POC-700 Series 3. Once the installation has finished, a dialog will appear to prompt you to reboot the system. The WDT & DIO library will take effect after the system has rebooted. 4. When programming your WDT or DIO program, the related files are located in Header File: \Include Library File:...
-
Page 93: Wdt Function Reference
POC-700 Series WDT Function Reference InitWDT Syntax BOOL InitWDT(void); Description: Initialize the WDT function. You should always invoke InitWDT() before set or start watchdog timer. Parameter None Return Value TRUE: Successfully initialized FALSE: Failed to initialize Usage BOOL bRet = InitWDT() SetWDT Syntax BOOL SetWDT(WORD tick, BYTE unit);... -
Page 94: Startwdt
POC-700 Series StartWDT Syntax BOOL StartWDT(void); Description Starts WDT countdown. Once started, the WDT LED indicator will begin blinking. If ResetWDT() or StopWDT is not invoked before WDT countdowns to 0, the WDT expires and the system resets. Parameter None Return Value f the timeout value is given in correct format (WDT started), this function returns TRUE, otherwise FALSE... -
Page 95: Dio Functions
POC-700 Series DIO Functions InitDIO Syntax BOOL InitDIO(void); Initialize the DIO function. You should always invoke InitDIO() Description before write/read any DIO port/channel. Parameter None Return Value Returns TRUE if initialization successes, FALSE if initialization failed. Usage BOOL bRet = InitWDT() DIReadLine Syntax BOOL DIReadLine(BYTE ch);... -
Page 96: Dowriteline
POC-700 Series DOWriteLine void DOWriteLine(BYTE ch, BOOL value); Syntax Write a single channel of isolated digital output. Description Parameter BYTE value specifies the DO channel to be written. Ch should be a value of 0 ~ 7. value BOOL value (TRUE or FALSE) specifies the status of DO channel. -
Page 97: Appendix B Poe On/ Off Control
POC-700 Series Appendix B PoE On/ Off Control The system offers four 802.3at PoE+ ports with a unique feature to allow users manually turn on or off the power supply of each PoE port. This can be function can be useful in power device (PD) fault-recovery or power reset. The function APIs are encapsulated in Neousys WDT_DIO driver package. -
Page 98: Enablepoeport
POC-700 Series EnablePoEPort Syntax BOOL EnablePoEPort (BYTE port); Turn on PoE power of designated PoE port. Description Parameter port BYTE value specifies the index of PoE port. Please refer to the following illustration, port should be a value of 1 ~ 4 TRUE if enabled success Return Value FALSE if fail to enable. -
Page 99: Disablepoeport
POC-700 Series DisablePoEPort Syntax BOOL DisablePoEPort (BYTE port); Turn off PoE power of designated PoE port Description Parameter port BYTE value specifies the index of PoE port. Please refer to the following illustration, port should be a value of 1 ~ 4 TRUE if disabled success Return Value FALSE if fail to disable...
