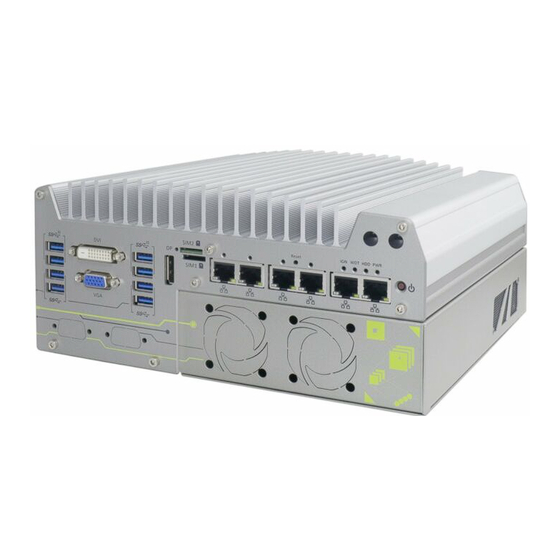

Neousys Technology Nuvo-7160GC User Manual

Designed for modern machine learning applications
Hide thumbs Also See for Nuvo-7160GC:
Table of Contents

Advertisement

Quick Links

Download this manual
CoastIPC
.com
866-412-6278
Neousys Technology Inc.
Nuvo-7160GC
User Manual
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Neousys Technology Nuvo-7160GC

Summary of Contents for Neousys Technology Nuvo-7160GC

  • Page 1 CoastIPC .com 866-412-6278 Neousys Technology Inc. Nuvo-7160GC User Manual Revision 1.0...

  • Page 2: Table Of Contents

    Service and Maintenance ...................... 8 ESD Precautions ........................8 About This Manual ......................... 9 Introduction Product Specifications ..................... 11 1.1.1 Nuvo-7160GC Specifications ................11 Nuvo-7160GC Dimension ..................13 1.2.1 Nuvo-7160GCFront Panel View ................ 13 1.2.2 Nuvo-7160GCRear Panel View ................ 13 1.2.3...
  • Page 3 Table of Contents 3.2.4 M.2 2242 (B Key) Module and Micro-SIM (3FF) Card Installation..... 58 ® 3.2.5 M.2 2280 NVMe SSD or Intel Optane Memory Installation ......60 3.2.6 MezIO Module Installation (Optional) ............62 3.2.7 HDD/ SSD Installation ..................65 3.2.8 Ethernet/ PoE+ Port Panel Screw Fix ...............

  • Page 4: Legal Information

    For questions in regards to hardware/ software compatibility, customers should contact Neousys Technology Inc. sales representative or technical support. To the extent permitted by applicable laws, Neousys Technology Inc. shall NOT be responsible for any interoperability or compatibility issues that may arise when (1) products, software, or options not certified and supported;...

  • Page 5: Contact Information

    .com Hingham, MA 02043 866-412-6278 sales@coastipc.com China Neousys Technology (China) Ltd. Room 612, Building 32, Guiping Road 680, Shanghai Tel: +86-2161155366Email, Website Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 6: Copyright Notice

    This manual is intended to be used as an informative guide only and is subject to change without prior notice. It does not represent commitment from Neousys Technology Inc. Neousys Technology Inc. shall not be liable for any direct, indirect, special, incidental, or consequential damages arising from the use of the product or documentation, nor for any infringement on third party rights.

  • Page 7: Safety Precautions

    Safety Precautions Safety Precautions  Read these instructions carefully before you install, operate, or transport the system.  Install the system or DIN rail associated with, at a sturdy location  Install the power socket outlet near the system where it is easily accessible ...

  • Page 8: Service And Maintenance

    Service and Maintenance/ ESD Precautions Service and Maintenance  ONLY qualified personnel should service the system  Shutdown the system, disconnect the power cord and all other connections before servicing the system  When replacing/ installing additional components (expansion card, memory module, etc.), insert them as gently as possible while assuring proper connector engagement ESD Precautions...

  • Page 9: About This Manual

    About This Manual About This Manual This manual introduces Neousys Nuvo-7160GC features Intel® 8th-Gen Core™ ihexa-core 35W/ 65W LGA1151processors. The guide also demonstrates the system’s installation procedures. Revision History Version Date Description Sep. 2018 Initial release...

  • Page 10: Introduction

    50% CPU performance enhancement over previous generations. Thanks to Neousys’ patented Cassette design and ingenious ventilation mechanism, Nuvo-7160GC is capable of effectively dissipating the heat generated by the GPU. By introducing the guided airflow from intake to exhaust with powerful fans featuring ®...

  • Page 11: Product Specifications

    Nuvo-7160GC Product Specifications 1.1.1 Nuvo-7160GC Specifications System Core Supporting Intel® -GenCoffee Lake 6-core CPU (LGA1151 socket, 35W/ 65W TDP) - Intel® Core™ i7-8700/i7-8700T Processor - Intel® Core™i5-8500/ i5-8500T - Intel® Core™i3-8100/ i3-8100T - Intel® Pentium® G5400/ G5400T - Intel® Celeron® G4900/ G4900T Chipset Intel®...
  • Page 12 Nuvo-7160GC ® installing NVIDIA 120W GPU (Max.graphics card dimension is 188 mm(L) x 121 mm(W), dual slot allocation) Mini PCI-E 1x full-sizemini PCI Express socket with internal SIM socket(mux with mSATA) 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module...

  • Page 13: Nuvo-7160Gc Dimension

    Nuvo-7160GC Nuvo-7160GC Dimension 1.2.1 Nuvo-7160GCFront Panel View NOTE All measurements are in millimeters (mm). 1.2.2 Nuvo-7160GCRear Panel View NOTE All measurements are in millimeters (mm).

  • Page 14: Nuvo-7160Gctop View

    Nuvo-7160GC 1.2.3 Nuvo-7160GCTop View NOTE All measurements are in millimeters (mm).

  • Page 15: Nuvo-7160Gcbottom View

    Nuvo-7160GC 1.2.4 Nuvo-7160GCBottom View NOTE All measurements are in millimeters (mm).

  • Page 16: System Overview

    System Overview Upon receivingand unpacking your Nuvo-7160GC system, please check immediately if the package contains all the items listed in the following table. If any item(s)are missing or damaged, please contact your local dealer or Neousys Technology. Nuvo-7160GCPacking List System...

  • Page 17: Front Panel I/O

    Nuvo-7160GC Front Panel I/O The Nuvo-7160GCfront panel I/O features the latest external I/O connections. Item Description USB3.1 Gen 2 port (Superspeed+) offers up to 10Gbps, twice the bandwidth over USB3.1 Gen existing SuperSpeed USB3.1 Gen. 1 connection. It is also backwards compatible 2 port with USB3.0 and USB2.0...

  • Page 18: Usb3.1 Gen 2 Port

    Nuvo-7160GC 2.2.1 USB3.1 Gen 2 Port The system’s USB 3.1 Gen 2 ports (10Gbps) are implemented via native xHCI (eXtensible Host Controller Interface) controller and are backward compatible with USB3.1 Gen.1 USB 2.0, USB 1.1 and USB 1.0 devices. Legacy USB is also...

  • Page 19: Dvi Port

    Nuvo-7160GC 2.2.3 DVI Port The system has a DVI connector on its I/O panel that supports independent display output. DVI transmits graphics data in digital format and therefore can deliver better image quality at high resolutions. For VGA monitor, Neousys offers a specialized DVI-to-VGA adapter as an accessory shipped with the system.

  • Page 20: Vga Port

    Nuvo-7160GC 2.2.4 VGA Port VGA connector is the most common video display connection. The VGA output supports up to 1920x1200@60Hz resolution. By default, the VGA output is set to “always-on”. For users who want to use only digital display interface (eg. DVI or DP), the VGA Output setting can be disabled.

  • Page 21: Displayport

    Nuvo-7160GC 2.2.5 DisplayPort The system has a DisplayPort (DP) output which is a digital display interface that mainly connect video source and carry audio to a display device. When connecting aDP, it can deliver up 2880 x 1800 in resolution. The system is designed to support passive DP adapter/ cable.

  • Page 22: Sim 1 & 2

    Nuvo-7160GC 2.2.6 SIM 1 & 2 On the front panel, there are two panel-accessible SIM sockets. By installing 3G/4G modules onto the internal mini-PCIe ports, you can have Internet access via telecom operator’s network. The SIM slots can be accessed by loosening the screw (indicated in red) that holds the SIM slot cover and SIM cards are secured into the sockets via push-push type mechanisms.

  • Page 23: Ethernet Port/ Poe

    Nuvo-7160GC 2.2.7 Ethernet Port/ PoE+ The system offers two GbE ports (in and blue) while Nuvo-7006E/ P/ DE systems have four additional PoE (Power over Ethernet) ports marked in green the front panel. All Ethernet ports feature panel screw fix holes for a firm connection.

  • Page 24: Reset Button

    Nuvo-7160GC 2.2.8 Reset Button The reset button is used to manually reset the system in case of system halt or malfunction. To avoid unexpected reset, the button is purposely placed behind the panel. To reset, please use a pin-like object (eg. tip of a pen) to access the reset button 2.2.9...

  • Page 25: 2.2.10 Power Button

    Nuvo-7160GC 2.2.10 Power Button The power button is a non-latched switch for ATX mode on/off operation. To turn on the system, press the power button and the PWR LED should light-up green. To turn off the system, issuing a shutdown command in OS is preferred, or you can simply press the power button.

  • Page 26: 2.2.11 Cassette Enclosure

    Nuvo-7160GC 2.2.11 Cassette Enclosure (R.O.C. Patent No. M456527) Neousys’ patented expansion Cassette provides a separated compartment to accommodate an add-on card. It effectively manages thermal conditions of both the system and the add-on card. The modular concept brought by Cassette module also reduces the complexity of installing and replacing an add-on card in the fanless controller.

  • Page 27: Rear Panel I/O

    Nuvo-7160GC Rear Panel I/O Nuvo-7160GC rear panel features MezIO port, four (4) COM ports, 3-pin terminal and 3-pin on/ off control. The Cassette module can be located at the bottom of the enclosure. The connectors of the installed PCI or PCIe card within the Cassette module can be accessed from this side of the panel.

  • Page 28: 4-Pole 3.5Mm Headphone/ Microphone Jack

    Nuvo-7160GC 2.3.1 4-Pole 3.5mm Headphone/ Microphone Jack The system audio function uses high definition audio Realtek ALC262 codec ® onIntel Q370 chipset. There is a female 4-pole audio jack for headphone (speaker) output and microphone input. To utilize the audio function in Windows, you ®...

  • Page 29: Com Ports

    Nuvo-7160GC 2.3.2 COM Ports The system provides four COM ports for communicating with external devices. These COM ports are implemented using industrial-grade ITE8786 Super IO chip (-40 to 85°C) and provide up to 115200 bps baud rate. COM1 and COM2 (in red) are software-configurable RS-232/422/485 ports. COM3 and COM4 (in blue) are standard 9-wire RS-232 ports.

  • Page 30: 3-Pin Terminal Block For Dc And Ignition Input

    Nuvo-7160GC 2.3.3 3-Pin Terminal Block for DC and Ignition Input The system accepts a wide range of DC power input from 8 to 35V via a 3-pin pluggable terminal block, which is fit for field usage where DC power is usually provided.

  • Page 31: Internal I/O Functions

    Nuvo-7160GC Internal I/O Functions I n addition to I/O connectors on the front panel, the system also provides internal on-board connectors, such as remote on/off control, LED status output, internal USB 2.0 ports, etc. In this section, we’ll illustrate these internal I/O functions.

  • Page 32: Dual Mode Msata/ Mini-Pcie Socket & Pin Definition

    Nuvo-7160GC 2.4.2 Dual Mode mSATA/ mini-PCIe Socket & Pin Definition T he system provides a dual mode mSATA/ mini-PCIe socket (indicated in blue) that is in compliance with mini-PCIe specification rev. 1.2. You can install either an mSATA SSD or mini-PCIe module into this socket and the system will automatically detect and configure it to run PCIe or SATA signals.
  • Page 33 Nuvo-7160GC Dual mode mSATA/ mini-PCIe socket definition Signal (mPCIe) Signal (mSATA) Pin # Signal (mPCIe) Signal (mSATA) WAKE# +3.3Vaux +3.3Vaux COEX1 COEX2 +1.5V +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP Mechanical Key Reserved* Reserved* W_DISABLE# PERST# PERn0 SATA_Rxp +3.3Vaux...

  • Page 34: 2242 (B Key), Pin Definition & Mini-Sim Card Slot

    Nuvo-7160GC may be damaged. 2.4.3 M.2 2242 (B Key), Pin Definition & Mini-SIM Card Slot T he system has anM.2 2242 slot (indicated in blue) that works with dual SIM slots (4G + 3G) on the front panel (indicated in red). By installing a 3G or 4G M.2 module and SIM card, you can access the internet via the provider’s network.
  • Page 35 Nuvo-7160GC Front panel antennae opening Rear panel antennae opening M.2 (B Key) Slot Pin Definition Pin # Signal Pin # Signal +3V3 +3V3 FULL_CARD_POWER_OFF_N USB_D+ W_DISABLE_N USB_D- Mechanical Key USB3.0-RX- USB3.0-RX+ UIM1-RESET UIM1-CLK USB3.0-TX- UIM1-DATA USB3.0-TX+ UIM1-PWR PERn0 / SATA-B+...

  • Page 36: Sata Ports

    Nuvo-7160GC +3V3 2.4.4 SATA Ports The system provides two SATA ports which support Gen3, 6 Gb/s SATA signals. Each SATA port (indicated in blue) features a 7-pin SATA connector and a 4-pin power connector. The power connector (indicated in red) accommodates a 2.5” HDD/ SSD in internal HDD bracket.

  • Page 37: Dip Switch

    Nuvo-7160GC 2.4.5 Dip Switch There is a dip switch (indicated in blue) on the motherboard and it is responsible for PCIe lane configuration. They should be set to default for you system out of the factory so you need not configure them. The table below shows the system default dip switch settings for reference purposes.

  • Page 38: Internal Usb 2.0 Port

    Nuvo-7160GC 2.4.6 Internal USB 2.0 Port The system’s motherboard has an internal USB2.0 port on the PCBA. You can utilize this USB port to connect a USB protection dongle inside the chassis of the system.

  • Page 39: 2280 (M Key) Slot For Nvme Ssd Or Optane

    Nuvo-7160GC 2.4.7 M.2 2280 (M Key) Slot for NVMe SSD or Optane Memory The system has anx4 PCIe M.2 2280 slot for you to install an NVMe SSD for the ultimate performance or an Intel® Optane memory to accelerate the read/ write performances of traditional hard disk drive.
  • Page 40 Nuvo-7160GC M.2 (M Key) Slot Pin Definition Pin # Signal Pin # Signal +3V3 +3V3 PERN3 PERP3 DAS/DSS_N PETN3 +3V3 PETP3 +3V3 +3V3 PERN2 +3V3 PERP2 PETN2 PETP2 PERN1 PERP1 PETN1 PETP1 PERN0 PERP0 PETN0 PETP0 PERST_N REFCLKN REFCLKP Mechanical Key...

  • Page 41: Mezio Tm Interface & Pin Definition

    Nuvo-7160GC 2.4.8 MezIO Interface & Pin Definition MezIO is an innovative interface designed for integrating application-oriented I/O functions into an embedded system. It offers computer signals, power rails and control signals via a high-speed connector. MezIO is also mechanically reliable benefited from its 3-point mounted mezzanine structure.
  • Page 42 Nuvo-7160GC MezIO Interface Pin Definition MezIO interface leverages FCI BERGSTAK® board-to-board connector to provide interconnectivity of high-speed signals. The receptacle part on the PCBA is FCI 61082-063402LF while the plug part on the MezIO module is FCI 61083-064402LF. Please refer to the following table for signal definition of its 60-pos connector.

  • Page 43: System Installation

    Nuvo-7160GC System Installation Before disassembling the system enclosure and installing components and modules, please make sure you have done the following:  It is recommended that only qualified service personnel should install and service this product to avoid injury or damage to the system.

  • Page 44: Disassembling The System

    Nuvo-7160GC Disassembling the System To access system internal components, the system needs to be disassembled. To disassemble the system enclosure, you need to remove the Cassette module and screws on both I/O panels. Turn the system upside-down and remove the four screws at the bottom of the Cassette module.
  • Page 45 Nuvo-7160GC On the rear I/O panel, remove the hexa-screws indicated below. Remove the rear I/O panel.
  • Page 46 Nuvo-7160GC On the front I/O panel, remove the hexa-screws indicated below. Remove the front I/O panel.
  • Page 47 Nuvo-7160GC Gently lift the system's bottom panel. Once the bottom panel have been removed, you should have access to the system's internal I/O interfaces.

  • Page 48: Installing Internal Components

    Nuvo-7160GC Installing Internal Components 3.2.1 CPU Installation Procedure To install the CPU, you will need to separate the heatsink and the motherboard. To do so, remove the nine screws indicated below.
  • Page 49 Nuvo-7160GC Gently separate the motherboard from the heatsink, you’ll see the CPU socket protective cover, place finger tips underneath the sign “REMOVE” for leverage and gently lift the cover. WARNING With the protective cover removed, please be careful when handling the...
  • Page 50 Nuvo-7160GC Remove the CPU from its container/ tray. Match the two notches on the side to the protrusions in the socket, gently lower the CPU into the socket. Locate the CPU retention bracket from the accessory box. Place the retention...
  • Page 51 Nuvo-7160GC Turn the motherboard around and secure the bracket by tightening two M3 P-head screws. Hold CPU bracket firmly and turn Secure two M3 P-head screws the motherboard around Remove all thermal pads’ protective films on the heatsink.
  • Page 52 Nuvo-7160GC With the four motherboard standoffs aligned, gently lower the motherboard onto the heatsink and secure the four screws. If you need to install other components, please refer to respective sections.
  • Page 53 Nuvo-7160GC Once the motherboard has been installed, you’re ready to secure the five screws that help the heatsink apply pressure to the CPU/ chipset die. You’ll want to apply even pressure to the corners by gradually tightening each screw. Please refer to the recommended order when tightening the screws.

  • Page 54: Ddr4 So-Dimm Installation

    Nuvo-7160GC 3.2.2 DDR4 SO-DIMM Installation There are two SO-DIMM memory slots (indicated in blue) on the motherboard that supports a total maximum of 32GB DDR4-2666. Please follow the procedures below to replace or install the memory modules. 1. Please refer to the section “Disassembling the...
  • Page 55 Nuvo-7160GC 4. Push the memory module down until it is clipped-in. 5. Repeat steps 3 and 4 to install the other module. Reinstall the system enclosure and panel when done. 7. If you need to install other components, please refer to respective sections.

  • Page 56: Mpcie Module, Mini-Sim (2Ff) Card And Antennae Installation

    Nuvo-7160GC 3.2.3 mPCIe Module, Mini-SIM (2FF) Card and Antennae Installation The system has an mPCIe slot (indicated in blue)coupled with Mini-SIM socket (indicated in red)for installing 3G/ 4G module. For installation, please refer to the following instructions. Please refer to the section “Disassembling the...
  • Page 57 Nuvo-7160GC Secure the Mini-SIM card by sliding the holder. Insert the mPCIe module on a 45 degree angle into the mPCIe slot and secure the module. Insert on 45 degree angle Secure the module Clip on the IPEZ-to-SMA cable to the module and secure the antenna to the rear panel.

  • Page 58: 2242 (B Key) Module And Micro-Sim (3Ff) Card Installation

    Nuvo-7160GC 3.2.4 M.2 2242 (B Key) Module and Micro-SIM (3FF) Card Installation The system has a mini-PCIe slot (indicated in blue) for installing 3G/ 4G or a WiFi module that can be coupled with dual Micro-SIM card slots (indicated in red). For installation, please refer to the following instructions.
  • Page 59 Nuvo-7160GC Gently press down and secure the module with an M2.5 P-head screw. Clip on the IPEZ-to-SMA cable to the module and secure the antenna to the rear panel. Please refer to the module’s manual for clip-on connection. If you need to install other components, please refer to respective sections.

  • Page 60: 2280 Nvme Ssd Or Intel Optane Memory Installation

    Nuvo-7160GC ® 3.2.5 M.2 2280 NVMe SSD or Intel Optane Memory Installation The system has a x4 PCIe M.2 2280 slot for you to install an NVMe SSD for the ultimate performance or an Intel® Optane memory to accelerate the read/ write performances of traditional hard disk drive.
  • Page 61 Nuvo-7160GC Gently press down and secure the module with an M2.5 P-head screw. Reinstall the system enclosure and panel when done. If you need to install other components, please refer to respective sections. ® Please refer to the section Intel...

  • Page 62: Mezio Tm Module Installation (Optional)

    Nuvo-7160GC 3.2.6 MezIO Module Installation (Optional) MezIO is an innovative interface designed for integrating application-oriented I/O functions into an embedded system. It offers computer signals, power rails and control signals via a high-speed connector. MezIO is also mechanically reliable benefited from its 3-point mounted mezzanine structure. A MezIO module can leverage these signals to implement comprehensive I/O functions.
  • Page 63 Nuvo-7160GC The MezIO module is secured by the three stand-mounts indicated in the illustration below..
  • Page 64 Nuvo-7160GC Gently lower the MezIO module onto the three stand-mounts while matching the MezIO interface. Secure the module using three screws supplied. Reinstall the system enclosure and panel when done. If you need to install other components, please refer to respective...

  • Page 65: Hdd/ Ssd Installation

    Nuvo-7160GC 3.2.7 HDD/ SSD Installation The system has two SATA ports (indicated in blue) and two four pin power connectors (indicated in red). The SATA and power cables should already be connected on the motherboard so users only need to install the HDD/ SSD. Please refer to the following instructions on how to install 2.5”...
  • Page 66 Nuvo-7160GC Remove the protective film covering the HDD/ SSD thermal pad. Place the HDD/ SSD (with labels facing up) and match the SATA connector end to the side with two screw holes (indicated in blue), secure the HDD/ SSD with the supplied flathead screws (4 per drive).
  • Page 67 Nuvo-7160GC Gently put the tray back into the system with the connector side being inserted into the system first and secure the tray with three screws. If you need to install other components, please refer to respective sections.

  • Page 68: Ethernet/ Poe+ Port Panel Screw Fix

    Nuvo-7160GC 3.2.8 Ethernet/ PoE+ Port Panel Screw Fix The system's RJ45 Ethernet ports have panel screw fix holes (indicated in blue circles) for a firm cable connection. To install and make use to the panel screw fix connection, you must acquire panel screw fix cables such as the cable shown below.

  • Page 69: Graphics Card Installation Into Cassette Module

    Nuvo-7160GC 3.2.9 Graphics Card Installation Into Cassette Module WARNING To reduce the risk of damage, DO NOT remove the graphics card from the antistatic bag before it is ready to be installed into the Cassette module! The Cassette module provides a separated compartment to accommodate an add-on card.
  • Page 70 Nuvo-7160GC Gently wiggle the Cassette module and separate it from the system enclosure. Remove the screws to open the Cassette cover.
  • Page 71 Nuvo-7160GC Remove the bezel cover(s). Attach the three rubber stands to the positions indicated on the back of the graphics card and one on the inside of the Cassette module's cover. 3 rubber stands on back of graphics 1 rubber stand on the inside of...
  • Page 72 Nuvo-7160GC Insert the graphics card into the PCIe/ PCI slot while making sure the bezel is properly inserted into the notch, the card is secured in place with screw(s) and the 6-pin power is connected to the graphics card. If you need to remove the graphics card out of the Cassette module, remove the screws, disconnect the 6-pin connector and flip the white lever outwards to disengage the PCIe slot.
  • Page 73 Nuvo-7160GC Once the graphics card has been installed, place and secure the cover back onto the Cassette module. Gently lower the Cassette module onto the system, press firmly to ensure the PCIe slot is properly engaged and secure the Cassette module.

  • Page 74: Installing The System Enclosure

    Nuvo-7160GC Installing the System Enclosure To reinstall the system enclosure, the bottom panel on top of the motherboard while making sure both sides are inserted into the heatsink (indicated in blue).
  • Page 75 Nuvo-7160GC Install front/ rear panel and secure screws indicated in blue. Install front panel and secure screws Install rear panel and secure screws...
  • Page 76 Nuvo-7160GC Gently lower the Cassette module onto the system enclosure, press firmly to ensure the PCIe slot is properly engaged. Secure the screws indicated to complete the enclosure installation process.

  • Page 77: Wall Mount And Anti-Vibration Damping Bracket Installation

    Nuvo-7160GC Wall Mount and Anti-vibration Damping Bracket Installation The system ships with dedicated wall mount and anti-vibration damping bracket (optional). NOTE You will need to remove the four (4) rubber stands at the bottom of the enclosure if they have been attached.
  • Page 78 Nuvo-7160GC Place the system on a flat surface and secure it with screws or you can make use of the keyhole hangers to suspend the system on the wall for easy removal. When wall mounting, place the heatsink fins perpendicular to the ground for...

  • Page 79: Anti-Vibration Damping Bracket Installation (Optional)

    Nuvo-7160GC 3.4.2 Anti-vibration Damping Bracket Installation (Optional) NOTE You will need to remove the four (4) rubber stands at the bottom of the enclosure if they have been attached. The optional patented anti-vibration damping bracket offers superior operating vibration resistance up to 1Grm with HDD or up to 5Grm with SSD. To install the bracket, please refer to the following installation procedure.

  • Page 80: Powering On The System

    Nuvo-7160GC Powering On the System There are three methods to power on the system  Pressing the power button  Using an external non-latched switch by connecting to the remote on/ off plug  Sending a LAN packet via Ethernet (Wake-on-LAN) 3.5.1...

  • Page 81: Powering On Using External Non-Latched Switch

    Nuvo-7160GC 3.5.2 Powering On Using External Non-latched Switch If your application demands the system to be placed inside a cabinet, you may use an external non-latched switch to power on/ off the system. The system provides a 3-pin “Remote On/ Off” plug for connecting a non-latched switch and acts as the ATX-mode power on/off control switch.

  • Page 82: Powering On Using Wake-On-Lan

    Nuvo-7160GC 3.5.3 Powering On Using Wake-on-LAN Wake-on-LAN (WOL) is a mechanism to wake up a computer system from a S5 (system off with standby power) state via issuing a magic packet. The system’s Wake-on-LAN compatible GbE port is shown below.
  • Page 83 Nuvo-7160GC Click on the Power Management tab and check the following options. Click on OK when done. Magic Packet The magic packet is a broadcast frame containing anywhere within its payload 6 bytes of all 255 (FF FF FF FF FF FF in hexadecimal), followed by sixteen repetitions of the target computer's 48-bit MAC address.

  • Page 84: System Configuration

    Nuvo-7160GC System Configuration BIOS Settings The system is shipped with factory-default BIOS settings meticulously programmed for optimum performance and compatibility. In this section, we’ll illustrate some of BIOS settings you may need to modify. Please always make sure you understand the effect of change before you proceed with any modification.

  • Page 85: Com Port Configuration

    Nuvo-7160GC 4.1.1 COM Port Configuration The system’s COM1/ COM2portssupport RS-232 (full-duplex), RS-422 (full-duplex) and RS-485 (half-duplex) mode. You can set the COM1 operating mode via BIOS settings. Another option in BIOS called “Slew Rate” defines how sharp the rising/falling edge is for the output signal of COM1. For long-distance RS-422/485 transmission, you may set the “Slew Rate”...

  • Page 86: Sata Configuration

    Nuvo-7160GC 4.1.2 SATA Configuration The SATA controller of your system supports two (2) operating modes: AHCI and Intel RST Premium With Intel Optane System Acceleration mode. The AHCI mode, which exposes SATA's advanced capabilities such as hot swapping and native command queuing, is supported in several later version of operating systems.
  • Page 87 Nuvo-7160GC To set SATA controller mode: 1. When system boots up, press F2 to enter BIOS setup utility. 2. Go to [Advanced] > [SATA Configuration]. 3. Highlight the SATA, mSATA or M.2 port you wish to set and press Enter to bring up setting options.

  • Page 88: Tpm Availability

    Nuvo-7160GC 4.1.3 TPM Availability Trusted Platform Module (TPM) is a hardware-based cryptoprocessor to secure hardware by integrating cryptographic keys into devices. The system is designed with on-board TPM 2.0 module. As TPM 2.0 requires 64-bit Windows 7/8/10 with UEFI boot mode, it is disable in BIOS by default. For customers who want to utilize TPM feature, you will need to enable TPM in BIOS as well as install Windows with UEFI mode.

  • Page 89: Auto Wake On S5

    Nuvo-7160GC 4.1.4 Auto Wake on S5 Users can specify the S5 state reaction of the system in the event of a power failure. Value Option Description Auto Wake on S5 Disabled The system does not turn on when operating in state S5.

  • Page 90: Power On After Power Failure Option

    Nuvo-7160GC 4.1.5 Power On After Power Failure Option This option defines the behavior of System series when DC power is supplied. Value Description S0 – Power On System is powered on when DC power is supplied. S5 – Power Off System is kept in off state when DC power is supplied.

  • Page 91: Power & Performance (Cpu Sku Power Configuration)

    Nuvo-7160GC 4.1.6 Power & Performance (CPU SKU Power Configuration) The system supports various 6 -Gen Skylake LGA1151 CPUs. A unique feature, “SKU Power Config” is implemented in BIOS to allow users to specify user-defined SKU power limit. Although the system is designed to have best thermal performance with CPUs of 35W TDP, you can install a 65W CPU and limit its SKU power (to35W) to obtain more computing power.

  • Page 92: Wake On Lan Option

    Nuvo-7160GC 4.1.7 Wake on LAN Option Wake-on-LAN (WOL) is a mechanism which allows you to turn on your System series via Ethernet connection. To utilize Wake-on-LAN function, you have to enable this option first in BIOS settings. Please refer “Powering On Using Wake-on-LAN”...

  • Page 93: Boot Menu

    Nuvo-7160GC 4.1.8 Boot Menu The Boot menu in BIOS allows you to specify the system’s boot characteristics by setting bootable device components (boot media) and method. Or, you may press F12 upon system start up and select a device you wish boot from.
  • Page 94 Nuvo-7160GC capability eXecution Environment (PXE) is not supported Enabled By enabling the PXE boot, one can choose to boot via I219 Only/ I210 Only or All NICs. Add Boot Options First Newly detected boot media are placed at the top of the boot order.

  • Page 95: Boot Type (Legacy/ Uefi)

    Nuvo-7160GC 4.1.9 Boot Type (Legacy/ UEFI) The system supports both Legacy and Unified Extensible Firmware Interface (UEFI) boot modes. UEFI is a specification proposed by Intel to define a software interface between operating system and platform firmware. Most modern operating systems, such as Windows 7/8/10 and Linux support both Legacy and UEFI boot modes.

  • Page 96: 4.1.10 Position New Boot Device

    Nuvo-7160GC 4.1.10 Position New Boot Device The “Add Boot Options” allow you to determine whether a newly added device (eg. USB flash disk) is to boot as the first device to boot or the last in the boot sequence. To set the newly-installed boot device as the first or last boot device: Press F2when the system boots up to enter the BIOS setup utility.

  • Page 97: 4.1.11 Watchdog Timer For Booting

    Nuvo-7160GC 4.1.11 Watchdog Timer for Booting The watchdog timer secures the boot process by means of a timer. Once the timer expires, a reset command is issued to initiate another booting process. There are two options in BIOS menu, “Automatically after POST” and “Manually after Entering OS”.

  • Page 98: Legacy/ Uefi Boot Device

    Nuvo-7160GC 4.1.12 Legacy/ UEFI Boot Device When you wish to set a designated boot device, you may set it as the first device to boot in Legacy or UEFI Boot Device setting. Or if you wish to manually select a boot device, you may do so by pressing F12 when the system boots up.

  • Page 99: Amt Configuration

    Nuvo-7160GC AMT Configuration Intel® AMT (Active Management Technology) is a hardware-based technology for remotely managing target PCs via Ethernet connection. The system supports AMT function via its Ethernet port implemented with Intel I219-LM. Prior to usingthe AMT function to remotely control the system, you need to configure AMT password and network settings.
  • Page 100 Nuvo-7160GC Highlight MEBx Login and press Enter, a prompt will appear asking for password. The default password is “admin”. For further MEBx configuration details, please refer to Intel® MEBX User Guide.

  • Page 101: Raid Configuration

    Nuvo-7160GC RAID Configuration The system supports RAID 0 or 1 options. To utilize the RAID function, the minimum HDDs/ SSDs must be installed for the following RAID configurations: RAID 0: Two HDDs or SSDs RAID 1: Two HDDs or SSDs...
  • Page 102 Nuvo-7160GC Please refer to the on screen RAID MENU options and instructions for configuration.

  • Page 103: Os Support And Driver Installation

    Nuvo-7160GC OS Support and Driver Installation Operating System Compatibility The system supports most operating system developed for Intel® x86 architecture. The following list contains the operating systems which have been tested by Neousys Technology.  Microsoft Window 8 (x64) ...

  • Page 104: Driver Installation

    Nuvo-7160GC Driver Installation The system comes with a “Drivers & Utilities” DVD that offers “one-click” driver installation process. It automatically detects your Windows operating system and installs all necessary drivers for you system with a single click. 5.2.1 Install Drivers Automatically The system comes with a “Drivers &...

  • Page 105: Install Drivers Manually

    Nuvo-7160GC 5.2.2 Install Drivers Manually You can also manually install each driver for the system. Please note when installing drivers manually, you need to install the drivers in the following sequence mentioned below. Windows 10 (x64) The recommended driver installation sequence is Chipset driver (x:\Driver_Pool\Chipset_10_APL\Win_ALL\SetupChipset.exe)

  • Page 106: Driver Installation For Watchdog Timercontrol

    Nuvo-7160GC Driver Installation for Watchdog TimerControl Neousys provides a driver package which contain function APIs for Watchdog Timer control function. You should install the driver package (WDT_DIO_Setup.exe) in prior to use these functions. Please note that you must install WDT_DIO_Setup_v2.2.8.x or later versions.

  • Page 107: Intel Optane Memory Bios Setup And Driver Installation

    Nuvo-7160GC ® Intel Optane Memory BIOS Setup and Driver Installation ® The system is compatible with Intel Rapid Storage Technology that supports the ® installation of Intel Optane memory to significantly boost traditional hard disk drive read and write performances. Intel® Optane™ memory is Intel® RST’s latest system...
  • Page 108 Nuvo-7160GC Go to “SATA Mode Selection”, press the Enter key to bring up options, select “Intel RST Premium With Intel Optane System Acceleration” and press the Enter key to select the option.
  • Page 109 Nuvo-7160GC Go to “M.2 2280 NVMe Storage Device” and press the Enter key to bring up the selection, select “RST Controlled” and press the Enter key to select the option. Press F10 to save and exit, and allow the system to boot into Windows.
  • Page 110 Nuvo-7160GC Follow the 6 step setup procedure as instructed.
  • Page 111 Nuvo-7160GC Check the “I accept the terms in the License Agreement” box and click on “Next >” to continue the installation process.
  • Page 112 Nuvo-7160GC When done, click on “Finish” and restart the system.
  • Page 113 Nuvo-7160GC 10. Upon system restart, the following initialization screen will appear. Click on Next to continue. 11. In the Setup section, you will see your Intel® Optane™ memory drive and compatible drive(s) that can be accelerated. Click on the downward arrow to...
  • Page 114 Nuvo-7160GC 12. The data backup warning will appear, please backup any data you may have stored on your Intel® Optane™ memory module before proceeding. Check the box “Erase all data on Intel® Optane™ memory module” and click on Continue. 13. When the Intel® Optane™ memory module has been enabled, the installation window and a notification window at the bottom right corner will prompt you to restart the system.
  • Page 115 Nuvo-7160GC 14. Upon system restart, a successful enablement message will appear to indicate the Intel® Optane™ memory module has been enable successfully. 15. Once enabled, the RST software Setup section should show your configuration information.

  • Page 116: Appendix A Using Wdt & Dio

    In this section, we’ll illustrate how to use the function library provided by Neousys to program the WDT functions. Currently, WDT driver library supports Windows 10 x64 and WOW64 platform. For other OS support, please contact Neousys Technology for further information.

  • Page 117: Wdt And Dio Library Installation

    Nuvo-7160GC WDT and DIO Library Installation To setup WDT & DIO Library, please follow instructions below. 1. Execute WDT_DIO_Setup.2.2.8.x.exe. and the following dialog appears. 2. Click “Next >” and specify the directory of installing related files. The default directory is C:\Neousys\WDT_DIO.
  • Page 118 Nuvo-7160GC 3. Once the installation has finished, a dialog will appear to prompt you to reboot the system. The WDT & DIO library will take effect after the system has rebooted. 4. When programming your WDT or DIO program, the related files are located in...

  • Page 119: Wdt Functions

    Nuvo-7160GC WDT Functions InitWDT Syntax BOOL InitWDT(void); Description: Initialize the WDT function. You should always invoke InitWDT() before set or start watchdog timer. None Parameter Return Value TRUE: Successfully initialized FALSE: Failed to initialize BOOL bRet = InitWDT() Usage SetWDT Syntax BOOL SetWDT(WORD tick, BYTE unit);...

  • Page 120: Startwdt

    Nuvo-7160GC StartWDT Syntax BOOL StartWDT(void); Description Starts WDT countdown. Once started, the WDT LED indicator will begin blinking. If ResetWDT() or StopWDT is not invoked before WDT countdowns to 0, the WDT expires and the system resets. Parameter None Return Value...

  • Page 121: Appendix B Poe On/ Off Control

    Nuvo-7160GC Appendix B PoE On/ Off Control The system offers 802.3at PoE+ ports and users are allowed to manually turn on or off the power supply of each PoE port. This can be useful in power device (PD) fault-recovery or power reset.The APIs are part of Neousys WDT_DIO driver package.

  • Page 122: Enablepoeport

    Nuvo-7160GC EnablePoEPort Syntax BOOL EnablePoEPort (BYTE port); Turn on PoE power of designated PoE port. Description Parameter port BYTE value specifies the index of PoE port. Please refer to the following illustration, port should be a value of 3 ~ 6...

  • Page 123: Disablepoeport

    Nuvo-7160GC DisablePoEPort Syntax BOOL DisablePoEPort (BYTE port); Turn off PoE power of designated PoE port Description Parameter port BYTE value specifies the index of PoE port. Please refer to the following illustration, port should be a value of 3 ~ 6...

Table of Contents
