Table of Contents Congratulations ............ Fast cooling ............Safety and warning information ......Door alarm ............Before you switch ON the appliance ....... Chiller section drawer Technical safety ............(Special unfrozen compartment) ......Important information when using the appliance ..
Page 4
Change the light bulbs ......... 22 Upper halogen lamp ..........22 Side halogen lamps ..........22 Halogen light in the chiller section drawer ....23 Cleaning the chiller section drawer filter ..... 23 Exchange the odour filter ........24 Customer service ..........24...
In purchasing your new refrigerator, you have selected a qualitatively high-grade household appliance. Please read the operating and installation instructions The outstanding feature of your new appliance is its low carefully. power consumption. They contain important information on how to install, use Each appliance which leaves our factory is inspected and maintain the appliance.
Children in the household appliance Do not allow children to play with the appliance! Never use electrical appliances inside the appliance If the appliance features a lock, keep the key out of the (e. g. heater, etc.). reach of children. Risk of explosion!
All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal. Warning Keep children away from packaging and its parts.

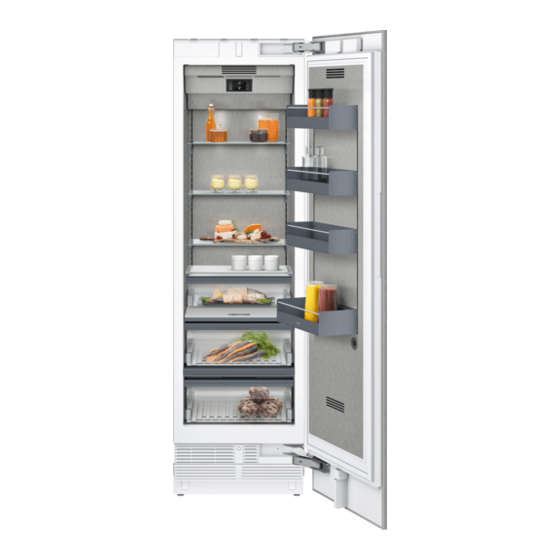

Your new appliance These operating instructions refer to several models. Illustrations can differ. Fascia Control buttons for the chiller section drawer Motorised shelf Chiller section drawer for optimum storage of fish, meat, poultry and vegetables Motorised shelf button Butter and cheese compartment...
Fascia On/off button Setup button This button starts and ends the setup mode. If the setup Serves to switch the appliance on and off. mode is ended using the setup button , the changes which have been made are stored.
30 cm to an oil or solid-fuel cooker. A load-bearing base is necessary because of the heavy The floor on which the appliance is to be installed must be weight of the fully laden appliance. rigid. If required, reinforce the floor. To ensure that the ice maker functions correctly, the appliance must be upright.
– Temperature unit: °C The socket must be fused with a 10 to 16 A fuse. – Refrigerator compartment temperature: +4 °C For appliances operated in non-European countries, the identification plate should be checked whether the...
Selecting the temperature Motorised shelf The temperature can be set from +2 ° C to +8 ° C. The appliance is equipped with a height adjustable We recommend a setting of +4 ° C. motorised shelf. The temperature setting can be changed using the –...
In the fast cooling mode, the refrigerated compartment will be cooled for approx. 6 hours as cold as possible. The temperature in this compartment is kept at almost 0 ° C. Switch the function on: This provides optimum storage conditions for fresh food.
Re-arranging the interior Door storage compartment You can vary the shelves inside the appliance and the containers in the door to suit your requirements. Glass shelves The height of the glass shelves can be adjusted. Lift the container and remove.
To take out, lift the drawers slightly and take out. The first menu (temperature unit) is displayed in the fascia. To switch to the next menu: To place in, lift the front of the drawers slightly and place into the chest of drawers. <...
Energy saving mode (eco function) On / Off / Temperature unit Language setting The temperature can be displayed in degrees Celsius (° C) When the appliance is operated, all messages are or degrees Fahrenheit (° F). displayed in fascia in English. Press setup button Alternatively, the display languages can be selected corresponding to the table above.
Holiday mode11 Energy saving mode If leaving the appliance for a long period of time, you can switch the appliance over to the energy-saving holiday mode. If the energy saving function (eco function) is activated, the appliance switches to energy saving operation.
– the background illumination of the fascia is switched off. – Keep plastic parts and the door seal free of oil and grease. To switch the sabbatical mode on: – Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
– Clicking motor is switching on or off. If you do not use the appliance for a prolonged period: Noises which can be easily rectified Take all food out of the appliance. The appliance is not level Pull out the mains plug or switch off the fuse! Allign the appliance with the aid of a spirit level.
If several warning notices appear at once, see to each Cause warning in turn. The mains voltage falls below the permitted limiting value. As long as a warning is displayed, no buttons can be pressed. Remedial action Door alarm No button actuations are possible. When the mains voltage reaches the stipulated value again, the warning message goes out.
5 seconds. Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following — information. Customer service will charge you for advice even if the appliance is still under guarantee!
Change the light bulbs Side halogen lamps Warning Pull out mains plug or switch off fuse. Risk of electric Halogen lamp type: shock! 12 V/10 W/bulbholder G4 Caution! Do not touch the halogen bulb with your fingers. Always use a soft cloth when inserting a halogen bulb.
Press the filter-holder front downwards (1) with both hands. Only open the filter-holder for cleaning! Remove the filter-cover (2). Clean the filter with clear water and leave it to dry. Free the cover and remove it from the holder. Re-insert the filter. Replace the filter cover (3).
Check whether you can remedy the fault yourself on the basis of information provided in the “Eliminating minor faults yourself” section (page 21). Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD).
Page 28
Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D-81739 München www.gaggenau.com 9000 463 511 Subject to alterations. en (8905)
