You can find out where and how best to install your appliance here. You will also learn how to connect your appliance to the power supply.
After unpacking all parts, check for any transport damage and for completeness of delivery.
If you have any complaints, contact your dealer or our after-sales service.
The delivery consists of the following:
Risk of explosion!
If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
The weight of the appliance ex works may be up to 70 kg depending on the model.
The subfloor must be sufficiently stable to bear the weight of the appliance.
Permitted room temperature
The permitted room temperature depends on the appliance's climate class.
The climate class can be found on the rating plate. → "Appliance", Fig. 1/6
Climate class | Permitted room temperature |
SN | 10°C to 32°C |
N | 16°C to 32°C |
ST | 16°C to 38°C |
T | 16°C to 43°C |
The appliance is fully functional within the permitted room temperature.
If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5°C.
Niche dimensions
Observe the niche dimensions if you install your appliance in the niche. If this is not the case, problems may occur when installing the appliance.
Niche depth
Install the appliance in the recommended niche depth of 560 mm. If the niche depth is smaller, the energy consumption increases slightly. The niche depth must be a minimum 550 mm.
Niche width
An inside niche width of at least 560 mm is required for the appliance.

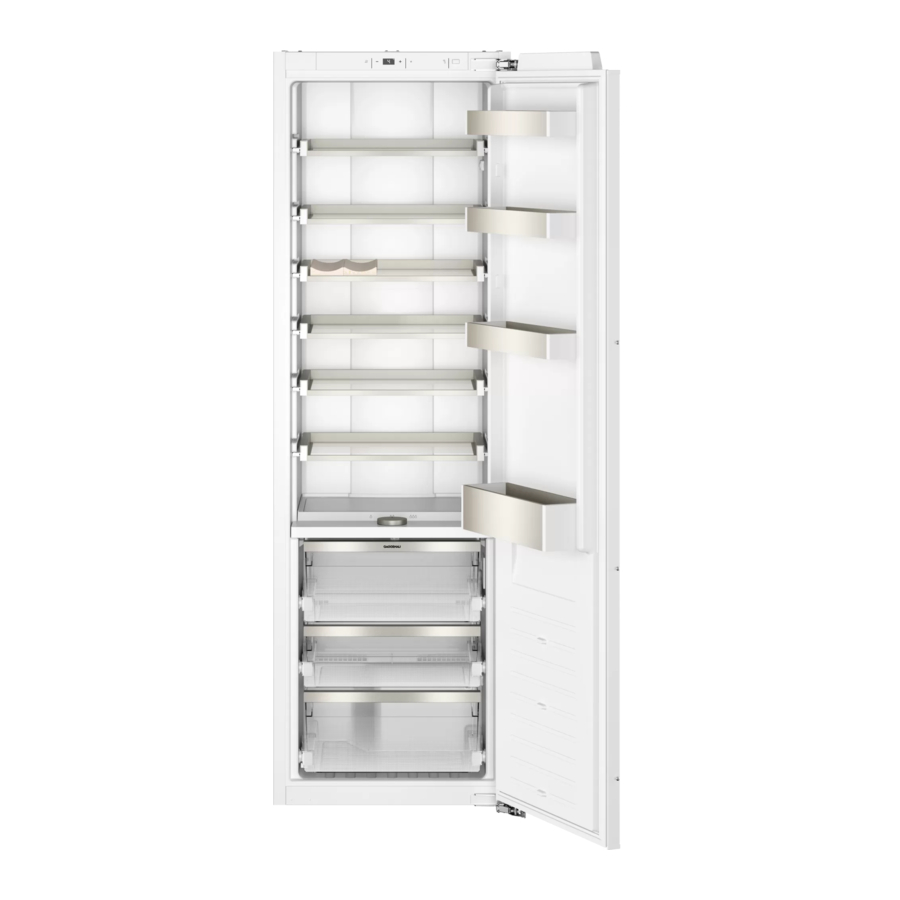

You can find an overview of the parts of your appliance here.
Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.
You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
The features of your appliance depend on the model.
In order to achieve an improved overview and to remove food more quickly, remove the shelf.
Store fresh fruit and vegetables in the fruit and vegetable container. You can adjust the humidity in the fruit and vegetable container via the humidity controller on the partition and a special seal.
The air humidity in the fruit and vegetable container can be set according to the type and amount of food to be stored by turning the humidity control:
Condensation may form in the fruit and vegetable container depending on the food and quantity stored. Remove the condensation with a dry cloth and adjust the air humidity using the humidity controller. To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approx. 8°C to 12°C, e.g. pineapple, bananas, citrus fruits, cucumbers, courgettes, peppers, tomatoes and potatoes.
Use the lower temperatures in the cool-fresh container to store highly perishable food, e.g. fish, meat and sausages.
To adjust the door racks as required, you can remove the door rack and re-insert elsewhere.
→ "Removing door rack"
Use original accessories. These have been made especially for your appliance.
The accessories for your appliance depend on the model.
Egg tray
Store eggs safely on the egg tray.
Bottle shelf
Store bottles securely on the bottle shelf.
Tip: You can use up to five bottle trays on an extendable shelf.
Setting the refrigerator compartment temperature
Setting the cool-fresh compartment temperature
Note: The standard setting of the cool-fresh compartment is preset at 0. Setting 0 corresponds to a temperature of around 0°C. You can set the temperature in the cool-fresh compartment to 3 settings warmer or colder.
Tip: If frost forms on the food items in the cool-fresh compartment, set a higher cool-fresh compartment temperature.
With Fast cooling, the refrigerator compartment cools so that it as cold as possible.
Switch on Fast cooling before placing large quantities of food.
Note: When Fast cooling is switched on, increased noise may occur.
Switching on Fast cooling
Note: After approx. 15 hours, the appliance switches to normal operation.
Switching off Fast cooling
If the appliance door is open for a longer period, the door alarm switches on.
Switching off the door alarm
This appliance is network-capable. Connect your appliance to a mobile device to control its functions via the Home Connect app.
The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com.
To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi1) and to the Home Connect app.
After switching on the appliance, wait at least 2 minutes until internal device initialisation is complete. Only then should you set up Home Connect.
The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.
Tips
Notes
If your router has a WPS function, you can connect the appliance to your WLAN home network (Wi-Fi) automatically.
If your router does not have a WPS function, you can connect the appliance to your WLAN home network (Wi-Fi) manually. The appliance briefly sets up its own WLAN network. You can connect a mobile device to the WLAN network and transfer the network information for the WLAN home network (Wi-Fi) to your appliance.
Requirement: The Home Connect app has been installed on your mobile device.
If you have automatically connected your appliance to your WLAN home network (Wi-Fi), you can connect your appliance to the Home Connect app.
Requirements
The appliance searches for updates to the Home Connect software at regular intervals.
Note: If updates are available, the temperature display shows .
To reset the update and the temperature display to the set temperature, press any touch field.
If your appliance experiences connection problems with the WLAN home network (Wi-Fi) or your appliance wants to log into a different WLAN home network (Wi-Fi), you can reset the Home Connect settings.
Please see the information on data protection.
The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):
This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.
Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.
You can keep dairy products, eggs, prepared meals, pastries, open preserves and hard cheese in the refrigerator compartment.
The temperature can be set from 3°C to 8°C.
The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the longer the food remains fresh.
The air circulation in the refrigerator compartment creates different chill zones.
Coldest zone
The coldest zone is on the partition and in the door rack for large bottles.
Tip: Store highly perishable food such as fish, sausages and meat in the cool-fresh compartment.
→ "Cool-fresh compartment"
Warmest zone
The warmest zone is at the very top of the door.
Tip: Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread.
In the cool-fresh compartment, you can keep fresh food fresh three times longer than in the refrigerator compartment.
The temperature in the cool-fresh compartment is kept at around 0°C. Storing food in the fresh compartment retains the quality of the food better. The low temperature and the optimum moisture provide ideal storage conditions for fresh food.
The storage times are dependent on the original quality of your food.
Food | Storage time |
Fresh fish, seafood | up to 3 days |
Poultry, meat (boiled/ fried) | up to 5 days |
Beef, pork, lamb, sausage (cold meat) | up to 7 days |
Smoked fish, broccoli | up to 14 days |
Salad greens, fennel, apricots, plums | up to 21 days |
Soft cheese, yoghurt, quark, buttermilk, cauliflower | up to 30 days |
Defrosting in the refrigerator compartment
The refrigerator compartment in your appliance defrosts automatically.
Defrosting in the coolfresh compartment
The cool-fresh compartment in your appliance defrosts automatically.
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.
Risk of electric shock!
An ingress of moisture can cause an electric shock.
ATTENTION!
Unsuitable cleaning products may damage the surfaces of the appliance.
If you want to clean the fittings thoroughly, remove these from your appliance.
Removing the extendable shelf
Removing door rack
Removing the fruit and vegetable container
Removing the cool-fresh container
If you want to clean your appliance thoroughly, you can remove certain components from your appliance.
Partition and cover of the fruit and vegetable container
You can remove the partition and the cover of the fruit and vegetable container in order to clean it thoroughly.
Removing the partition
Removing the cover
Fitting the partition and cover
Telescopic rails
You can remove the telescopic rails in order to clean them thoroughly.
Removing telescopic rails
Installing telescopic rails
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.
Risk of electric shock!
Incorrect repairs are dangerous.
Fault | Cause and troubleshooting |
The appliance is not cooling, the displays and lighting light up. | Showroom mode is switched on.
|
The LED lighting does not work. | Different causes are possible.
|
HomeConnect is not working correctly. | Different causes are possible.
|
![]() ![]() | The electronics have detected a fault
|
A warning signal sounds and ![]() | Different causes are possible.
|
The appliance door is open.
| |
The temperature differs greatly from the setting. | Different causes are possible.
|
The appliance hums, bubbles, buzzes, gargles or clicks. | Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. No action required. |
The appliance makes noises. | Fittings wobble or stick.
|
Bottles or containers are touching.
|
You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances.
Taking the appliance out of operation
If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.
Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum duration of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.
Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website.
If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance.
The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate.
→ "Appliance", Fig. 1/6
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.
Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.
→ "Appliance", Fig. 1/6
More information about your model can be found online at https://energylabel.bsh-group.com1. This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then follow the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively you can also find the model identifier in the first line of the EU energy label.
Observe the following safety instructions.
This appliance is only intended to be fully fitted in a kitchen.
Only use this appliance:
This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Children must not play with the appliance.
Cleaning and user maintenance must not be performed by children unless they are being supervised.
Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer.
Risk of injury!
The high weight of the appliance may result in injury when lifted.
Risk of electric shock!
Improper installation is dangerous.
Risk of explosion!
If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
Risk of fire!
It is dangerous to use an extended power cord and non-approved adapters.
Risk of electric shock!
An ingress of moisture can cause an electric shock.
Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it and suffocate.
Risk of explosion!
Mechanical devices or other devices may damage the refrigeration circuit; flammable refrigerant may escape and explode.
Risk of fire!
Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.
Risk of injury!
Containers that contain carbonated drinks may burst.
Risk of harm to health!
To prevent food from being contaminated, you must observe the following instructions.
Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
Risk of fire!
If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.
Gaggenau Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
www.gaggenau.com
