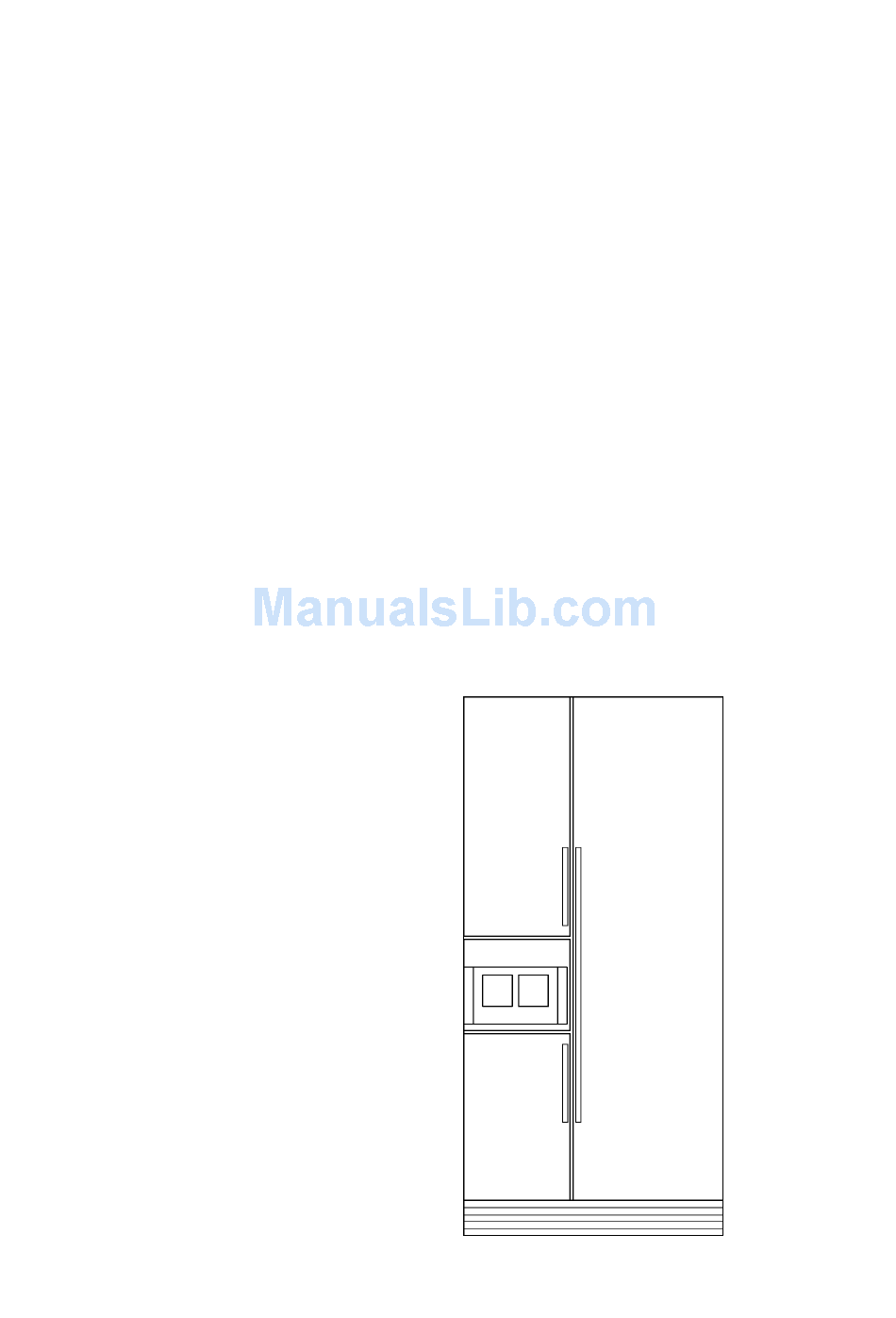

- Page 1 Gaggenau en Installation instructions RX 496...
-
Page 3: Table Of Contents
Table of Contents Safety and warning notes ....Fitting the appliance ..... . . Pre installation checks . -
Page 4: Safety And Warning Notes
Safety and warning notes Please ensure that you have read these assembly A fully laden appliance is very heavy. If positioned on an instructions thoroughly and completely before you unsuitable floor surface, the appliance could tip over and commence installation and commissioning of the cause serious injuries and damage. -
Page 5: Installation Notes
Installation notes Installation location Floor surface The ideal installation location is a dry, well ventilated To be able to install the appliance safely and ensure that room. it will function correctly, the floor surface must be horizontal and flat. The installation area must be at the The installation location should not be exposed to direct same level as the rest of the room. -
Page 6: Transporting Previously Installed Appliances
Electrical connection Do not use any extension cables or distributors. A Transporting previously installed permanently installed socket is required for connecting appliances this appliance to the mains. 1. Clear out the appliance completely. Only move the Any necessary extension to the power cord must only be appliance when it is completely empty. -
Page 7: Water Connections
Water connections The appliance requires a fresh water supply and With a hose length of over 6 m, the maximum wastewater drainage. The fresh water hose and the installation height decreases by 0.1 with each additional outlet hose are permanently fitted to the appliance. metre. -
Page 8: Dimensions Of The Appliance
Dimensions of the appliance Fully integrated built in appliance Free standing appliance 475 − 520 Dimensional tolerance: ± 1 mm Dimensional tolerance: ± 1 mm a, b: Oversize of the kitchen unit doors Minimum height 1990 mm: Minimum height 1990 mm: Appliance feet fully screwed in Appliance feet fully screwed in Maximum height 2060 mm:... -
Page 9: Dimensions Of The Installation Niche
Dimensions of the installation niche Dimensions of the kitchen unit doors If the kitchen unit doors are no more than 24 mm thick, the built in appliance can be fully integrated into the kitchen counter. In the case of free standing appliances with side walls, the furniture door must be no more than 16 mm thick. -
Page 10: Handles
Handles Height of the ventilation opening The handles and their fixtures and fittings must be able To save energy and keep the noise level as low as to withstand the following pulling forces: possible, you should plan to have the ventilation opening as high as possible. -
Page 11: Door Opening Angle
Door opening angle The appliance is delivered from the factory with its doors Clearance from the appliance to the adjusted to the maximum opening angle. The maximum wall door opening angle is 108° and overlaps the kitchen front. The maximum door opening angle can be retained with kitchen unit doors up to 21 mm thick. -
Page 12: Required Tools And Accessories
Required tools and accessories Knife with adjustable blade Scope of delivery Measuring tape Refrigerator and freezer unit Try square Assembly instructions Spirit levels 60 cm and 120 cm long Instructions for use Featheredge min. 120 cm long Drilling template for kitchen unit doors Miscellaneous Installation accessories Accessories... -
Page 13: Fitting The Appliance
Fitting the appliance Pre installation checks Removing the packaging, transport locks and wooden To ensure safe and troublefree installation and an palette optimum overall appearance of the kitchen front, the following points must be checked beforehand: Warning! Floor surface of the installation niche The appliance is very heavy and may tip over while Dimensions of the installation niche being unpacked. - Page 14 Removing the transport locks 9. Pull the transport locks out. 1. Pull the base panel out towards you. 10. Remove the bands from the wooden blocks and pull the wooden blocks out. 2. Place the base panel in a safe location to protect it from damage.
-
Page 15: Fitting The Anti Tip Stabiliser
4. Lift the appliance at the opposite side wall. There Fitting the anti tip stabiliser must be a second person supporting the appliance on the other side. Warning! Until the anti tip stabiliser has been fitted, the appliance could tip over if the appliance doors are opened. -
Page 16: Connecting The Appliance To The Water Main
5. Slide the anti tip stabiliser underneath the nuts and Connecting the appliance to the onto the threaded bolts. water main The fresh water hose (A) with Aqua Stop valve and outlet hose (B) are each 2.3 m long. 1. Close the main water cock and the stop valve to prevent damage caused by escaping water. -
Page 17: Connecting The Appliance To The Mains
5. Route the fresh water hose to the stop valve. Connecting the appliance to the mains Note! The fresh water hose and outlet hose must be Do not run over or kink the fresh water hose with connected before the appliance is connected to the Aqua Stop valve when you are routing it. -
Page 18: Aligning The Appliance
4. Using a spirit level, align the appliance vertically and Aligning the appliance horizontally. For alignment, the appliance must be standing on a flat surface. 1. Position the appliance in the intended installation area. 2. Loosen the lock nut on the four adjustment spindles of the appliance feet. -
Page 19: Fitting The Appliance Into The Kitchen Counter
6. Screw the side brackets onto the adjacent units. Fitting the appliance into the kitchen counter The appliance must be aligned with the kitchen counter before installation. Once the appliance is inside the installation niche, the appliance feet can no longer be adjusted. -
Page 20: Fitting The Kitchen Unit Doors
6. Unscrew the nuts. Fitting the kitchen unit doors The door handles must be fitted before the kitchen unit doors are fitted. 1. Place the drilling templates against the back of the kitchen unit doors and align at the edges. 7. - Page 21 11. Attach the furniture door to the levelling screws by 21. Slot the four screws provided (4 x 45) into the holes the fixing rail. in the appliance door with a washer on each. The screws are designed for kitchen unit doors with 12.
-
Page 22: Installing A Free Standing Appliance
To adjust the side wall extension for free standing Installing a free standing appliance appliances: The use of a wall fixing is mandatory for free standing 1. Unscrew the screws on the angle brackets. appliances. Warning! Free standing appliances will tip over if they are not secured to the wall. - Page 23 Fitting side walls to built in appliances Note! Only drill and screw into the designated points, If there are no kitchen units adjacent to the appliance, otherwise there is a risk of damaging the appliance. the side walls can be fitted directly to the appliance itself.
-
Page 24: 10. Removing The Anti Tip Stabiliser
10. Removing the anti tip stabiliser 11. Fitting the base panel The anti tip stabiliser must not be removed until the Adjusting the depth of the base panel appliance is firmly screwed into its installation location 1. Unscrew the nuts from the angle brackets and and thereby secured against tipping over. -
Page 25: Adjusting The Opening Angle Of The Appliance Doors
Adjusting the height of the base panel 12. Adjusting the opening angle of the appliance doors The appliance has a vertical adjustment of 70 mm. Cooling compartment and freezer compartment If the appliance is adjusted higher than 31 mm, the door: 90°... - Page 26 Gaggenau Hausgeräte GmbH Carl Wery Straße 34 D 81739 München www.gaggenau.com 9000 381 740 (8807) en...
