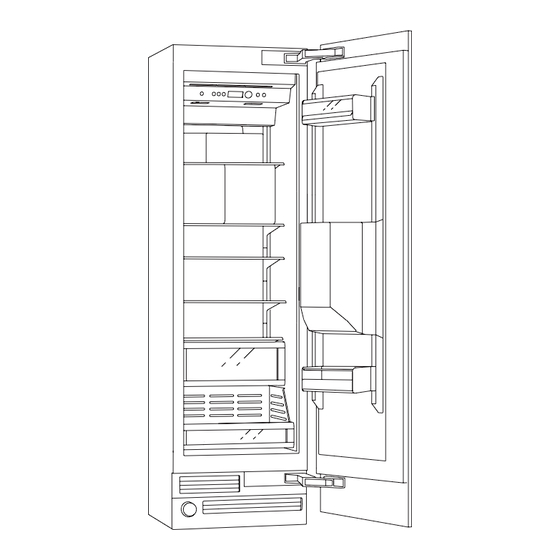

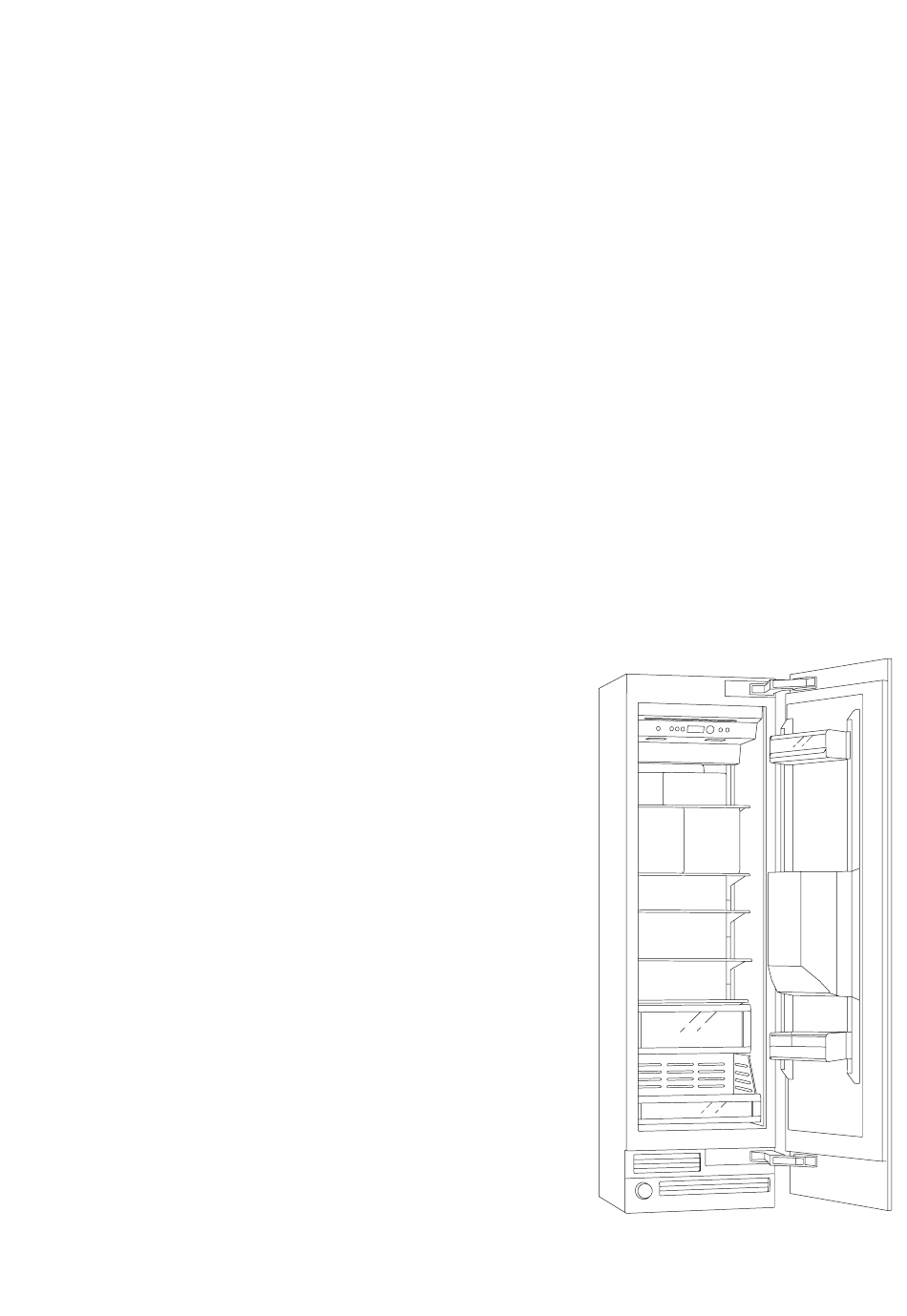

- Page 1 Gaggenau Operating instructions RF 463200AU...
-
Page 3: Table Of Contents
Table of Contents Congratulations ............ Variable interior design ........Shelves ..............Safety and warning information ......Door storage compartment ........Before you switch ON the appliance ....... Drawers ..............Technical safety ............Ice cube container ..........Important information when using the appliance ..Fast freezing ............ - Page 4 Ice and water dispenser ........19 Water filter ............Drinking water quality ..........19 Important information concerning the water filter ..Ice and water dispenser control panel ..... 20 Exchanging the filter cartridge ........ Dispensing water ............ 20 Specification and performance data sheet for water filter cartridge ...........
-
Page 5: Congratulations
Congratulations Safety and warning information Before you switch ON the appliance With the purchase of your new freezer you have opted for a modern, high-quality domestic appliance. Please read the operating and installation instructions The outstanding feature of your new appliance is its low carefully. -
Page 6: Important Information When Using The Appliance
Important information when using the Only customer service may change the power cord and carry out any other repairs. Improper installations appliance and repairs may put the user at considerable risk. Only original parts supplied by the manufacturer may Never use electrical appliances inside the appliance be used. -
Page 7: Information Concerning Disposal
Information concerning disposal Disposal of packaging The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal. -
Page 8: Your New Appliance
Your new appliance These operating instructions refer to several models. Illustrations can differ. Fascia Ice and water dispenser Ice maker Control panel for the ice and water dispenser Ice cube container 10 Water capture bowl and rest (detachable) Shelves Drawer Particle filter / Water filter * Accessories Door storage compartment... -
Page 9: Fascia
Fascia +/– On/off button Setting buttons In the temperature setting mode, the temperature can be Serves to switch the appliance on and off. +/– changed using the setting buttons See section “Setting the temperature”. Caution The appliance is not seperated from the mains when it is For setting the parameters available in the menu. -
Page 10: Installation
Installation Installation location Fixing For secure installation, the appliance screwed to A dry, well ventilated room is suitable as an installation location. The installation location should neither be neighbouring kitchen furniture and/or units. exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. -
Page 11: Electrical Connection
Electrical connection Switching on the appliance Do not use extension cables or distributors. Press the on/off button The plug to secure the appliance must be freely The appliance starts to cool down when switched on for accessible. Connect the appliance to a 220 240 V / 50 Hz the first time. -
Page 12: Set The Language
Set the language Variable interior design When the appliance is operated, all messages are You can vary the shelves inside the appliance and the displayed in fascia in English. containers in the door to suit your requirements. Alternatively, the display languages can be selected Shelves corresponding to the table on page 15. -
Page 13: Door Storage Compartment
Door storage compartment Ice cube container For storing larger amounts of food, it is possible to remove the ice cube container. Lift the container and remove. Place the containers at the desired heights and press downwards. Drawers Note: Before removing the ice cube container, switch the ice maker off, see “Ice maker”. -
Page 14: Fast Freezing
Fast freezing Setup mode The fast freezing function is ideal when storing larger There are menus for adapting the appliance to the amounts of food. It should be activated 4–6 hours before individual user requirements. These adaptions are carried placing food in the freezer. 24 hours are necessary when out in the setup mode. -
Page 15: Menus In The Setup Mode
Menus in the setup mode Menu Setting options Displayed text ° Temperature unit °C (degrees Celsius) °F (degrees Fahrenheit) ° DEUTSCH Language German ENGLISH English French FRANCAIS DANSK Danish SUOMI Finnish Greek ELLINIKA NEDERL Dutch Italian ITALIANO Polish POLSKI Portuguese PORTUG Norwegian NORSK... -
Page 16: Energy Saving Mode
Holiday mode Energy saving mode If leaving the appliance for a long period of time, you can switch the appliance over to the energy-saving holiday mode. If the energy saving function (eco function) is activated, the appliance switches to energy saving operation. Holiday mode settings: This energy saving function is preset at the factory in order to reduce energy consumption. -
Page 17: Freezing And Storing Food
Freezing and storing food Purchasing frozen food When purchasing frozen food, observe the following: – Check that the packaging is not damaged. – Check the sell-by date. – The temperature of the supermarket freezer should be –18 ° C or lower. If not, the shelf life of the frozen food is reduced. -
Page 18: Packing Food Correctly
Packing food correctly: Thawing frozen food Place food in packaging. Depending on the type and application, select one of the following options: Press out all the air. – at room temperature Seal package tight. – in the refrigerator Label the wrapping with the contents and date. –... -
Page 19: Ice Maker
Ice maker Ice and water dispenser The ice maker makes ice cubes. The following can be dispensed as required: The ice maker starts to make ice cubes as soon as the – cooled water appliance has reached the set temperature. –... -
Page 20: Ice And Water Dispenser Control Panel
Ice and water dispenser control panel Dispensing ice Warning Request water button. Do not use the ice dispenser for longer than 3 minutes within a time period of 15 minutes. Wait for a few minutes more before ordering more. Risk of damage to Ice cube request button. -
Page 21: Detachable Rest
Detachable rest Removing and cleaning the ice cube container If ice cubes have not been dispensed for a prolonged period, they will shrink, have a stale taste and stick together. Detach the rest in order to place larger receptacles below the discharge opening. -
Page 22: Locking The Ice And Water Dispenser
Operating noises Locking the ice and water dispenser Normal operating noises – In order to secure the ice and water dispenser against Humming refrigerating unit is running. The fan in the unintentional use activate the childproof lock. circulating air system is running. –... -
Page 23: Switching Off And Disconnecting
Switching off and disconnecting Odours the appliance If you experience unpleasant odours: Switching off the appliance Press the on/off button and switch the appliance off! Press the on/off button Take all food out of the appliance. Disconnecting the appliance Clean the interior. See section “Cleaning the appliance”. -
Page 24: Sensor Failure
Appliance self-test Sensor failure Before you call customer service, conduct a self-test on the appliance. Switch off the appliance and wait 5 minutes. Keep the door closed during this time. Switch on the appliance. Cause A technical defect on the appliance is possible. Remedial action Conduct a self-test on the appliance. -
Page 25: Water Filter
A filter cartridge for filtering particles can be obtained from customer service or a Gaggenau specialist dealer. Take the filter cap off of the used filter cartridge (3.) Important information concerning the and place it onto the fresh filter cartridge (4.). -
Page 26: Specification And Performance Data Sheet For Water Filter Cartridge
Specification and performance data sheet for water filter cartridge For filter model: 9000 077 095 Using replacement cartridge: 9000 077 104 The model was tested by NSF International with reference to ANSI/NSF Standards 42 & 53 and certified for a reduction in the substances cited below. -
Page 27: Eliminating Minor Faults Yourself
Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Customer service will charge you for advice – even if the appliance is still under guarantee! Appliance Fault Possible cause: Remedial action... - Page 28 Fault Possible cause: Remedial action No water or ice is given out at The appliance or ice maker has only just Approx. 24 hours is needed until ice production the dispenser. been switched on. starts. A lot of ice has been taken. Approx.
- Page 29 Fault Possible cause: Remedial action Ice forms in the inflow hose to Shut off tap incorrectly opened. Open shut off tap fully. the ice maker. Temperature in the freezer space is too Temperature in the freezer space should lie high. between –17 °C and –18 °C, adjust where necessary.
-
Page 30: Change The Light Bulbs
Change the light bulbs Halogen bulbs on the ice and water Warning dispenser Pull out mains plug or switch off fuse. Risk of electric shock! Halogen lamps model: 12 V/5 W/G4 base Caution! Do not touch the halogen bulb with your fingers. Always use a soft cloth when inserting a halogen bulb. - Page 32 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D-81739 München www.gaggenau.com 9000 438 583 Subject to alterations. en (8801)
