Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

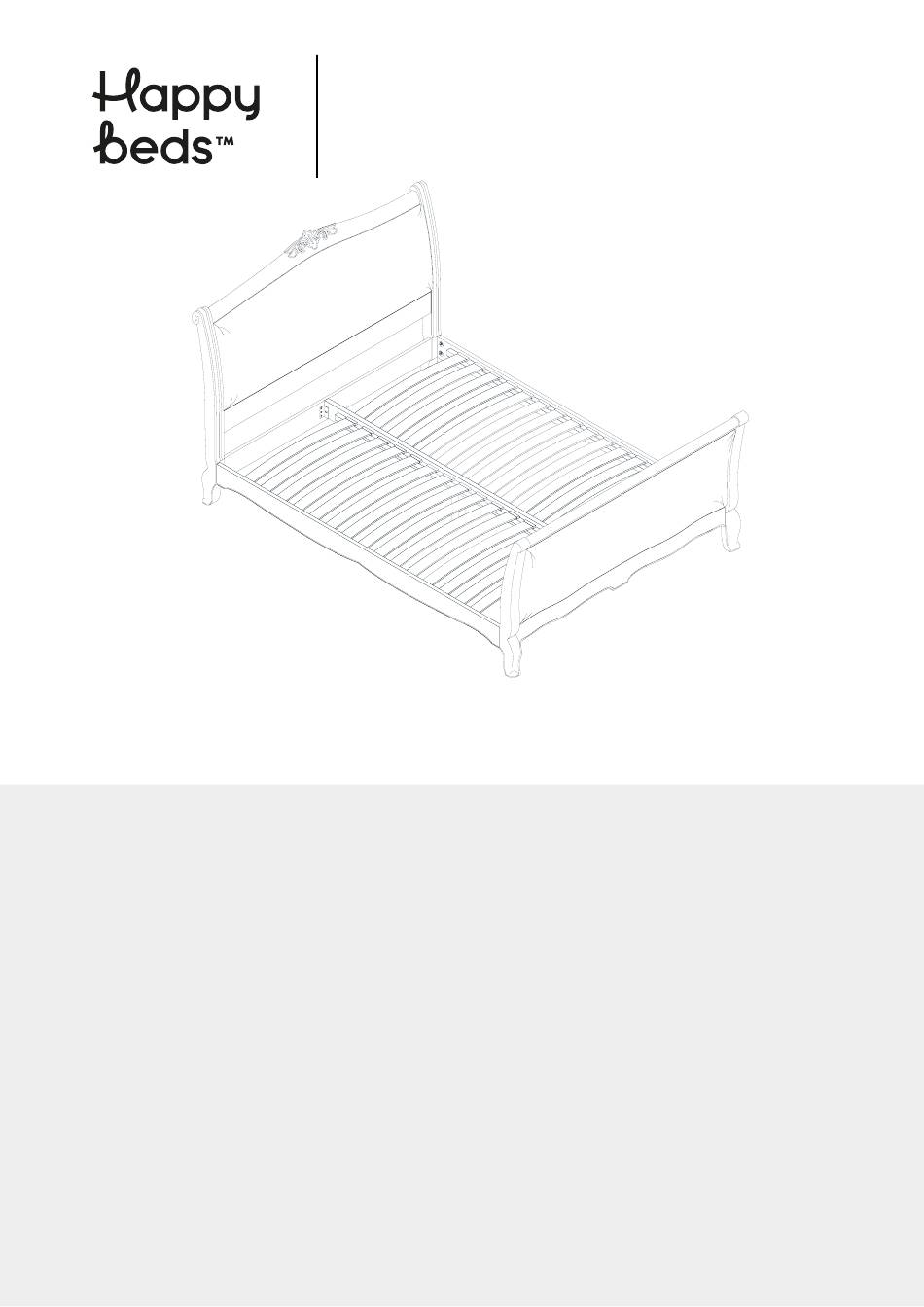

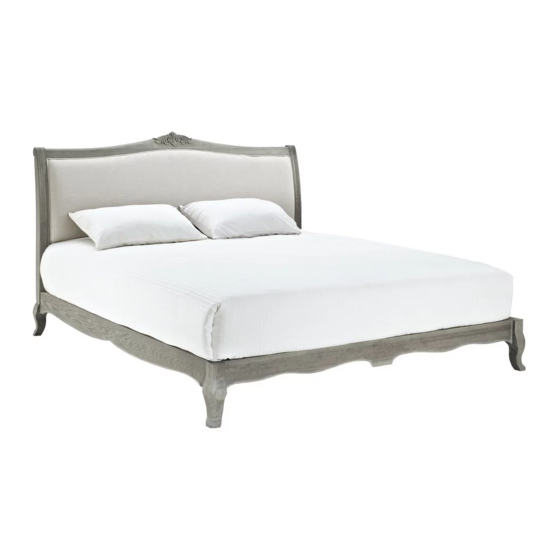

Camille Low End Bed -
Double/King/Super King
.
.
www.happybeds.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Happy Beds Camille Low End Bed-Double
Summary of Contents for Happy Beds Camille Low End Bed-Double
- Page 1 Camille Low End Bed - Double/King/Super King Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings. Assemble the product as close to its intended final location/room as possible.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 Open Ended Spanner 20mm CSK Screw Nut & Washer 2 set Wood Dowel Centre Rail Support Leg 45mm Bolt & Washer 1 set...
- Page 4 ‘Insert the four wooden dowels (N) into the headboard and footboard. This will assist in the alignment of the siderail.Screw the eight threads (F) into the headboard and footboard and tighten by hand. Page 3...
- Page 5 Page 4...
- Page 6 - First attach the centre rail support leg(O) into the underneath of the centre rail(D), and secure using the bolt and washer(P). - Locate the centre rail(D) into the headboard and footboard brackets,and secure using the nuts(K) and bolts(J). Tighten using the open ended spanner(H) P x 1 Please note.
- Page 7 Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
