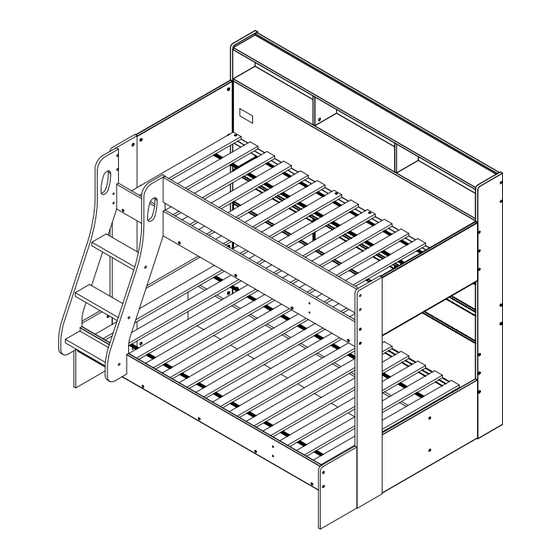

Happy Beds OLIVER TRIPLE BED Assembly Instructions Manual

3ft top 4ft bottom
Hide thumbs

Advertisement

Table of Contents

Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.
Oliver Triple Sleeper Bunk
Bed - 3FT Top 4FT Bottom
Assembly Instructions
.
www.happybeds.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLIVER TRIPLE BED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Happy Beds OLIVER TRIPLE BED

Summary of Contents for Happy Beds OLIVER TRIPLE BED

  • Page 1 Oliver Triple Sleeper Bunk Bed - 3FT Top 4FT Bottom Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 Important for High Sleepers, Bunk Beds and Children’s Beds Warning: High sleepers and the upper tier of bunk beds are not suitable for children under 6 years of age due to risk of injury from falls. High Sleepers and Bunk Beds present a risk of injury from strangulation if used incorrectly.
  • Page 4 OLIVER TRIPLE BED Assembly Instructions The ladder of this bed is interchangeable Option 1 Option 2 PAGE 1 OF 31 BEM-056BTB...

  • Page 5: Safety Advice

    SAFETY ADVICE Please take the time to carefully read through the whole of these instructions before you commence. Keep these instructions for future reference. Unpack, inspect and check of all of the contents. Please dispose of all packing safely. Small components parts could choke a child is swallowed. We strongly recommend that you keep children well away from the work area.
  • Page 6 OLIVER BUNK BED SAFETY WARNINGS AND GENERAL NOTES: IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE WARNING - High beds and the upper bed of bunk beds are not suitable for children under six years due to the risk of injury from falls. WARNING - Bunk beds and high beds can present a serious risk of injury from strangulation of not used correctly.

  • Page 7: Part List

    PART LIST MODEL: OLIVER BUNK BED Carton 1 of 5 Part Name HEADBOAD FRONT LEG - LEFT HEADBOAD FRONT LEG - RIGHT HEADBOAD BACK LEG - LEFT HEADBOAD BACK LEG - RIGHT HEADBOAD PANEL - TOP HEADBOAD PANEL - BOTTOM Carton 2 of 5 SIDE RAIL - FRONT SIDE RAIL - BACK...

  • Page 8: Parts List

    PARTS LIST 11 (X4) PAGE 5 OF 31...
  • Page 9 Hardware x 74 x 34 X 20 5654 QUICKFIT HOUSING 5570 QUICKFIT BOLT 5857 MINIFIT BOLT X 50 X 36 M6 X 13MM BARREL NUT M6 X 25MM JCBC M7 X 32MM JCBC-W BOLT SCREW SCREW X 152 x 50 M8 X 25MM PVC DOWEL M6 x 50mm JCBC M6 X 12MM JOINT NUT...
  • Page 10 Step 1 X152 5 (X2) 19 (X2) PAGE 7 OF 31...
  • Page 11 Step 2 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 8 OF 31...
  • Page 12 Step 3 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CAMLOCK OR DRAWER CAMLOCK. TURN CLOCKWISE UNTIL SECURE HOLE HOLE CORRECT WRONG...
  • Page 13 Step 5 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim Step 6 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim 9, 10 PAGE 10 OF 31...

  • Page 14: Back View

    Step 7 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CAMLOCK OR DRAWER CAMLOCK. TURN CLOCKWISE UNTIL SECURE HOLE HOLE CORRECT WRONG...
  • Page 15 Step 8 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 12 OF 31...
  • Page 16 Step 9 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CAMLOCK OR DRAWER CAMLOCK. TURN CLOCKWISE UNTIL SECURE HOLE HOLE CORRECT WRONG...
  • Page 17 Step 10 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CAMLOCK OR DRAWER CAMLOCK. TURN CLOCKWISE UNTIL SECURE HOLE HOLE CORRECT WRONG...
  • Page 18 Step 11 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CAMLOCK OR DRAWER CAMLOCK. TURN CLOCKWISE UNTIL SECURE HOLE HOLE CORRECT WRONG...
  • Page 19 Step 12 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 16 OF 31...
  • Page 20 Step 13 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 17 OF 31...
  • Page 21 Step 14 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 18 OF 31...
  • Page 22 Step 15 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 19 OF 31...
  • Page 23 Step 16 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 20 OF 31...
  • Page 24 OPTION 1 : LEFT SIDE LADDER Step 17 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 21 OF 31...
  • Page 25 Step 18 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim AB Q PAGE 22 OF 31...
  • Page 26 Step 19 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 23 OF 31...
  • Page 27 Step 20 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 24 OF 31...
  • Page 28 Step 21 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 25 OF 31...
  • Page 29 OPTION 2 : RIGHT SIDE LADDER Step 17 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 26 OF 31...
  • Page 30 Step 18 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim Q AB PAGE 27 OF 31...
  • Page 31 Step 19 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 28 OF 31...
  • Page 32 Step 20 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 29 OF 31...
  • Page 33 Step 21 DO NOT use any power tools as this may damage the bed frame and will invalidate any claim PAGE 30 OF 31...
  • Page 34 Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
