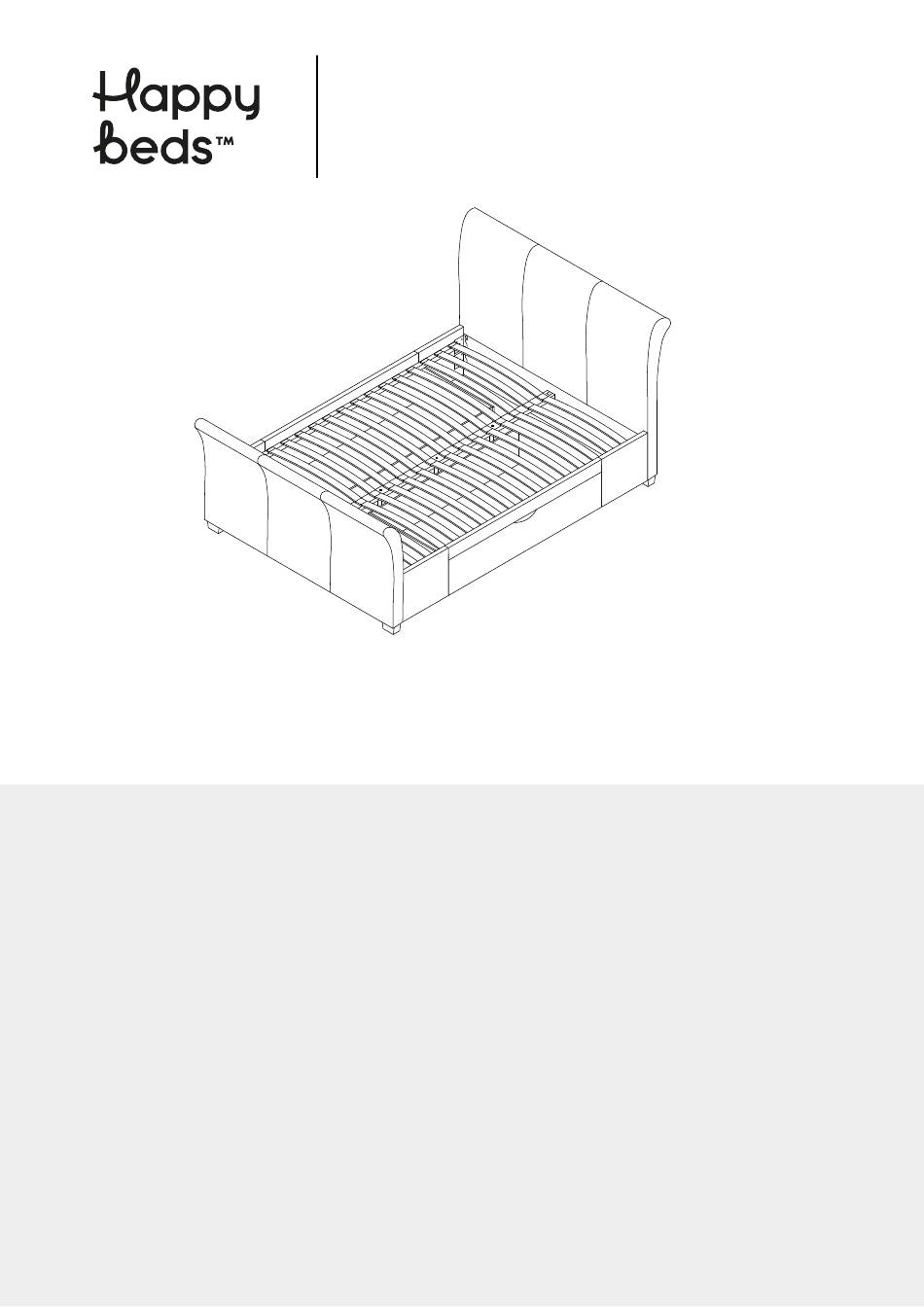

Capri Bed - King Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings. Assemble the product as close to its intended final location/room as possible.
Page 2
These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
Page 3
Please check all hardware matches the list below. Should you notice any are missing please contact your retailer. Already inserted into Head & Foot Ends M8x30mm +Spring Washer M5x70mm +Flat Washer M8x45mm +Flat Washer M4x20mm M5x50mm 40x75 M5x50mm M4x20mm M4x30mm We strongly advise that you do not use Power Tools, such as drills or electric screwdrivers during the assembly as this may cause irreparable damage and will invalidate your...
Page 4
(2x) 07 (32x) Please ensure you carefully check all the pieces, should you have any concerns please contact the retailer before assembly commences. Please have your order number, details of the issue, the product code, and the batch number from the cartons as this will help us to resolve your issue much faster.
Page 5
01 02 Please note that the Bolt (A) x 16 are prefixed into parts 1 & 2...
Page 6
01 02 ARROWS ON LABELS POINT TO EACH OTHER...
Page 7
PUSH PUSH PUSH Drawer Assembly Important: Make sure when you fit the nuts that the hole is in the correct alignment. Part M x 3...
Page 8
Positions For Castors FOLLOW LINE ON BACK OF DRAWER FACE PANEL...
Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
