Cloud Contractor Series Manual
7ch pre amp mixer
Hide thumbs
Also See for Contractor Series:
- Installation manual (6 pages) ,
- Manual (17 pages) ,
- Safety instructions (16 pages)
Table of Contents
Related Manuals for Cloud Contractor Series
Summary of Contents for Cloud Contractor Series

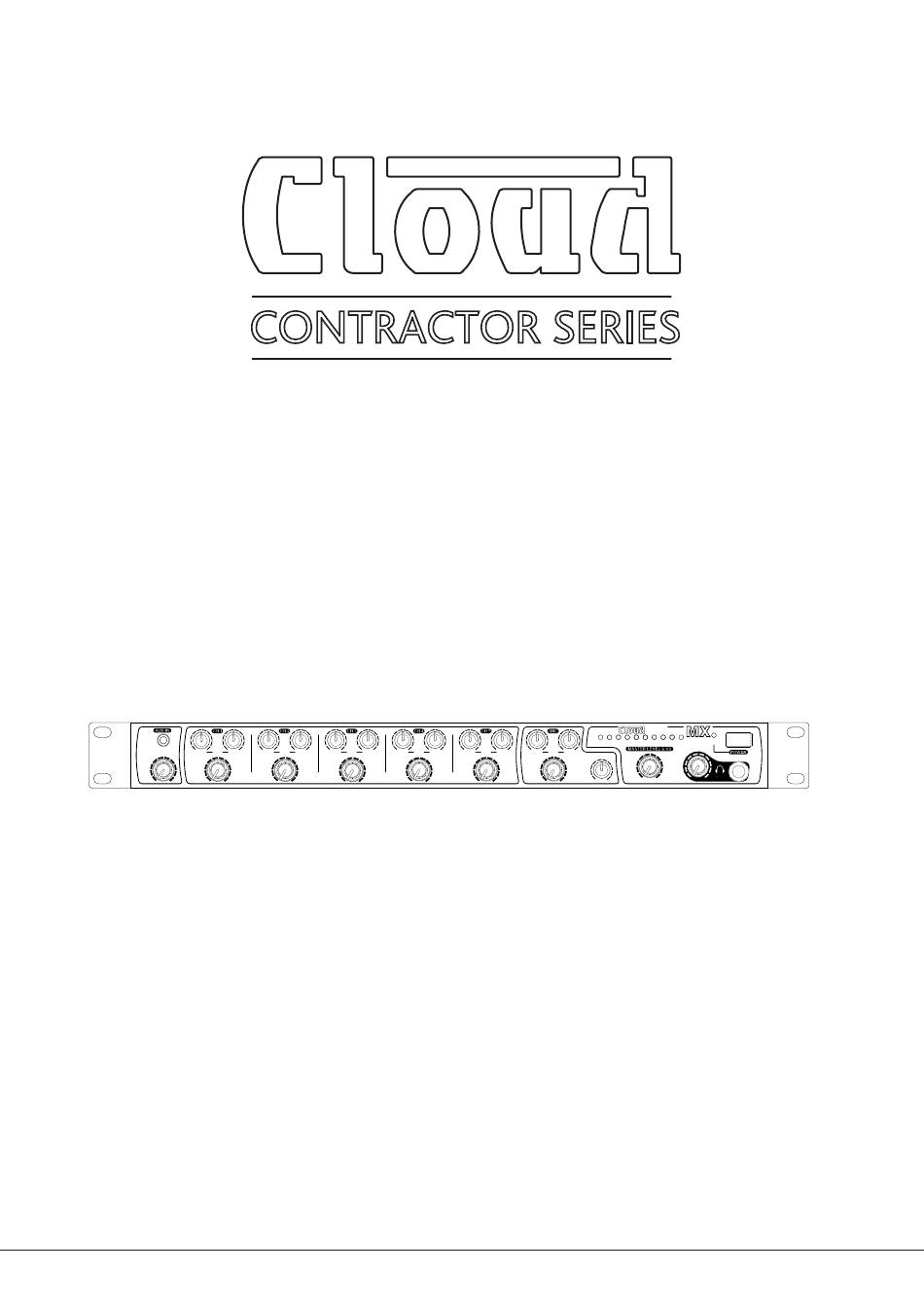

- Page 1 CONTRACTOR SERIES MX155 7CH PRE AMP MIXER FIVE INPUT LINE/MIC MIXER FOH / AUX LEVEL VOX DUCKING LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL FULL MANUAL MX155 Manual v1.0...
-
Page 2: Important Safety Instructions
Thank you for choosing Cloud Contractor Series for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions and all markings on the product. Keep these instructions. - Page 3 Overview General The MX155 is a mic/line mixer with 5 multi-purpose mic/line inputs, one dedicated microphone input and talkover feature. All inputs feature EQs and Gain control. The balanced output is provided on a Phoenix-compatible connector. Remote muting and emergency signal replay facilitate the use in installed sound systems. Health advice This unit produces and absorbs electromagnetic radiation.
-
Page 4: Controls And Connections
Controls and Connections Connections - Rear Output Section Input Section Controls - Front Input Section Output Section MX155 Manual v1.0... -
Page 5: Functional Description
Functional Description The MX155 is a mic/line mixer with 5 multi-purpose mic/line inputs, one dedicated microphone input and talkover feature. All inputs feature EQs and Gain control. The balanced output is provided on a Phoenix-compatible connector. Remote muting and emergency signal replay facilitate the use in installed sound systems. AC inlet and fuse holder. - Page 6 VOLUME control for FOH/AUX channel. Controls the volume of the signal inserted in the balanced rear-panel input (16) or the front-panel TRS input (17) respectively. VOLUME controls for channels 1/2/3/4/5. Control the volume of the signal inserted in the rear-panel microphone inputs (12) or line inputs (13) depending on the setting of the source selector switch (14).
-
Page 7: Internal Settings
Internal Settings WARNING - DANGER Changing the internal settings requires to open the unit. Prior to opening the unit, the unit shall be disconnected from any AC supply. Any work on an open unit shall be expedited only by qualified, certified personnel. -
Page 8: Operation
Operation A. Connections For connecting this unit to AC mains, please note: • Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. -
Page 9: Technical Specifications
Connections The MX 155 uses the connector types below, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible. -
Page 10: Block Diagram
Block Diagram MX155 Manual v1.0... -
Page 11: Maintenance And Warranty
Maintenance and Warranty While we have chosen the best components to make this product as rugged and reliable as possible, some parts in audio products (potentiometers, faders, switches) are subject to wear which is a matter of operation cycles, and not of time. While providing a full time-based warranty according to the country’s of purchase requirements on the function of the electronic circuitry, we hence have to limit the warranty on such electro-mechanical parts to 90 days from the date of purchase. - Page 12 CONTRACTOR SERIES MX155 Manual v1.0...
