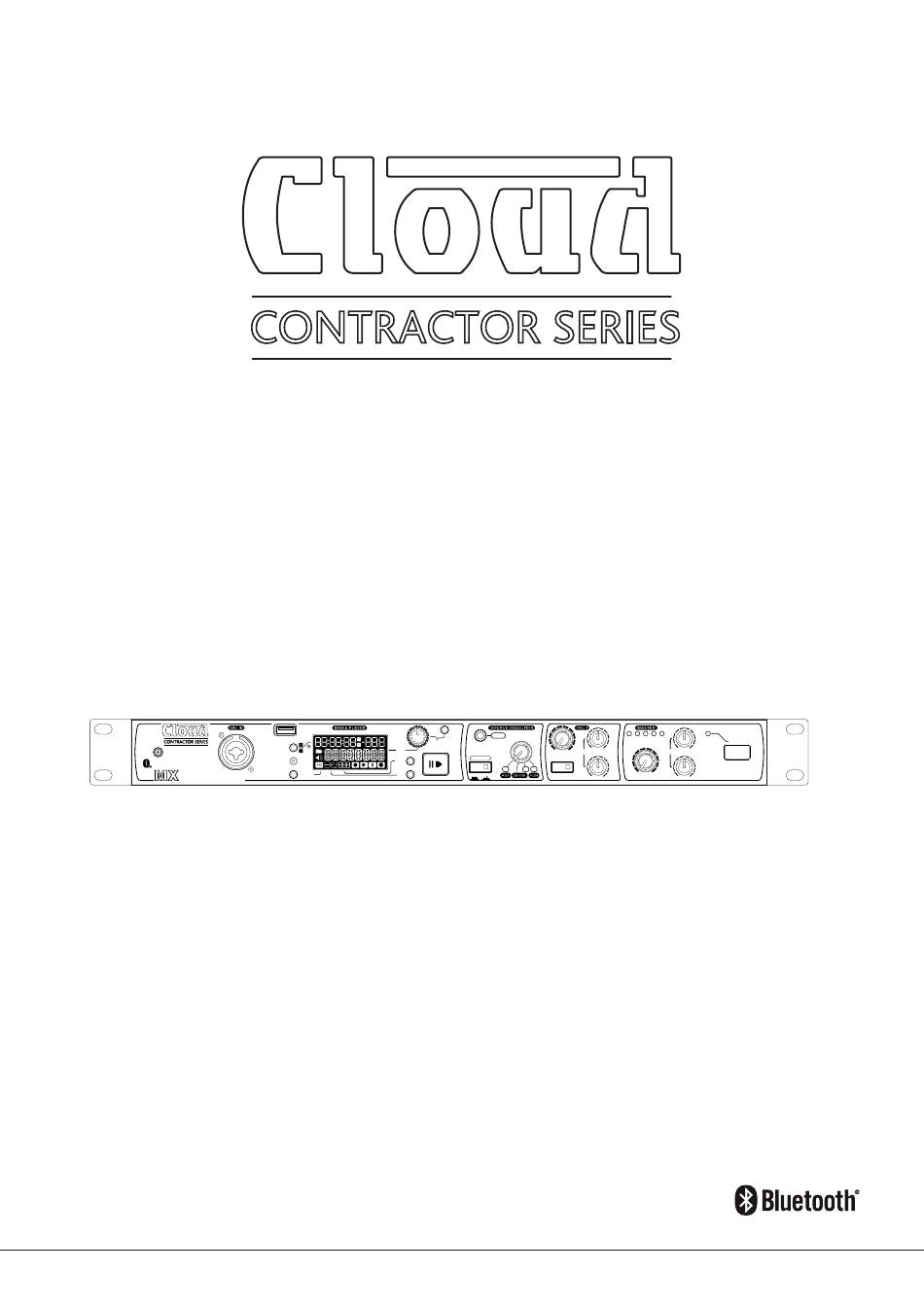

- Page 1 CONTRACTOR SERIES MX141M 5CH MIXER/MEDIA PLAYER [STORE] POWER FILE OUTPUT (dB) FOLDER DATA [STATION] GAIN SOURCE 4 BLUETOOTH MODE AERIAL MX 141M SOURCE CH 4 MIC 1 ON MASTER LEVEL TRANSPORT MEDIA MIXER MANUAL MX141M Manual v1.0...
-
Page 2: Important Safety Instructions
Thank you for choosing Cloud Contractor Series for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions and all markings on the product. Keep these instructions. -
Page 3: Environmental Advice
Overview General The MX141M combines a 5-channel audio mixer for stereo music sources and a microphone with a on-board media player, Bluetooth® wireless technology, an FM tuner and an IR remote control. It is perfect for applications where foreground or Health advice This unit produces and absorbs electromagnetic radiation. -
Page 4: Controls And Connections
Controls and Connections Connectons - Rear Rear: Output Section MAX: 20 W MAX LEVEL POWER 40-60 Hz MX141M MEDIA MIXER CAUTION: REPLACE WITH SAME CLOUD ELECTRONICS LTD UNBALANCED TYPE T2AH 250V FUSE SHEFFIELD, ENGLAND BALANCED R ATTENTION: UTILIZER UN www.cloud.co.uk FUSIBLE DE RECHARGE DE MEME TYPE DE T2AH 250V. -
Page 5: Functional Description
Functional Description The MX141M combines a compact audio mixer with a microphone input and three stereo sources with a media player, FM tuner and Bluetooth connectivity. Packed in a sleek 19’’ 1U case and supplied with an infrared remote control for the media AC inlet and fuse holder. - Page 6 FM Mode (indicator (43) on): allows you to store a new station preset. Choose frequency scroll mode by pressing (27) if required. Press the Folder Level UP (STORE) button once to display the station preset you wish to store the now stored at the chosen preset. MX141M Manual v1.0...
-
Page 7: Display Elements
Folder Name Display Indicator. In Media play mode, this indicator shows that the current content of the Clear text readout (40) is a folder name. This indicator is not used in FM mode. File Name Display Indicator. In Media play mode, this indicator shows the current content of the Clear text readout (40) is MX141M Manual v1.0... - Page 8 FM preset station buttons. Allows to remotely activate the stored FM station presets. These buttons only work in FM mode and are disabled in Media play mode. Note that manual tuning via the IR remote control is not possible. MX141M Manual v1.0...
-
Page 9: Internal Settings
MIC JUMPER: OFF (DEFAULT) Antenna mounting To achieve acceptable Bluetooth reception distances, the product must be operated with an antenna in line-of-sight to the paired device. Connect the supplied Bluetooth antenna to the front panel antenna socket (35). MX141M Manual v1.0... - Page 10 • into them. • • some time, during which the display shows a countdown. The time required is about 4 seconds per 100 tracks with a maximum of 2000 tracks (meaning Max. 80 seconds loading time). • MX141M Manual v1.0...
-
Page 11: Operation
WARNING - HEALTH RISK Excessive volume levels on headphones or other sound systems may cause hearing damage. Always turn the volume control to minimum when you switch the unit on, and avoid prolonged exposure to sound pressure levels exceeding 90dB. MX141M Manual v1.0... - Page 12 Please note that the maximum distance of operation between your source device and the MX141M depends on many factors, such as other interfering signals, the position of the MX141M in the room, the position of the source device in the room, and the antenna/Bluetooth hardware design of the source device.
- Page 13 Dimensions....W 482.6(427 without rack ears) x H 44.5 x D 152.0mm Weight ....2.6 kg MX141M Manual v1.0...
-
Page 14: Block Diagram
Block Diagram MX141M Manual v1.0... -
Page 15: Maintenance And Warranty
In many cases, malfunction of electro-mechanical parts occurs due to dust contamination, which may require cleaning of such contact surface and may cause cosmetic damage to other parts. We hence explicitly exclude any claims for exchange of damaged part due to mechanical or chemical impact. MX141M Manual v1.0... - Page 16 CONTRACTOR SERIES MX141M Manual v1.0...
