CVS Series
Pendant Loudspeakers
Models
CVS-P42W, CVS-P42B, CVS-P62TW, CVS-P62TB
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Contractor Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cloud Contractor Series

Summary of Contents for Cloud Contractor Series

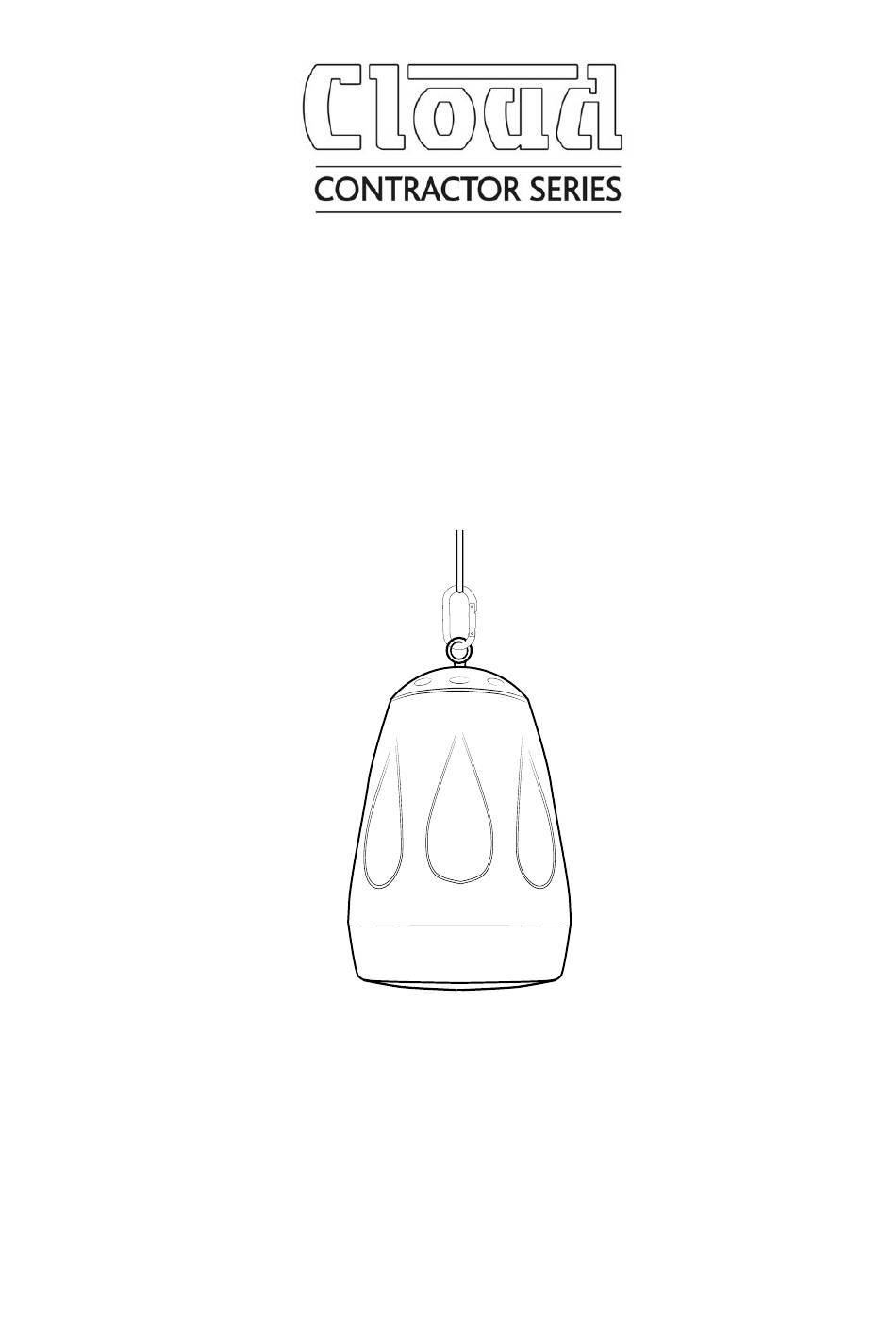

  • Page 1 CVS Series Pendant Loudspeakers Models CVS-P42W, CVS-P42B, CVS-P62TW, CVS-P62TB Installation Guide...

  • Page 2: Important Safety Instructions

    INTRODUCTON Thank you for purchasing a Cloud Pendant Speaker. These pendant Ceiling Speakers are the ideal choice for high ceiling and open space environments. These speakers have a 1-inch aluminium dome tweeter with a rust resistant aluminium grill and the UV resitant cabinet also makes them great for outdoor use. Cloud CVS speakers come with a 25V/70V/100V/8 ohm selector and provide a convenient way to equip a room with sound, where ceiling mount speakers cannot be used.

  • Page 3: Set Up And Operation

    SET UP AND OPERATION This speaker is designed to hang from the ceiling. A safety cable should be used when installing the speakers to avoid personal injury and damage to the speaker. 1. Set the speaker to the proper setting for your installation (25/70/100 V/8 ohm) 2.
  • Page 4 STANDARD 8 OHM APPLICATION CVS-P Series Installation Guide V1.0...
  • Page 5 25/70/100 V APPLICATION NOTE: The above example shows a total of five speakers. Using the 10W setting, you will need an amplifier with at least 5 x 10 W = 50 W. A good rule of thumb to remember is that the total number of speakers multiplied by the setting you select, cannot exceed the output power of the 25/70/100 V amplifier.
  • Page 6 HANGING INFORMATION Make sure the speaker is properly secured to the ceiling/building structure. Please use the correct screw/bolt as failure to do so may cause the speaker to become unsecured and cause damage and/or injury. OPTIONAL WALL MOUNT An optional wall mounting bracket part no. WB-P46W & WB-P46B is available. When mounting the speaker to the wall make sure the correct screws/bolts and anchors are used.

This manual is also suitable for:

Contractor cvs seriesContractor cvs-p42wContractor cvs-p62twContractor cvs-p42bContractor cvs-p62tb
