Summary of Contents for Oras Electra 6209Z

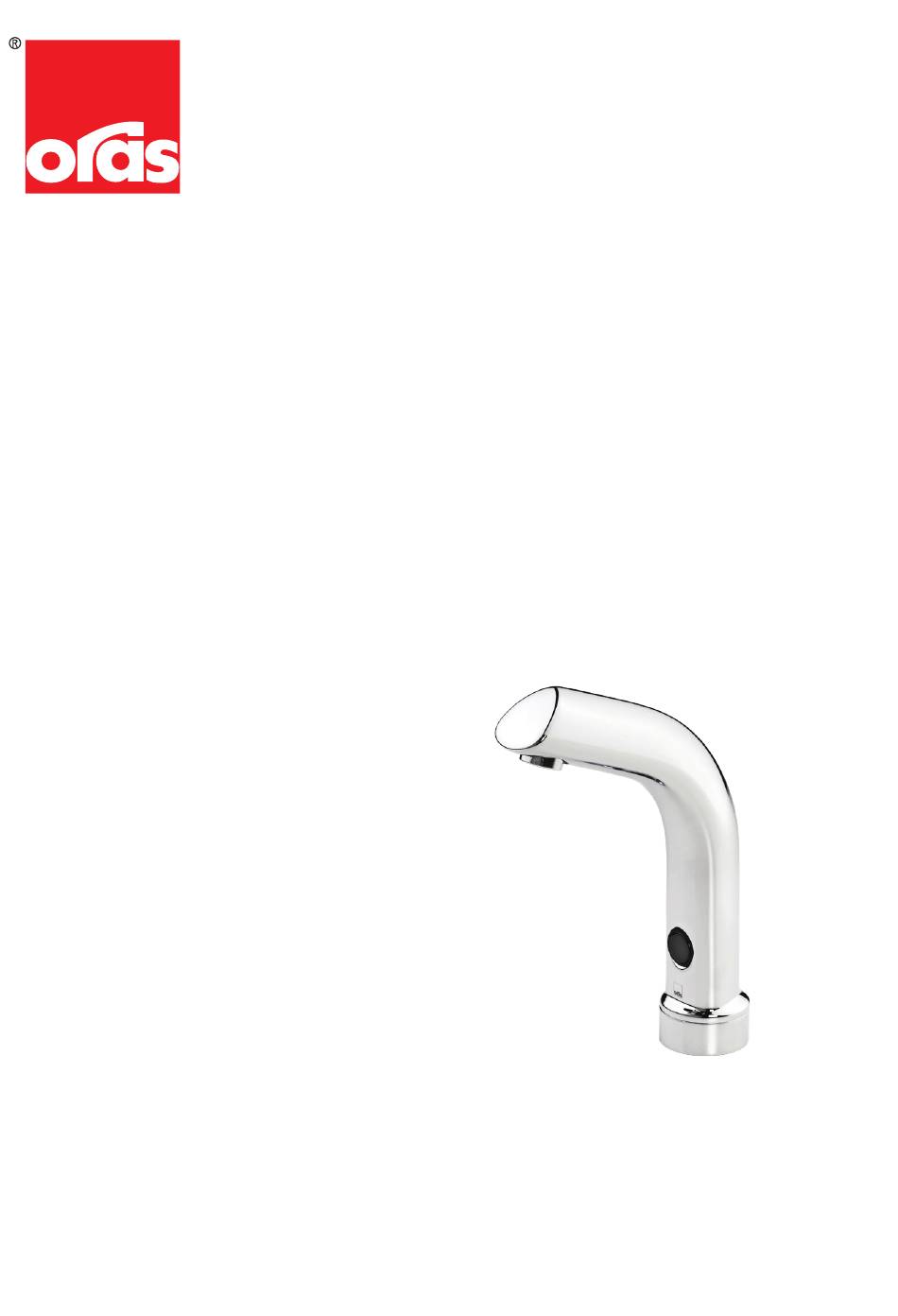

- Page 1 Oras Electra Installation and maintenance guide...
- Page 3 Google Play and the Google Play logo are trademarks of Google Inc. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Oras Group is under license. Other trademarks and trade names are those of their respective owners.
- Page 4 6209Z EN 15091 50 - 1000 kPa 0.05 l/s (300 kPa w/Controller) max. +20°C IP 67 24-48V (EMC 2014/53/EU , 2011/65/EU) 4 (12)
- Page 5 5 10 Factory default Factory settings Max. Flow time (sec) Automatic flush (h) Automatic flush period (sec) Cleaning mode (sec) After Flow (sec) Recognition distance (cm) PH 6-9 cleaning.oras.com ALCOHOL 5 (12)
-
Page 6: Operation
Operation This Electra faucet is turned on and shut off by a solenoid valve that is actuated by a photocell. When the glass or mug is held under the faucet, the solenoid valve opens and water starts to flow. The faucet shuts off automatically after the adjusted flow period. - Page 7 Toiminta Tämän Electra-allashanan avaamisesta ja sulkemisesta huolehtii magneettiventtiili, jonka toimintaa ohjaa valokenno. Vietäessä lasi valokennon tunnistusetäisyydelle avautuu magneettiventtiili ja hanasta alkaa virrata vettä. Hana sulkeutuu automaattisesti säädetyn virtaama-ajan kuluttua. Hana toimii parhaiten tasapohjaisen lasin kanssa. Asennus (Katso kuvat 1 ja 2) –...
- Page 8 Funktion Den beröringsfria blandaren öppnar och stänger med hjälp av en sensorstyrd magnetventil. När glaset hålls framför sensorn öppnas magnetventilen och vatten erhålls i glaset. Flödet stängs av automatiskt efter vald flödestid. Blandaren fungerar bäst med flatbottnade glas. Installation (bild 1 & 2) –...
- Page 12 Oras Group is a powerful European provider of sanitary fittings: the market leader in the Nordics and a leading company in Continental Europe. The company’s mission is to make the use of water easy and sustainable and its vision is to become the European leader of advanced sanitary fittings.
