EVENT
SERIES:

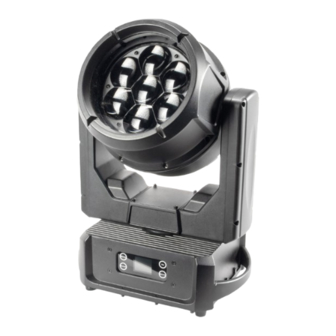

EVENT WASHFX 500 IP65
User Manual
Art No F7100787

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVENT WASHFX 500 IP65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flash EVENT WASHFX 500 IP65

Summary of Contents for Flash EVENT WASHFX 500 IP65

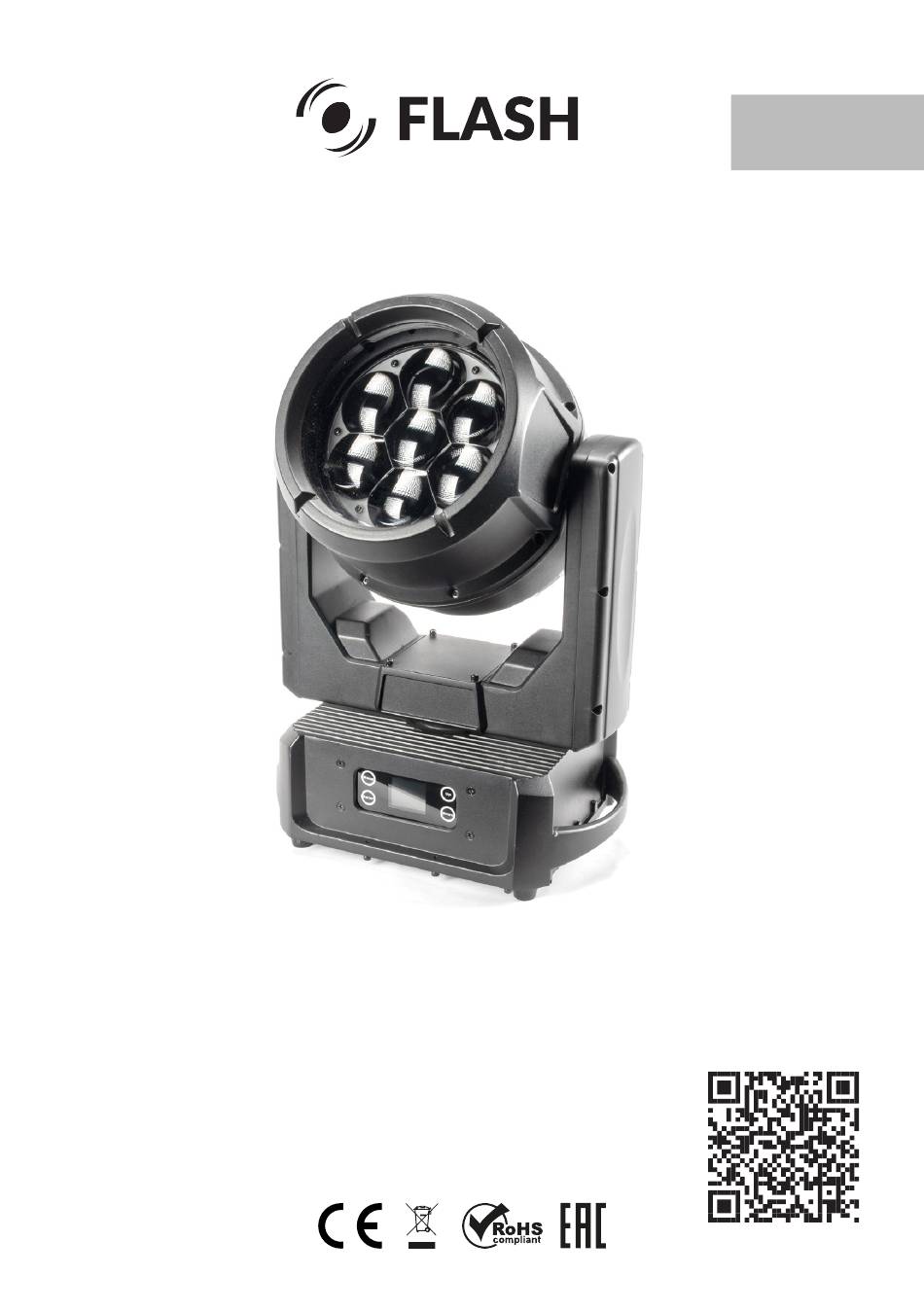

  • Page 1 EVENT SERIES: EVENT WASHFX 500 IP65 User Manual Art No F7100787...
  • Page 2 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART WARNING! The WASHFX has a powerful pan and tilt motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface.
  • Page 3 I N T R O D U C T I O N THANK YOU FOR PURCHASING EVENT WASHFX 500 IP65. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERA- TION, CAREFULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N...
  • Page 4 P R O D U C T I N F O R M AT I O N Light Source: Sound-controlled, Master, LED RGBW 7x60W RGBW Slave, ArtNet/sACN/RDM + 28 x 0.5 W RGB LEDs support - Software update via Power consumption: 400W RJ45 cable Power supply voltage: DMX channel mode:...
  • Page 5 C O N N E C T I O N The device is equipped with the following interfaces: 1. DMX (in/out): XLR 3(5)-pin socket 2. Power (in/out): TrueCon socket INSTALLATION GUIDELINES INSTALLATION GUIDELINES INSTALLATION GUIDELINES The connection is performed using cable with POWER AND DATA CABLES POWER AND DATA CABLES POWER AND DATA CABLES...
  • Page 6 The connection is performed using power cable with TrueCON connec- tor. The device must be operated by qualified personnel. CAUTION! In the case of cable damage do not attempt to repair. Repla- cement or repair can be made only on the manufacturer or by a person with appropriate permissions Using lamp, the change rate of power voltage should be within ±10%, if the voltage is too high, it will shorten the light’s life;...

  • Page 7: System Menu

    System Menu SYSTEM MENU Main Menu Sub Menu Option/Value Option/Value Address 026CH 049CH Channel 105CH 127CH Artnet Control Mode DMX+Artnet sACN DMX+sACN Linear Square Dimmer Mode I-Square S-Shape Slow Dimmer Speed Fast 400HZ 1200HZ 2000HZ 4000HZ LED Frequency 6000HZ 8000HZ Setting 16000HZ 24000HZ...
  • Page 8 Rotate 001~255 Chinese Language English Invert Screen AUTO Signal Keep NO/YES Screen Lock NO/YES Load Default NO.YES Internet 002.000.000.001 255.000.000.000 Universe Net(0~127) 000~127 Network Sub_Universe 000~127 000~255 Tile 000~255 Zoom 000~255 Rotation 000~255 000~255 Green 000~255 Blue 000~255 Manual White 000~255 Spark Red 000~255...
  • Page 9 LIGHTING CONSOLE PATCHING GUIDELINES The product is a versatile luminaire which combines two fixtures into one housing, allowing it to produce multiple unique lighting effects ty- pically not found in a single lighting fixture. The DMX layout is designed to offer a variety of options for controlling each fixture efficiently. The main fixture contains 7x 60W RGBW LEDs, while the Aura effects contains 28x0.5W RGB LEDs.

  • Page 10: Dmx Chart

    D M X C H A R T DMX CHART 26CH Mode(DMX,ArtNet,sACN) 26CH Mode(DMX,ArtNet,sACN) Channel Value Function Description 0-255 Pan Movement 0°- 540° Fine Pan Movement 0-255 16 bit adjustable positioning 0-255 Tilt Movement 0°- 205° Fine Tile Movement 0-255 16 bit adjustable positioning 0-255...
  • Page 11 6-55 Synchronous strobe From slow to fast 56-105 Pulse strobe From slow to fast 106-155 Random strobe From slow to fast From slow to fast 156-205 Fade Strobe1 Brightness from high to low From slow to fast Brightness from low to 206-255 Fade Strobe1 high...
  • Page 12 Aura LEDs is controlled by its color CH 21-35 Program 2 36-50 Program 3 51-65 Program 4 66-80 Program 5 81-95 Program 6 96-110 Program 7 111-125 Program 8 126-140 Program 9 141-155 Program 10 156-170 Program 11 171-185 Program 12 186-200 Program 13 201-215...
  • Page 13 151-155 Deep Amber R=255,G=166,B=000,W=000 156-160 Orange R=255,G=122,B=000,W=000 161-165 Light Rose R=255,G=141,B=031,W=000 166-170 Middle Rose R=217,G=130,B=028,W=000 171-175 Dark Pink R=255,G=109,B=033,W=000 176-180 Magenta R=255,G=020,B=015,W=000 181-185 Peacock Blue R=051,G=255,B=051,W=000 186-190 Steel Blue R=206,G=255,B=056,W=000 191-195 Light Blue R=074,G=255,B=082,W=000 196-200 Dark Blue R=000,G=186,B=255,W=000 201-205 Leaf Green R=206,G=255,B=000,W=000 206-210 Dark Green...
  • Page 14 49CH Mode (Support Dmx /Artnet/sACN. when u use DMX+Artnet mode, the 1-17CH are controlled by DMX protocol) 49CH Mode（ （ Support Dmx /Artnet/sACN. when u use DMX+Artnet mode, the 1- 17CH are controlled by DMX protocol） ） Channel Value Function Description 0-255 Pan Movement...
  • Page 15 Aura LEDs built-in 0-255 Program1-program16 program The color-changes of the build-in effects of 6-20 Program 1 Aura LEDs is controlled by its color CH 21-35 Program 2 36-50 Program 3 51-65 Program 4 66-80 Program 5 81-95 Program 6 96-110 Program 7 16CH 111-125...
  • Page 16 81-85 Medium Amber R=255,G=135,B=000,W=000 86-90 Gold Amber R=255,G=100,B=000,W=000 91-95 Dark Amber R=255,G=065,B=000,W=000 96-100 Sunrise Red R=255,G=083,B=002,W=000 101-105 Light Pink R=255,G=112,B=000,W=141 106-110 Medium Pink R=255,G=087,B=000,W=107 111-115 Pink Carnation R=255,G=107,B=000,W=130 116-120 Light Lavender R=243,G=117,B=039,W=197 121-125 Sky Blue R=000,G=255,B=135,W=000 126-130 Just Blue R=000,G=194,B=130,W=000 131-135 Dark yellow green R=041,G=219,B=000,W=000...
  • Page 17 120-136 4500K R=255,G=071,B=043,W=255 137-153 4000K R=255,G=055,B=034,W=255 154-170 3500K R=255,G=029,B=024,W=255 120-136 4500K R=255,G=071,B=043,W=255 171-187 3200K R=255,G=011,B=019,W=255 137-153 4000K R=255,G=055,B=034,W=255 188-204 3000K R=255,G=004,B=016,W=255 154-170 3500K R=255,G=029,B=024,W=255 205-221 2700K R=255,G=000,B=009,W=203 171-187 3200K R=255,G=011,B=019,W=255 222-238 2500K R=255,G=000,B=004,W=172 188-204 3000K R=255,G=004,B=016,W=255 239-255 2000K R=255,G=000,B=000,W=105 205-221 2700K R=255,G=000,B=009,W=203 22CH...
  • Page 18 0-255 Reset 0-200 Zoom/lens-rotation 201-215 The value stops for 5 seconds motors reset 216-230 P/T motors reset The value stops for 5 seconds 231-245 The value stops for 5 seconds Overall reset 246-255 10CH 0-255 60W Master Dimmer Strobe function of RGBW 0-255 （60W ）LEDs 6-55...
  • Page 19 0-255 Marco Color 6-10 R=000,G=255,B=255,W=000 11-15 Green R=255,G=255,B=000,W=000 16-20 Blue R=255,G=000,B=255,W=000 21-25 Cyan R=156,G=126,B=000,W=000 26-30 Yellow R=152,G=115,B=009,W=000 31-35 Magenta R=198,G=114,B=009,W=000 36-40 Medium Yellow R=255,G=056,B=000,W=000 41-45 Straw Tint R=255,G=135,B=000,W=000 46-50 Surprise Peach R=255,G=100,B=000,W=000 51-55 Fire R=255,G=065,B=000,W=000 56-60 Medium Amber R=255,G=083,B=002,W=000 61-65 Gold Amber R=255,G=112,B=000,W=141 66-70...
  • Page 20 211-215 Apricot R=255,G=046,B=002,W=000 216-220 Pale Gold Color temperature 2000K-8000K 221-225 Deep Orange 226-230 Flame Red R=255,G=182,B=110,W=255 0-255 color temperature preset 0-17 Off light 18-34 8000K R=255,G=121,B=073,W=255 35-51 7500K R=255,G=106,B=066,W=255 52-68 6500K R=255,G=090,B=055,W=255 69-85 6000K R=255,G=071,B=043,W=255 86-102 5600K R=255,G=055,B=034,W=255 03-119 5000K R=255,G=029,B=024,W=255 19CH 120-136...
  • Page 21 127CH Mode（ （ Support Dmx /Artnet/sACN. when u use DMX+Artnet 127CH Mode (Support Dmx /Artnet/sACN. when u use DMX+Artnet mode, the 1-9CH are controlled by DMX protocol). mode, the 1-9CH are controlled by DMX protocol） ） Channel Value Function Description 0-255 Pan Movement 0°- 540°...
  • Page 22 71-75 Surprise Peach R=198,G=114,B=009,W=000 76-80 Fire R=255,G=056,B=000,W=000 81-85 Medium Amber R=255,G=135,B=000,W=000 86-90 Gold Amber R=255,G=100,B=000,W=000 91-95 Dark Amber R=255,G=065,B=000,W=000 96-100 Sunrise Red R=255,G=083,B=002,W=000 101-105 Light Pink R=255,G=112,B=000,W=141 106-110 Medium Pink R=255,G=087,B=000,W=107 111-115 Pink Carnation R=255,G=107,B=000,W=130 116-120 Light Lavender R=243,G=117,B=039,W=197 121-125 Sky Blue R=000,G=255,B=135,W=000 126-130...
  • Page 23 86-102 5600K R=255,G=106,B=066,W=255 03-119 5000K R=255,G=090,B=055,W=255 120-136 4500K R=255,G=071,B=043,W=255 137-153 4000K R=255,G=055,B=034,W=255 154-170 3500K R=255,G=029,B=024,W=255 171-187 3200K R=255,G=011,B=019,W=255 188-204 3000K R=255,G=004,B=016,W=255 205-221 2700K R=255,G=000,B=009,W=203 222-238 2500K R=255,G=000,B=004,W=172 239-255 2000K R=255,G=000,B=000,W=105 14CH 0-255 LED 1 Red Dark to light 15CH 0-255 LED 1 Green Dark to light 16CH...
  • Page 24 FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
