- Page 1 INSTRUCTION MANUAL MODEL 3265 WETTABILITY TESTER Revision A – January 2023 P/N: 3265-1050 S/N: ____________ 2001 N. Indianwood Ave. Broken Arrow, Oklahoma 74012 U.S.A. Telephone: 918-250-7200 Fax: 918-459-0165 E-mail: chandler.sales@ametek.com Website: http://www.chandlereng.com...
- Page 2 This publication contains the following trademarks and/or registered trademarks: AMETEK, CHANDLER ENGINEERING. These trademarks or registered trademarks and stylized logos are all owned by AMETEK, Inc. All other company, product and service names and logos are trademarks or service marks of...
-
Page 3: Table Of Contents
Control Box Front Panel Description ................ 2-2 Temperature Controller / Wettability Indicator Operation ........2-3 Sample Preparation for Wettability Test..............2-4 Model 3265 Wettability Test Procedure ..............2-4 Mixing a Cement Slurry..................... 2-5 Resetting Thermal Protection ..................2-5 Section 3 – Maintenance ............3-1 Tools Required ........................ - Page 4 TABLE OF CONTENTS This page is intentionally left blank.
-
Page 5: General Information

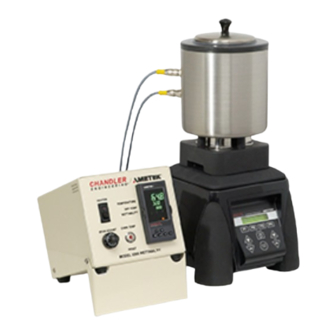

This is accomplished by measuring the electrical conductivity between electrode surfaces. The Model 3265 also provides all the functionality of the Model 3260 Constant Speed Mixer, which features a digital speed control and display with a built-in tachometer and programming capabilities. -
Page 6: Features And Benefits
• Insulated cup assembly provides safe handling. • Heavy-duty industrial-grade mixer assures its trouble-free and long-life operation. Specifications Input Voltage (Model 3265-120V): 120 VAC ± 10% (Model 3265-230V): 230 VAC ± 10% Input Current (Model 3265-120V): (Model 3265-230V): Frequency:... -
Page 7: Symbols Used On Equipment
PREFACE Symbols Used on Equipment Symbol Meaning Protective Conductor Terminal Documentation must be consulted in all cases where this caution symbol is marked. Hot Surface Pinch Point... -
Page 8: Safety Requirements
PREFACE Safety Requirements READ BEFORE ATTEMPTING OPERATION OF INSTRUMENT The Chandler Engineering Model 3265 Wettability Tester is designed for operator safety. Any instrument that is capable of high temperatures should always be operated with CAUTION!! To ensure safety: • Locate the instrument in a low traffic area. -
Page 9: Section 1 - Installation
SECTION 1 – INSTALLATION Section 1 – Installation Unpacking the Instrument The following components are included with the complete 3265 system • Mixer base • Sample cup assembly (1-Liter) with lid • Control box • Cables (3) Accessories supplied with instrument (check against accessory list inside the packing). - Page 10 SECTION 1 – INSTALLATION This page is intentionally left blank.
-
Page 11: Section 2 - Operating Instructions
SECTION 2 – OPERATING INSTRUCTIONS Section 2 – Operating Instructions Operation The mixer control includes four speed control buttons (P1-P4) located just below the display. The program buttons allow the mixer to operate at preset speeds for preset time intervals. Factory default settings for all program Buttons is 4,000 RPM for 15 seconds followed by 12,000 RPM for 35 seconds. -
Page 12: Control Box Front Panel Description
SECTION 2 – OPERATING INSTRUCTIONS 6. Start/Stop Button – Stops the mixer if it is currently running. Starts the mixer in manual speed control mode if it is currently stopped. Control Box Front Panel Description 1. Heater – Enables or disables the heater 2. -
Page 13: Temperature Controller / Wettability Indicator Operation
SECTION 2 – OPERATING INSTRUCTIONS Temperature Controller / Wettability Indicator Operation Alarm Beacon Upper Readout Middle Readout Lower Readout Bar Graph Program Status Manual Mode Output Indicators Alarm Beacon: Flashes when any new alarm occurs (e.g. Over Temperature or Sensor Break). The beacon will stay illuminated when an alarm is acknowledged but still active. -
Page 14: Sample Preparation For Wettability Test
194 F (90 C). Fluids should be cooled below 194 C) before releasing pressure. The Model 3265 Wettability Tester has been designed for use at atmospheric pressure. Test temperature should not exceed 194 F (90 Model 3265 Wettability Test Procedure Note: The span should be adjusted with the spacer fluid being tested before each test (steps 1-8). -
Page 15: Mixing A Cement Slurry
Resetting Thermal Protection Note: this is separate from the Over Temp button on the Control Box (described above). • The 3265 Mixer is equipped with an automatic reset switch to protect the motor from overheating. • If the mixer stops running due to heavy use, push the “STANDBY” button and unplug the power cord. -
Page 17: Section 3 - Maintenance
Basic hand tools. Cleaning and Service Tips Most of the problems that occur with the 3265 mixer motor are due to inadequate cleaning of the mixing blade assembly. If the blade assembly becomes contaminated with cement, the assembly will bind and cause the motor to overheat. The blending assembly, mixing cup and mixer base should be thoroughly cleaned after each use. -
Page 18: Calibration Procedure
SECTION 3 – MAINTENANCE Calibration Procedure Mixing Speed The mixing speed can be checked using a traceable tachometer. Temperature Sensor 1. To check temperature sensor calibration, heat water in the mixing cup to 100 2. Using a NIST traceable thermometer, check that the temperature is 100 F +/- 3 3. -
Page 19: Adjusting Operational Parameters (Advanced)
SECTION 3 – MAINTENANCE Adjusting Operational Parameters (Advanced) The mixer is equipped with factory default values for all operational parameters, which have been carefully selected for optimal operation of the unit. Although instructions for doing so are included here, it is generally not required or recommended to change these values. 1. -
Page 20: Maintenance Schedule
SECTION 3 – MAINTENANCE 8. When finished, press and hold the Page button until “LEv3” appears on the Upper Readout. Use the Lower button to change to “LEv1” and press the Page button to return to Level 1 (Normal Operation). Maintenance Schedule MAINTENANCE SCHEDULE INSTRUMENT NAME... -
Page 21: Section 4 - Replacement Parts
Section 4 - Replacement Parts Part Number Description 30-0048 BLENDING ASSY,MODIFIED 30-0049 BLADE,HARDENED,1 QT MIXER C15392 CABLE,TURCK, RK4.5T-2-RS4.5T C07709 WASHER,FLAT,SS,3/4,WARING C07710 WASHER,FLAT,RB,3/4,WARING P-1663 ORING,VITON,AS011-75 3265-0073 SPACER, ELECTRODE 3265-0078 SPACER, ELECTRODE, OUTER C19098 SCREW,PHMS,SS,SEALING,8-32x3/4L,VITON ORING C19053 WASHER,PRESSURE,1/4",0.255"ID,0.562"OD C19051 WASHER,FKM,1/4"SCREW,0.23"ID,0.625"OD C18931 FUSE,0.100A,250V,5x20,TIMEDELAY 120V ONLY C11036 FUSE,4.000A,250V,5X20,TIMEDELAY... - Page 22 SECTION 4 – REPLACEMENT PARTS This page is intentionally left blank.
-
Page 23: Section 5 - Drawings And Schematics
Section 5 - Drawings and Schematics Drawing Number Description 3265-120V ASSY, WETTABILITY TESTER, 120V 3265-230V ASSY, WETTABILITY TESTER, 230V 30-0048 BLENDING ASSY,MODIFIED 3265-0050-120V-WD WIRING DIAGRAM, 3265 WETTABILITY 120V 3265-0050-230V-WD WIRING DIAGRAM, 3265 WETTABILITY 230V 3265-0080-WD WIRING DIAGRAM, 3265 WETTABILITY CUP... - Page 24 DESCRIPTION 3265-0050-120V CONTROLLER, 3265, 120V 3260-110V MIXER,1-QT,110V 3265-0080 CUP,MODIFIED,WETTABILITY C15392 CABLE,TURCK, RK4.5T-2-RS4.5T 3265-ACCESS-120V ACCESSORY KIT, MODEL 3265, 120V 3265-TP PROC,TEST,WETTABILITY 3265-1050 MANUAL,3265 WETTABILITY TESTER CHANDLER ENGINEERING BREAK EDGES, DEBURR DRAWN: BCH 1/9/2023 THIS DOCUMENT AND THE DRAWINGS AND TECHNICAL DATA CONTAINED HEREON ARE THE...
- Page 25 DESCRIPTION 3265-0050-230V CONTROLLER, 3265, 230V 3260-220V MIXER,1-QT,220V 3265-0080 CUP,MODIFIED,WETTABILITY C15392 CABLE,TURCK,RK4.5T-2-RS4.5T 3265-ACCESS-230V ACCESSORY KIT, MODEL 3265,230V 3265-TP PROC,TEST,WETTABILITY 3265-1050 MANUAL,3265 WETTABILITY TESTER CHANDLER ENGINEERING BREAK EDGES, DEBURR DRAWN: BCH 1/6/2023 THIS DOCUMENT AND THE DRAWINGS AND TECHNICAL DATA CONTAINED HEREON ARE THE...
- Page 26 DESCRIPTION DATE APPROVED NOTES: ECN T6603; ADDED KRYTOX GREASE 5/12/15 LUBRICATE SHAFT AND ORING WITH GREASE (C11413). ECN T8022; CHG ORING AND GREASE 3/7/2018 BLADE FACES DOWN. TIGHTEN ITEM 1 WITH A NUT DRIVER, HAND TIGHT (APPROX. 30 in lbs). ECN T8429;...
- Page 30 cut out postcards on dotted lines Please Send Us Your Comments on This Manual Model Number ____________________________ Serial Number __________________________ Printing Date of this manual (from the Title Page) ______________ Please circle a response for each of the following statements. Use: (1)= Strongly agree (2) =Agree (3) =Neutral, no opinion (4) =Disagree (5) =Strongly disagree a) The manual is well organized.
- Page 31 cut out postcards on dotted lines...
- Page 32 4903 W. Sam Houston Parkway, N., Suite A-400, Houston, TX 77041 2001 North Indianwood Avenue, Broken Arrow, OK 74012 Tel: +1 713-466-4900 Fax: +1 713-849-1924 Tel: +1 918-250-7200 Fax: +1 918-459-0165 e-mail: chandler.sales@ametek.com www.chandlereng.com Printed in the U.S.A. © 2008, by AMETEK, Inc. All rights reserved. XM808PDF (360000)
