Insignia NS-AV511 Surround Sound Receiver

Components

Features

• 90 Watts per Channel @ 8 ohms
• Rocketboost™ Expandable Wireless Audio
Technology: sends wireless audio for surround
sound, subwoofer, and left/right channels;
receives wireless audio from Rocketboost devices
(Requires Rocketboost Wireless Card, RF-RBCARD,
sold separately)
• HDMI (Audio Return Channel, 3D), Deep-Color,
x.v.Color*, Lip Sync, DTS-HD Master Audio,
DTS-HD High Resolution Audio, Dolby® TrueHD,
Dolby® Digital Plus, DSD and Multi-CH PCM
• 4 HDMI Inputs and 1 Output
• 3 Digital Inputs (2 Optical/1 Coaxial)
• Component Video Switching (2 Inputs/1 Output)
• 40 FM/AM Presets
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Direct Mode
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit Processing
DSP
• Crossover Adjustment
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control Function (up to 400 ms)
• On-Screen Display via HDMI
* "x.v.Color" is a trademark of Sony Corporation.
Rocketboost Wireless Card Ready
Installing a Rocketboost
Wireless Card (sold separately)
enables this product to send
and receive wireless audio with
your other Rocketboost
products.
What is Rocketboost?
Rocketboost is expandable wireless digital audio.
• Products with Rocketboost™ technology let you
easily expand your listening experience
throughout your home.
• Rocketboost does not interfere with other
wireless products in your home.
• Rocketboost is uncompressed digital audio
compatible with all audio formats such as Dolby,
TrueHD, and DTS-HD Master Audio used with
Blu-ray.
When you see the Rocketboost logo on any
product, it has been designed to work with other
Rocketboost products, no matter who
manufactures them.

Package contents

• Receiver
• Remote control
• AA batteries (2)
• FM antenna
• AM antenna
• User Guide

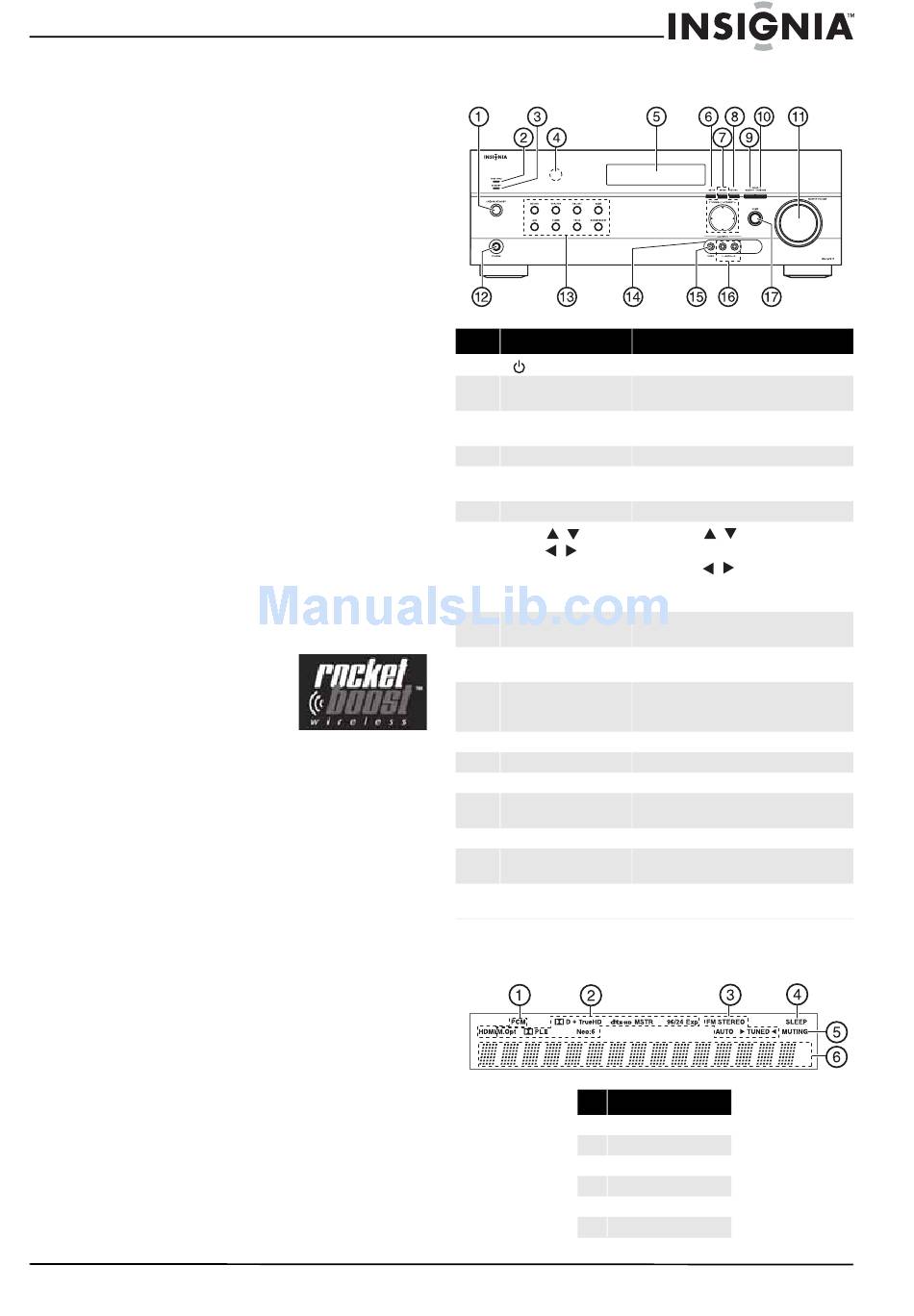

Front controls

Item Description
1
|/
2 HDMI THRU indicator
3 STANDBY indicator
4 Remote control sensor
5

Display

6 SETUP button
7
TUNING
PRESET
ENTER
8 RETURN button
9 MEMORY button
10 TUNING MODE button
11 MASTER VOLUME knob
12 Headphone jack
13 Input selector buttons
14 Protective cap
15 AUX INPUT VIDEO jack
16 AUX INPUT AUDIO L/R
jacks
17 HOME button
Display
www.insigniaproducts.com
Function
ON/STANDBY button Press to turn on your stereo receiver.
Lights when the HDMI pass-through function is
activated in standby mode.
Lights red when your stereo receiver is in
standby mode.
Receives the signal from the remote control.
See "Display" on page 3 for additional
information.
Press to open the on-screen menus.
Press TUNING
/
next or previous station.
/
Press PRESET
next or previous station preset.
Press ENTER to confirm a selection.
In menu mode, press to return to the main
menu.
Press to save a radio station preset. Press with
the TUNING MODE button to clear presets.
Press to turn on the receiver tuning mode and
listen to the radio. Press with the MEMORY
button to clear presets.
Turn to increase or decrease the volume.
Plug your headphones into this jack.
Press to select the input signal source you want.
A rubber cap protecting the A/V jacks. Remove
the cap when using the jacks.
Plug an external video source into this jack.
Plug an external sound source into this jack.
Press to access audio settings. See "Changing
audio settings" on page 23.
# Indicator
1 Audio input indicator
2 Listening mode indicator
3 Tuning indicators
4 SLEEP indicator
5 MUTING indicator
6 DIGITAL display
/ to tune the radio to the
/ to tune the radio to the
3
