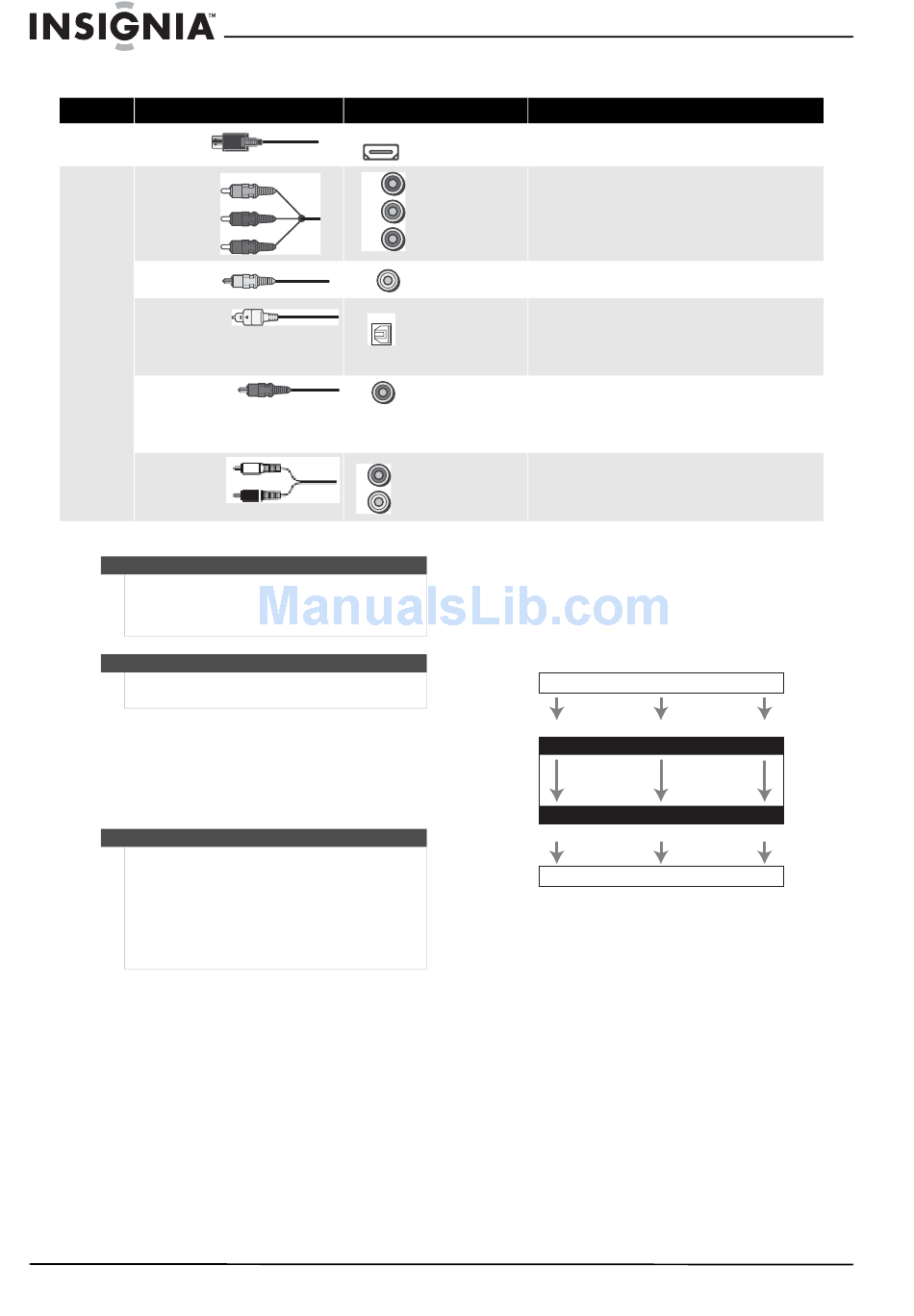

AV cables and jacks
Signal Cable
Video and
HDMI
audio
Video
Component video

Composite video

Audio
Optical digital audio
Coaxial digital audio
Analog audio (RCA)
Notes
The AV receiver's optical digital jacks have
shutter-type covers that open when an optical plug is
inserted and close when it's removed. Push plugs in
all the way.
Caution
To prevent shutter damage, hold the optical plug
straight when inserting and removing.
Deciding which connections to use
The receiver supports several connection formats
for compatibility with a wide range of AV
equipment. The format you choose depends on the
formats supported by your components. Use the
following sections as a guide.
Notes
• The on-screen setup menus appear only on a TV
that is connected to the HDMI OUT. If your TV is
connected to the MONITOR OUT V or the
COMPONENT VIDEO OUT, use the receiver's
display when changing settings.
• The on-screen setup menus are displayed when
there is no video input, or the video input is
480p, 720p, 1080i, or 1080p.
8
Jack
HDMI
Y
Y
Pb/Cb
Pb
Pr/Cr
Pr
Y
OPTICAL
DIGITAL
White
L
Red
R
www.insigniaproducts.com
Insignia NS-AV511 Surround Sound Receiver
Description
HDMI connections can carry digital video and audio.
Component video is a better alternative to Composite video, and
Green
is used for TVs, VCRs, DVD and Blu-ray players.
Blue
Red
Composite video is commonly used on TVs, VCRs, and other video
Yellow
equipment.
Optical digital connections allow you to enjoy digital sound such
as PCM or Dolby Digital. The audio quality is the same as coaxial.
Note: The available sampling rate for PCM input signals is
32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the
HDMI connection.
Coaxial digital connections allow you to enjoy digital sound such
Orange
as PCM or Dolby Digital. The audio quality is the same as optical.
Note: The available sampling rate for PCM input signals is
32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the
HDMI connection.
Analog audio connections (RCA) carry analog audio.
Video connection formats
Video components can be connected by using any
one of the following video connection formats
(shown best first): HDMI, component video, or
composite video.
Blu-ray Disc, DVD player, etc.
Composite
Composite
When choosing a connection format, bear in mind
that the receiver does not convert between formats,
so only outputs of the same format as the input will
output the signal.
Audio connection formats
Audio components can be connected by using any
of the following audio connection formats (shown
best first):
• HDMI
• Optical
• Coaxial
• Analog
Video Signal Flow Chart
Component HDMI
IN
MONITOR OUT
Component HDMI
TV, projector, etc.
