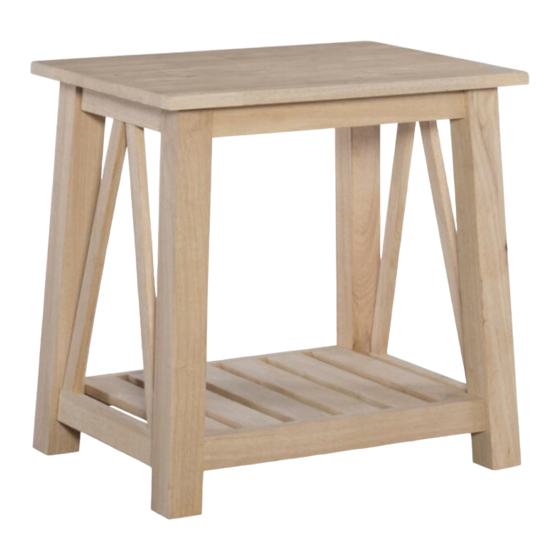

- Page 1 ASSEMBLY INSTRUCTIONS Description : SURREY NARROW END TABLE Item No. : OT-16E2 ITEM NO.: OT-16E2 Printed in Vietnam ISSUED DEC 16, 2020 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. -
Page 3: Part List
PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Bottom shelf HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch... - Page 4 STEP 1 Attach leg (B) to top (A) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (7). STEP 2 Insert bottom shelf (C) into legs (B) as shown below. Attach top (A) to the other leg (B) with bolts (1), and washers (2) and (3).
- Page 5 STEP 3 Attach top (A) and bottom shelf (C) to legs (B) with screws (5) as shown below. Tighten with a screwdriver. Attach bottom shelf (C) to legs (B) with screws (4) and brackets (6) as shown below. Tighten with a screwdriver.
