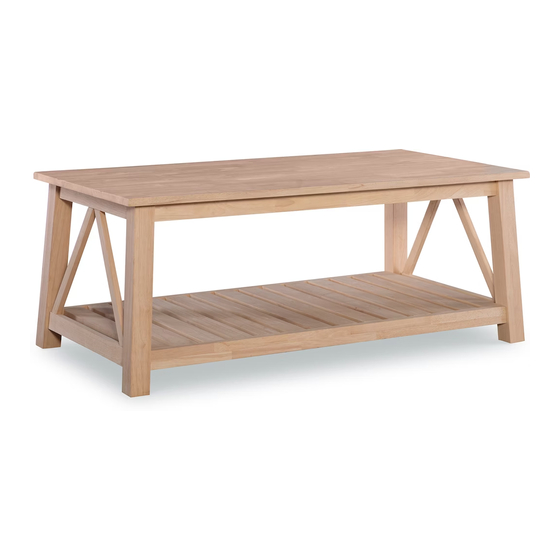

- Page 1 ASSEMBLY INSTRUCTIONS Description : SURREY COFFEE TABLE Item No. : OT-16C ITEM NO.: OT-16C Printed in Vietnam ISSUED DEC 16, 2020 - 1 -...
-
Page 2: Before Assembly
Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: OT-16C Printed in Vietnam ISSUED DEC 16, 2020 - 2 -... -
Page 3: Part List
(M6 x 35mm) (6.5 x11mm) Flat Washer Short Screw (6.5 x19mm) (3.5 x 15mm) Long Screw L-bracket (M4 x 50mm) Allen key (M4 x 30mm x 110mm) ITEM NO.: OT-16C Printed in Vietnam ISSUED DEC 16, 2020 - 3 -... - Page 4 Insert bottom shelf (C) into legs (B) as shown below. Attach top (A) to the other leg (B) with bolts (1), and washers (2) and (3). Tighten with Allen key (7). ITEM NO.: OT-16C Printed in Vietnam ISSUED DEC 16, 2020...
- Page 5 Attach top (A) and bottom shelf (C) to legs (B) with screws (5) as shown below. Tighten with a screwdriver. Attach bottom shelf (C) to legs (B) with screws (4) and brackets (6) as shown below. Tighten with a screwdriver. STEP 3 ITEM NO.: OT-16C Printed in Vietnam ISSUED DEC 16, 2020 - 5 -...
