Larson Electronics EPSLED-80 Series Instruction Manual

WARNING
TO AVOID THE RISK OF FIRE, EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,
INSPECTED AND MAINTAINED BY A QUALIFIED ELECTRICIAN ONLY, IN ACCORDANCE WITH ALL
APPLICABLE ELECTRICAL CODES.
TO AVOID ELECTRIC SHOCK:
•
BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.
•
PRODUCT MUST BE CONNECTED TO A WIRING SYSTEM WITH AN EQUIPMENT-GROUNDING
CONDUCTOR.
TO AVOID EXPLOSION:
•
MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.
•
ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS
ATMOSPHERE.
•
DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT
NAMEPLATE.
•
DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR
DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.
•
ALL FASTENERS SHOULD BE PROPERLY SEATED.
The EPSLED-80 Explosion Proof LED Strobe Light from Larson Electronics is rated for Class I, II and III combustible sites
and produces 4 flashes per second. This IP67 rated LED lamp features 2400 lumens of illumination and heavy-duty cast
aluminum housing. Equipped with a 3/4" NPT hub, the explosion proof unit is offered in a selection of light colors and
mounting options.
Mounting

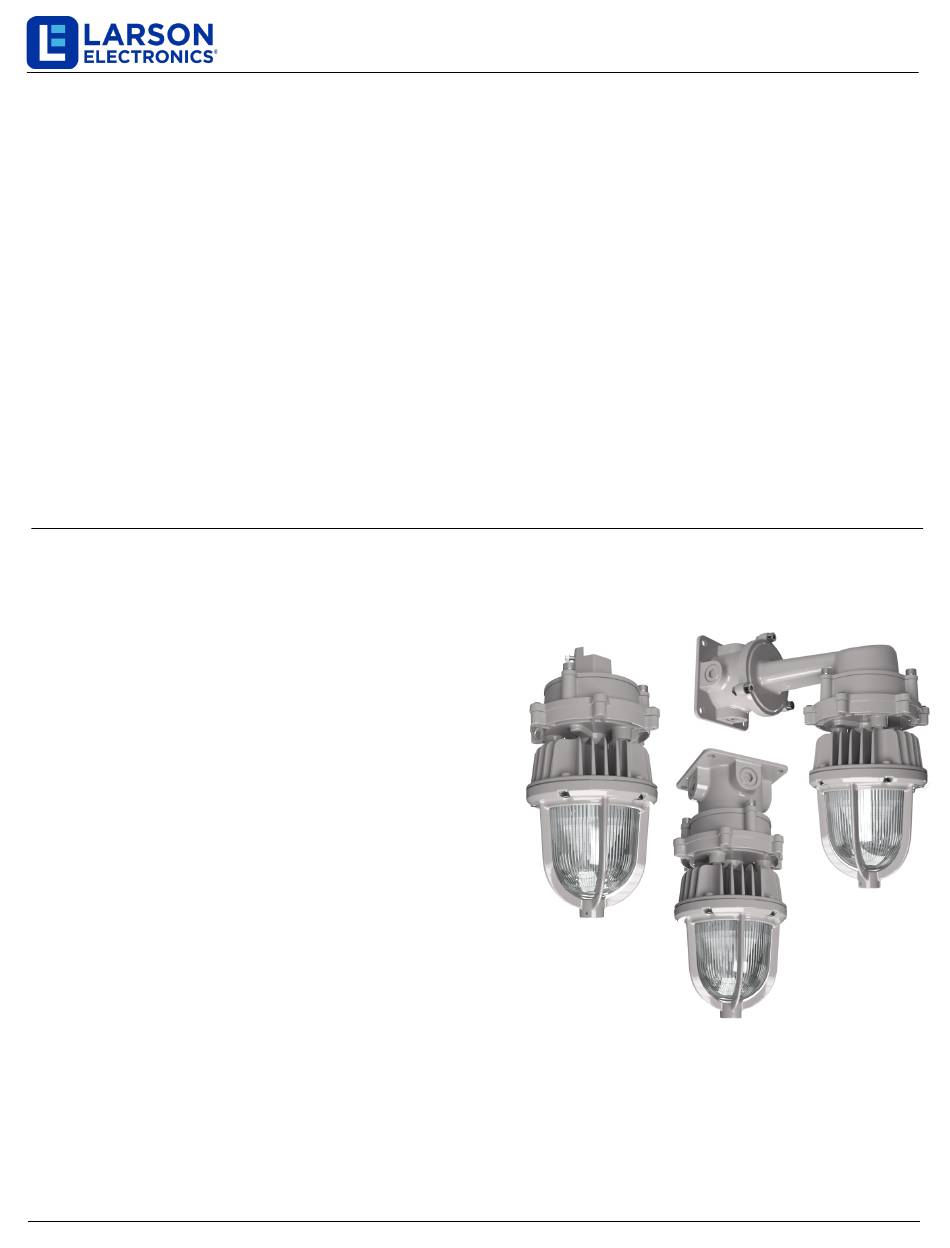

The EPSLED-80 series LED light fixture is available with several
different mounting configurations, specified when ordering. Find
your chosen mount configuration below for specifics:
Pendant:
Pendant mount lights will get a threaded plate that attaches to the
top of the fixture to allow for pipe to be threaded directly into it.
Using the provided gasket in the groove on the underside of the
plate, pull the wiring through the threaded hole on the plate and
secure it to the fixture using the provided hardware kit. There
should be one screw and one lock washer for each hole. Be sure
the gasket stays in position and provides a good seal once the
screws are secure. Fixture is now ready to be pendant mounted.
Follow all applicable local and national electrical and building
codes when completing the installation.
Ceiling:
Ceiling mount lights will get a surface mount junction box to mount
to the top of the fixture that will allow it to be mounted to any flat
surface capable of supporting the load. Using the provided gasket
to seal between the junction box and the fixture, attach the junction box to the fixture using the provided hardware kit, pulling
the wiring into the junction box to allow for connections. There should be one screw and one lock washer for each hole. Be
sure the gasket stays in position and provides a good seal once the screws are secure. Fixture is now ready to be surface
mounted using the pre-drilled mounting holes in the flange of the base.
Wall:
Wall mount lights will get a surface mount junction box and elbow extension to mount to the top of the fixture that will allow it
to be mounted to a wall. Using the provided gasket to seal between the junction box and elbow extension, attach the two
pieces together using the provided hardware, as shown in the picture above. Once the elbow extension and junction box
Larson Electronics, LLC
Explosion Proof LED Strobe Light
Instruction Manual
Phone: (877) 348-9680
-Pendant
Fax: (903) 498-3364
EPSLED-80 Series
-Ceiling
www.larsonelectronics.com
-Wall
1 of 2
