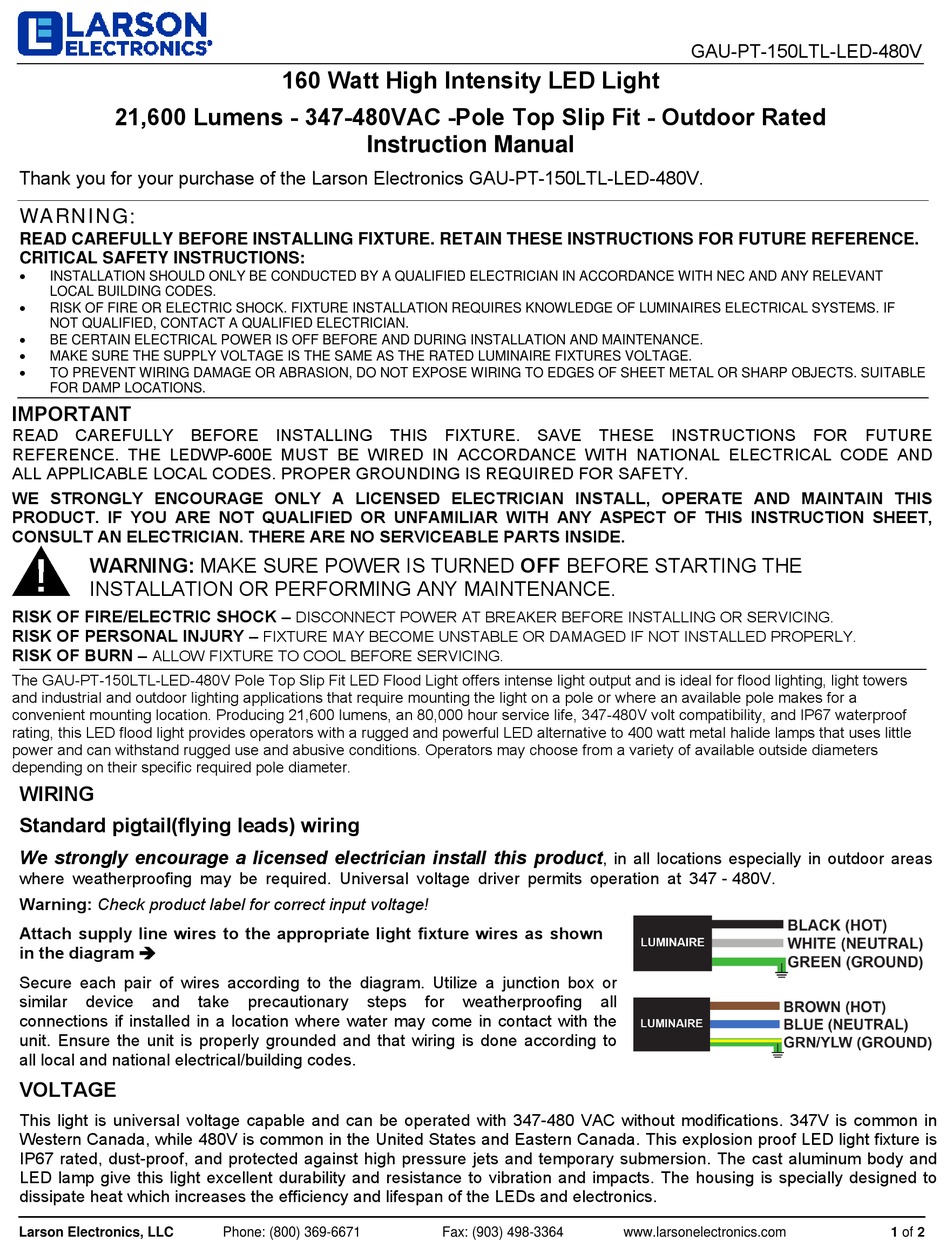

Larson Electronics GAU-PT-150LTL-LED-480V Instruction Manual

21,600 Lumens - 347-480VAC -Pole Top Slip Fit - Outdoor Rated
Thank you for your purchase of the Larson Electronics GAU-PT-150LTL-LED-480V.
WARNING:
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CRITICAL SAFETY INSTRUCTIONS:
•
Installation SHOULD ONLY BE CONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY RELEVANT
LOCAL BUILDING CODES.
•
RISK OF FIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF LUMINAIRES ELECTRICAL SYSTEMS. IF
NOT QUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.
•
BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.
•
MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE RATED LUMINAIRE FIXTURES VOLTAGE.
•
TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP OBJECTS. SUITABLE
FOR DAMP LOCATIONS.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LEDWP-600E MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND
ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.

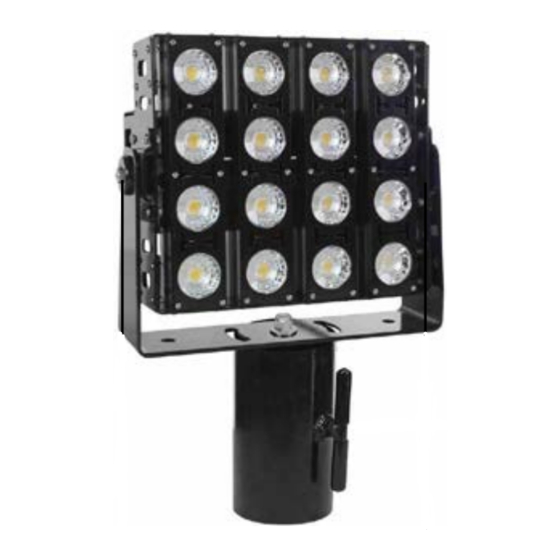

The GAU-PT-150LTL-LED-480V Pole Top Slip Fit LED Flood Light offers intense light output and is ideal for flood lighting, light towers
and industrial and outdoor lighting applications that require mounting the light on a pole or where an available pole makes for a
convenient mounting location. Producing 21,600 lumens, an 80,000 hour service life, 347-480V volt compatibility, and IP67 waterproof
rating, this LED flood light provides operators with a rugged and powerful LED alternative to 400 watt metal halide lamps that uses little
power and can withstand rugged use and abusive conditions. Operators may choose from a variety of available outside diameters
depending on their specific required pole diameter.

WIRING

Standard pigtail(flying leads) wiring
We strongly encourage a licensed electrician install this product
where weatherproofing may be required. Universal voltage driver permits operation at 347 - 480V.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light fixture wires as shown
in the diagram 
Secure each pair of wires according to the diagram. Utilize a junction box or
similar device and
connections if installed in a location where water may come in contact with the
unit. Ensure the unit is properly grounded and that wiring is done according to
all local and national electrical/building codes.

VOLTAGE

This light is universal voltage capable and can be operated with 347-480 VAC without modifications. 347V is common in
Western Canada, while 480V is common in the United States and Eastern Canada. This explosion proof LED light fixture is
IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and
LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to
dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
Larson Electronics, LLC
160 Watt High Intensity LED Light
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
take precautionary steps
Phone: (800) 369-6671
, in all locations especially in outdoor areas
for weatherproofing all
Fax: (903) 498-3364
GAU-PT-150LTL-LED-480V
www.larsonelectronics.com
1 of 2
