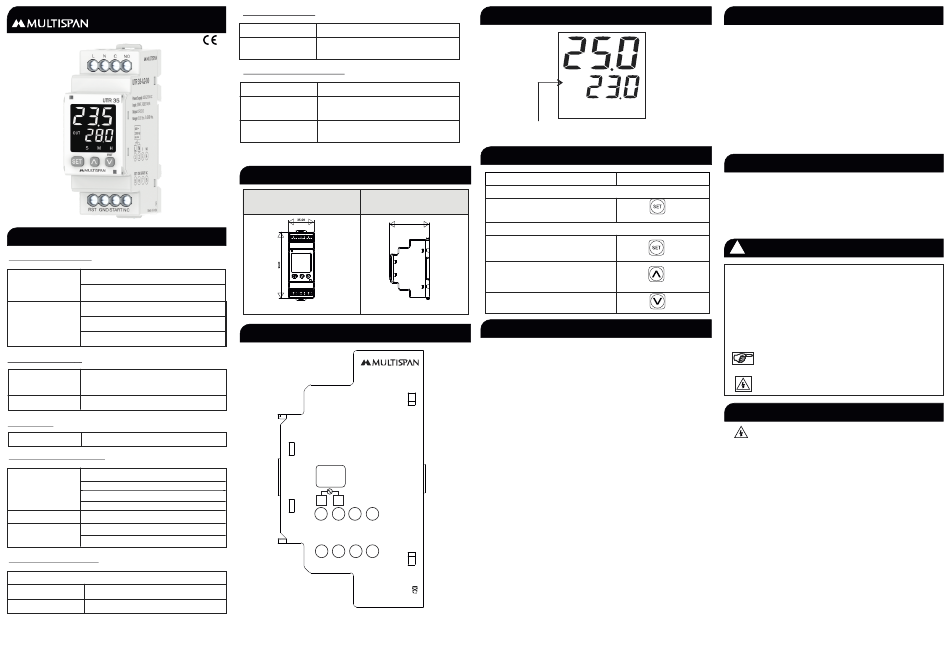

MULTISPAN UTR-35 Quick Start Manual

UNIVERSAL TIMER
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Start / Rst Micro switch
Input (Start Pulse)
Micro Switch
Sec (9.99/99.9/999)
Time Range
Min (9.59/99.9/999)
Hour (9.59/99.9/999)
DISPLAY AND KEYS:
Upper: 3 digit, 7 segment, 0.4"
Display
Lower: 3 digit, 7 segment, 0.28"
Keys SET , UP, DOWN/RST
DIMENSION:
Size
90 (H) x 35 (W) x 61.5 (D) mm
GENERAL SPECIFICATION:
Cyclic On Timer
Cyclic Off Timer
Operating Mode
Delay On Timer
Delay Off Timer
Counting Direction
UP/ DOWN
Front Panel Reset
Reset Option
Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay 1Relay 1 C/O
Rating 5A, 230V AC
AUXILIARY SUPPLY:
UTR-35
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption
Approx 4 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(AS Per Request)
60529 : 2001
MECHANICAL INSTALLATION
Front View(mm)
TERMINAL CONNECTION
UTR 35-A2-00
Power Supply: 100-270V AC
Input: START, RESET M/S
Output: 1R1C/O
Range: 0.01 Sec. To 999 Hrs.
~
100
270V AC
50/60 Hz
L N
C NO
1 2 3 4
RST GND START NC
5 6 7 8
STATUS LED DESCRIPTION
output indication
FUNCTION
Side View(mm)
To enter in parameter setting
mode
61.5
PARAMETER SETTING MODE
Edited parameter value to be set,
And move to the next parameter
It will change the Value of Increase
Count
It Will Chang the value of Down Count
INSTALLATION GUIDELINES
1. This equipment, being built-in-type, normally becomes a
part of main control panel and in such case the terminals
do not remain accessible to the end user after installation
and internal wiring.
2. Do not allow pieces of metal, wire clippings, or fine metallic
fillings from installation to enter the product or else it may
lead to a safety hazard that may in turn endanger life or
cause electrical shock to the operator.
3. Circuit breaker or mains switch must be installed between
power source and supply terminal to facilitate power 'ON' or
'OFF' function. However this mains switch or circuit breaker
must be installed at convenient place normally accessible to
the operator.
4. Use and store the instrument within the specified ambient
temperature and humidity ranges as mentioned in this
manual.
Made in India
1. Prepare the panel cutout with proper dimensions as shown
above.
2. Fit the unit into the panel with the help of clamp given.
3. The equipment in its installed state must not come in close
proximity to any heating source, caustic vapors, oils steam,
OUT
or other unwanted process byproducts.
4. Use the specified size of crimp terminal (M3.5 screws) to
S M H
wire the terminal block. Tightening the screws on the
terminal block using the tightening torque of the range of
1.2 N.m.
5. Do not connect anything to unused terminals.
KEY OPERATION
PRESS KEY
1. The equipment should be cleaned regularly to avoid
OPERATOR MODE blockage of ventilating parts.
2. Clean the equipment with a clean soft cloth. Do not use
isopropyl alcohol or any other cleaning agent.
3. Fusible resistor must not be replaced by operator.
!
All safety related codifications, symbols and instructions
that appear in this operating manual or on the equipment
must be strictly followed to ensure the safety of the operating
personnel as well as the instrument.
If all the equipment is not handled in a manner specified
by the manufacturer, it might impair the protection provided
by the equipment.
1. To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is
being supplied.
2. To reduce electro magnetic interference, use wire with
adequate rating and twists of the same of equal size shall
be made with shortest connection.
3. Cable used for connection to power source, must have a
cross section of 1mm or greater. These wires should have
insulations capacity made of at least 1.5kV.
4. A better anti-noise effect can be expected by using
standard power supply cable for the instrument.
MECHANICAL INSTALLATION GUIDELINES
MAINTENANCE
SAFETY PRECAUTION
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
WARNING GUIDELINES
WARNING : Risk of electric shock.
Page -1
