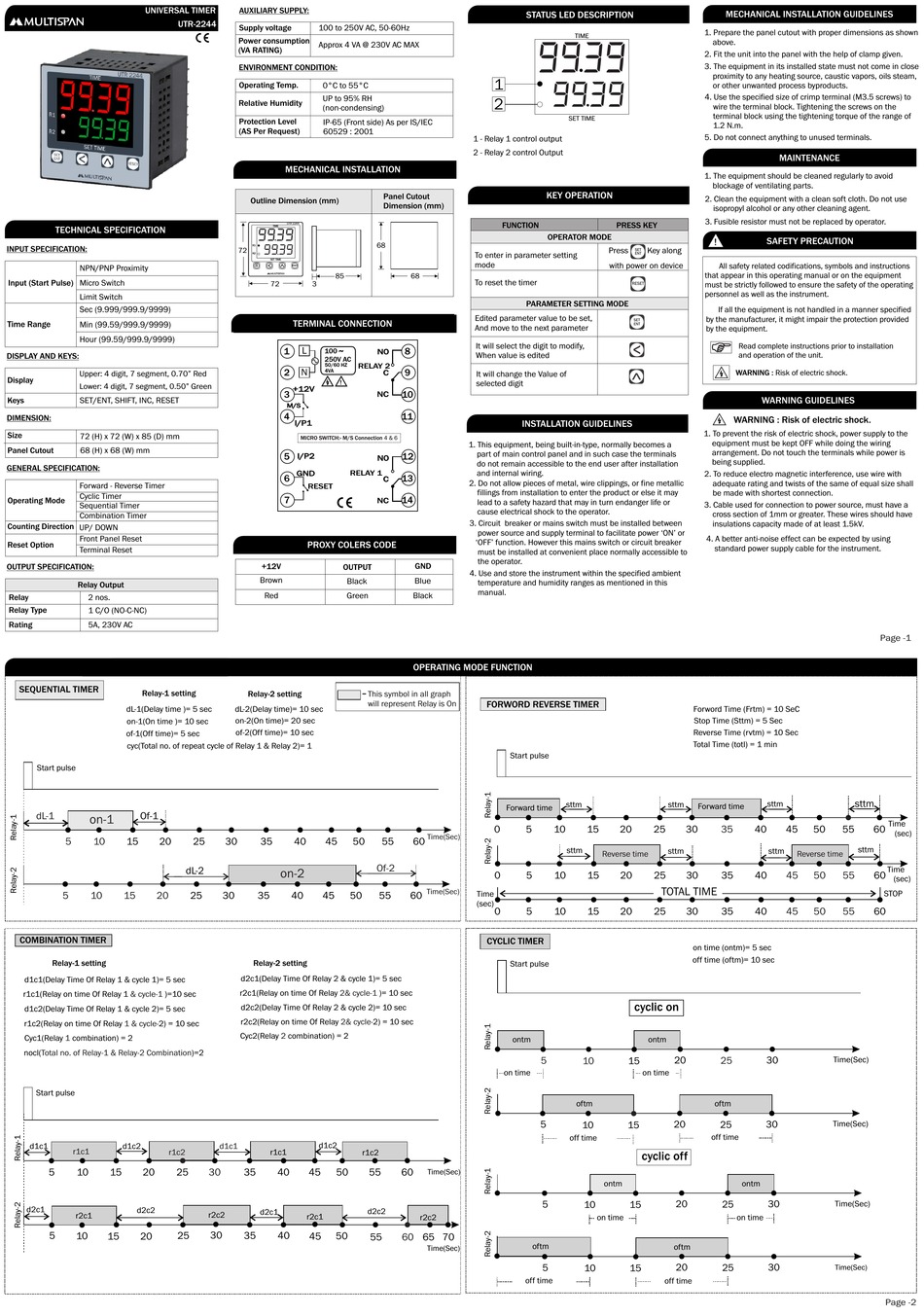

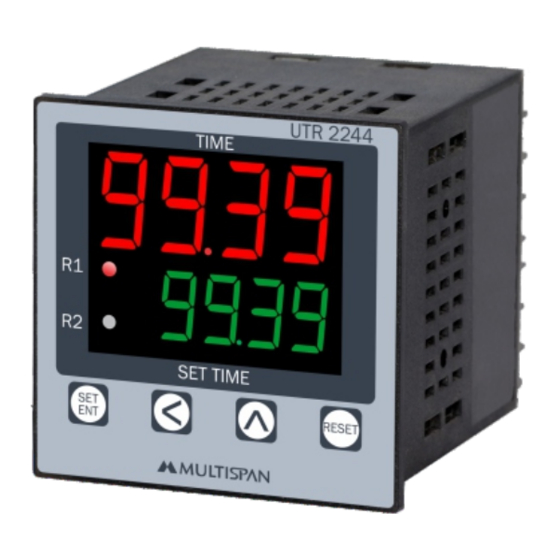

MULTISPAN UTR-2244 Quick Start Manual

UNIVERSAL TIMER
UTR-2244
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
NPN/PNP Proximity
Input (Start Pulse) Micro Switch
Limit Switch
Sec (9.999/999.9/9999)
Time Range
Min (99.59/999.9/9999)
Hour (99.59/999.9/9999)
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.70" Red
Display
Lower: 4 digit, 7 segment, 0.50" Green
Keys SET/ENT, SHIFT, INC, RESET
DIMENSION:
Size
72 (H) x 72 (W) x 85 (D) mm
Panel Cutout 68 (H) x 68 (W) mm
GENERAL SPECIFICATION:
Forward - Reverse Timer
Cyclic Timer
Operating Mode
Sequential Timer
Combination Timer
Counting Direction
UP/ DOWN
Front Panel Reset
Reset Option
Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay 2 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC
SEQUENTIAL TIMER
Relay-1 setting
dL-1(Delay time )= 5 sec
on-1(On time )= 10 sec
of-1(Off time)= 5 sec
cyc(Total no. of repeat cycle of Relay 1 & Relay 2)= 1
Start pulse
dL-1 Of-1
on-1
5 10 15 20
5 10 15 20
COMBINATION TIMER
Relay-1 setting
d1c1(Delay Time Of Relay 1 & cycle 1)= 5 sec
r1c1(Relay on time Of Relay 1 & cycle-1 )=10 sec
d1c2(Delay Time Of Relay 1 & cycle 2)= 5 sec
r1c2(Relay on time Of Relay 1 & cycle- 2) = 10 sec
Cyc1(Relay 1 combination) = 2
nocl( Total no. of Relay-1 & Relay-2 Combination
Start pulse
d1c1 d1c2
r1c1
r1c2
5 10 15 20 25
d2c1
d2c2
r2c1
5 10 25
15 20
AUXILIARY SUPPLY:
Supply voltage 100 to 250V AC, 50-60Hz
Power consumption
Approx 4 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(AS Per Request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTR 2244
TIME
9939
R1 9939
72
R2
SET TIME
SET
RESET
ENT
85
72 3
TERMINAL CONNECTION
L
1 ~
100
250V AC
50/60 HZ RELAY 2
N
2 4VA
!
+12V
3
M/S
4
I/P1
MICRO SWITCH:- M/S Connection 4 & 6
5 I/P2
RELAY 1
GND
6
RESET
7
PROXY COLERS CODE
+12V
OUTPUT
Brown
Black
Red Green
Relay-2 setting
dL-2(Delay time)= 10 sec
on-2(On time)= 20 sec
of-2(Off time)= 10 sec
25 30 35 40 45 50
dL-2
on-2
25 30 35 40 45 50
Relay-2 setting
d2c1(Delay Time Of Relay 2 & cycle 1)= 5 sec
r2c1(Relay on time Of Relay 2& cycle-1
d2c2(Delay Time Of Relay 2 & cycle 2)= 10 sec
r2c2(Relay on time Of Relay 2& cycle-
Cyc2(Relay 2 combination) = 2
)=2
d1c2
d1c1
r1c1
30 35 40 45 50
d2c1
r2c2
r2c1
30 35 40 50
45
STATUS LED DESCRIPTION
1
2
1 - Relay 1 control output
2 - Relay 2 control Output
Panel Cutout
Dimension (mm)
FUNCTION
68
To enter in parameter setting
mode
68
To reset the timer
PARAMETER SETTING MODE
Edited parameter value to be set,
And move to the next parameter
It will select the digit to modify,
8
N0
When value is edited
C 9
It will change the Value of
selected digit
NC 10
11
INSTALLATION GUIDELINES
1. This equipment, being built-in-type, normally becomes a
part of main control panel and in such case the terminals
12
N0
do not remain accessible to the end user after installation
and internal wiring.
13
C
2. Do not allow pieces of metal, wire clippings, or fine metallic
fillings from installation to enter the product or else it may
14
NC
lead to a safety hazard that may in turn endanger life or
cause electrical shock to the operator.
3. Circuit breaker or mains switch must be installed between
power source and supply terminal to facilitate power 'ON' or
'OFF' function. However this mains switch or circuit breaker
must be installed at convenient place normally accessible to
the operator.
GND
4. Use and store the instrument within the specified ambient
Blue
temperature and humidity ranges as mentioned in this
manual.
Black
OPERATING MODE FUNCTION
-
This symbol in all graph
will represent Relay is On FORWORD REVERSE TIMER
Start pulse
Forward time
0 5
Time(Sec)
55 60
Of-2
0 5
Time(Sec)
Time
55 60
(sec)
0 5
CYCLIC TIMER
Start pulse
)= 10 sec
2) = 10 sec
ontm
on time
r1c2
55 60 Time(Sec)
d2c2
r2c2
55 60 65 70
oftm
Time(Sec)
off time
1. Prepare the panel cutout with proper dimensions as shown
TIME
above.
9939
2. Fit the unit into the panel with the help of clamp given.
3. The equipment in its installed state must not come in close
proximity to any heating source, caustic vapors, oils steam,
9939
or other unwanted process byproducts.
4. Use the specified size of crimp terminal (M3.5 screws) to
wire the terminal block. Tightening the screws on the
terminal block using the tightening torque of the range of
SET TIME
1.2 N.m.
5. Do not connect anything to unused terminals.
1. The equipment should be cleaned regularly to avoid
blockage of ventilating parts.
KEY OPERATION
2. Clean the equipment with a clean soft cloth. Do not use
isopropyl alcohol or any other cleaning agent.
3. Fusible resistor must not be replaced by operator.
PRESS KEY
OPERATOR MODE
Press Key along
SET
ENT
with power on device
that appear in this operating manual or on the equipment
RESET must be strictly followed to ensure the safety of the operating
personnel as well as the instrument.
by the manufacturer, it might impair the protection provided
SET
ENT
by the equipment.
1. To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is
being supplied.
2. To reduce electro magnetic interference, use wire with
adequate rating and twists of the same of equal size shall
be made with shortest connection.
3. Cable used for connection to power source, must have a
cross section of 1mm or greater. These wires should have
insulations capacity made of at least 1.5kV.
4. A better anti-noise effect can be expected by using
Forword Time (Frtm) = 10 SeC
Stop Time (Sttm) = 5 Sec
Reverse Time (rvtm) = 10 Sec
Total Time (totl) = 1 min
sttm sttm
Forward time
10 15 20 25 30
sttm
sttm
Reverse time
10 15 20 25 30
TOTAL TIME
10 15 20 25 30
on time (ontm)= 5 sec
off time (oftm)= 10 sec
cyclic on
ontm
5 10 15 20
on time
oftm
5 10 15 20
off time off time
cyclic off
ontm
5 10 15 20
on time
oftm
5 10 15 20
off time
MECHANICAL INSTALLATION GUIDELINES
MAINTENANCE
SAFETY PRECAUTION
!
All safety related codifications, symbols and instructions
If all the equipment is not handled in a manner specified
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
WARNING GUIDELINES
WARNING : Risk of electric shock.
standard power supply cable for the instrument.
Page -1
sttm
sttm
Time
35 40 45 50 55 60
sttm
sttm
Reverse time
Time
35 40 45 50 55 60
STOP
35 40 45 50 55 60
25 30 Time(Sec)
oftm oftm
25 30 Time(Sec)
ontm
25 30 Time(Sec)
on time
25 30
Time(Sec)
Page -2
(sec)
(sec)
