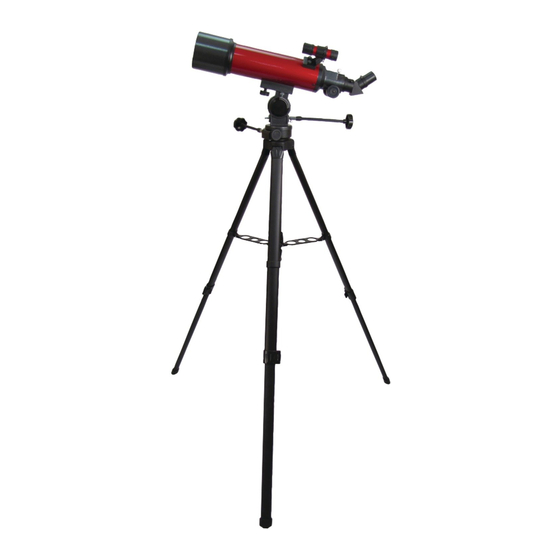

Refractor telescope with alt-az mount

Advertisement

Quick Links

Red Planet
Refractor Telescope with Alt-Az Mount
Congratulations on selecting your new telescope! In order to achieve
optimum performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION:
Aperture:
80mm (3.1")
Optical Design: Refractor
Mount Type:
Alt-Az (Tripod included)
Eyepieces:
K20mm (25x), K9mm (56x), 1.25" Size
COMPLETE OPTICAL TUBE ASSEMBLY (OTA)
TM
Focal Length / Ratio: 500mm, f/6.3
Erecting Prism:
Finderscope:
Lens Coatings:
Orients to Upright View like Spotting Scope
8x21mm
Fully Coated
OTA Lens Covers
Some models have two lens
covers. Please make sure to
remove both before viewing.
RP-200
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Red Planet RP-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Carson Red Planet RP-200

  • Page 1 RP-200 Red Planet Refractor Telescope with Alt-Az Mount Congratulations on selecting your new telescope! In order to achieve optimum performance, please follow instructions for proper use and care. PRODUCT SPECIFICATION: Focal Length / Ratio: 500mm, f/6.3 Aperture: 80mm (3.1") Erecting Prism: Optical Design: Refractor Orients to Upright View like Spotting Scope Finderscope:...
  • Page 2 ASSEMBLING TELESCOPE...
  • Page 3 ASSEMBLING TELESCOPE CONTINUED 9. Loosen thumbscrew on Erecting Prism 10. To fine-tune Optical Tube to desired angle, (A). Slide Eyepiece (B) into Erecting adjust Knobs (A/B) as needed. Prism and tighten thumbscrew (A). Finding targers will be easier if you start with K20 Eyepiece.
