Page 3

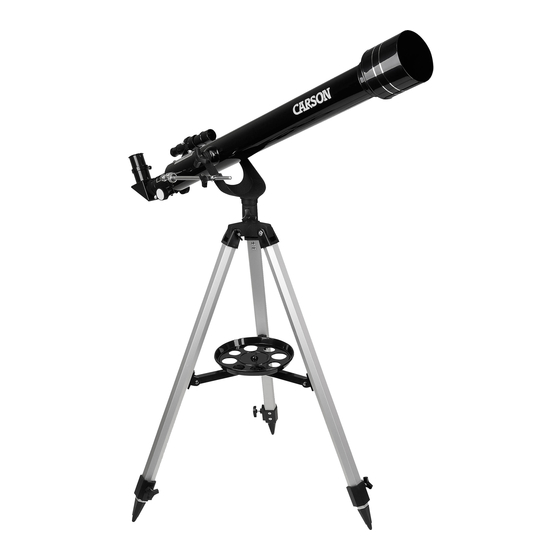

JC-1000 Instruction Manual A. Micro adjustable Altitude control B. Focusing wheel C. Focusing tube D. Angle prism E. Eyepiece F. Finderscope bracket G. Finderscope H. Main telescope body I. Sunshade J. Lens K. Yoke locking screw L. Adjustment locking nut M.
Page 5
JC-1000 Instruction Manual INSTRUCTIONS FOR USE Extend the legs (Q) as shown in Fig. 1, and lock them at the desired height using the wing nut (1) supplied. Connect the three legs to the tripod head (O) using the wing nut and the bolt (2), proceeding as shown in Fig.
Page 6
JC-1000 Instruction Manual FINDERSCOPE ADJUSTMENT As the telescope only offers a limited field of view, it may be fairly hard to locate a given star or planet for observation. This is why the telescope is fitted with a cross-hair finderscope for orientation purposes.
Page 7
JC-1000 Instruction Manual ALTITUDE-AZIMUTH MOUNT The telescope is fitted with an Altitude-Azimuth mount. “ Altitude ” refers to the telescope's up and down or vertical movement, while “Azimuth” refers to its sideways or horizontal movement. The Altitude Azimuth mount used in conjunction with the microad- justable Altitude control and Azimuth Lock (N) lets you see the entire night sky or any celestial body without having to move the tripod.
Page 8
Warning: To avoid any eye injury never look directly into another optical instrument through the telescope and never observe the sun with unprotected eyes! Carson | 2070 5th Avenue | Ronkonkoma, New York 11779 Phone 631-963-5000 | Fax 631-427-6749 For information, call toll-free: 1-800-967-8427 info@carson.com | sales@carson.com | www.carson.com...
