Summary of Contents for Carson SkyRunner SV-350
-
Page 2: Table Of Contents

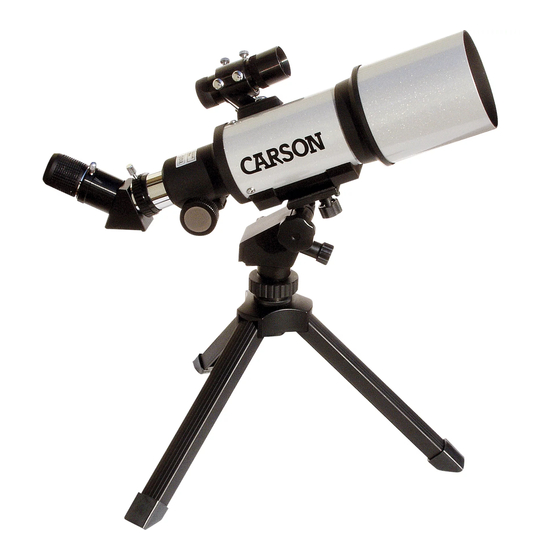

Specifications Warnings Customer Service Warranty Information 10-11 Congratulations on your purchase of a Carson SV-350 SkyRunner Series telescope. This telescope features an easy-to-use design and high performance optics that are perfect for amateur astronomers looking to explore the wonders of outer space. Please read this manual carefully to ensure that you assemble and use your telescope correctly. -
Page 3: Box Contents
Box Contents: • Complete Optical Tube Assembly. • Table Top Tripod. • Cloth Carry Pouch Accessories: • 25mm Kellner Eyepiece (1.25”O.D.). • 6mm Kellner Eyepiece (1.25”O.D.). • 45° Corner Lens • 2x Barlow Lens • 8x21mm Erecting Finder Scope. (with bracket) Please unpack your telescope carefully and make sure that all accessories are included in the box. -
Page 4: Telescope Schematic
Key to Telescope Schematic: 1. Objective Lens 2. Finder Scope Adjustment Screws 3. Optical Tube Assembly (OTA) 4. 8x21mm Erecting Finder Scope 5. Finder Scope Bracket 6. Finder Scope Bracket Mounting Screw 7. Focuser Draw Tube 8. Eyepiece(s), 25 mm or 6 mm options 9. -
Page 5: Attaching The Finder Scope
Attaching the Finder Scope: There are two finder scope bracket mounting screws (6) already located at the end of the optical tube near the eyepiece assembly. Remove the screws and set aside. Place the finder scope bracket (5) onto the mounting bolts, replace the nuts and tighten down securely to the optical tube. -
Page 6: Calculating Power
• Check the alignment at nighttime by repeating this process with a bright star or the moon. Make any necessary adjustments. Now that your finder scope is properly aligned, any object centered in your finder scope should also be centered in your telescope. -
Page 7: Using The Telescope
Using the Telescope: Once you have properly assembled and aligned your telescope you are finally ready to start using it. • To locate an object using the telescope, first loosen the altitude lock (17) allowing the telescope to rotate along both axes. -
Page 8: Care And Maintenance Of Your Telescope
You should also make sure that the surface you place your telescope on does not vibrate or move as this will also cause your viewing object to move. • You should avoid setting up your telescope inside a room looking through an open window. The difference in air temperatures may result in a blurry image. -
Page 9: Specifications
Specifications: Optical Design: Refractor Aperture: 70mm (2.76”) Focal Length: 400mm (15.75”) Focal Ratio: f/5.71 Optical Coatings: Fully Coated Finder Scope: 8x21mm Erecting Eyepiece 1: Kellner 6mm Magnification 1A: Magnification 1B: 133x with Barlow lens Eyepiece 2: Kellner 25mm Magnification 2A: Magnification 2B: 32x with Barlow lens Mount:... -
Page 10: Customer Service
Please call our toll-free customer service line at 1-800-967-8427. Warranty Information: This Carson product is warranted to be free from defects in material and workmanship for a period of one year from date of purchase. During this period Carson will, at its option and... - Page 11 Print the RA number prominently on the top of the package. Prepay shipping. Insure the package. Send it to Carson Warranty Service, 2070 5th Avenue, Ronkonkoma, NY 11779. Merchandise must be shipped prepaid. Carson will not accept...
- Page 12 Carson | 2070 5th Avenue | Ronkonkoma, NY 11779 Phone 631-963-5000 | Fax 631-427-6749 For information, call toll-free: 1-800-967-8427 info@carson.com | sales@carson.com | www.carson.com...
