Instruction booklet
AER DMEV 100
AER DMEV 100 SELV
AER DMEV 150
COD. 5.671.084.489
29/04/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AER DMEV 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vortice AER DMEV 150

Summary of Contents for Vortice AER DMEV 150

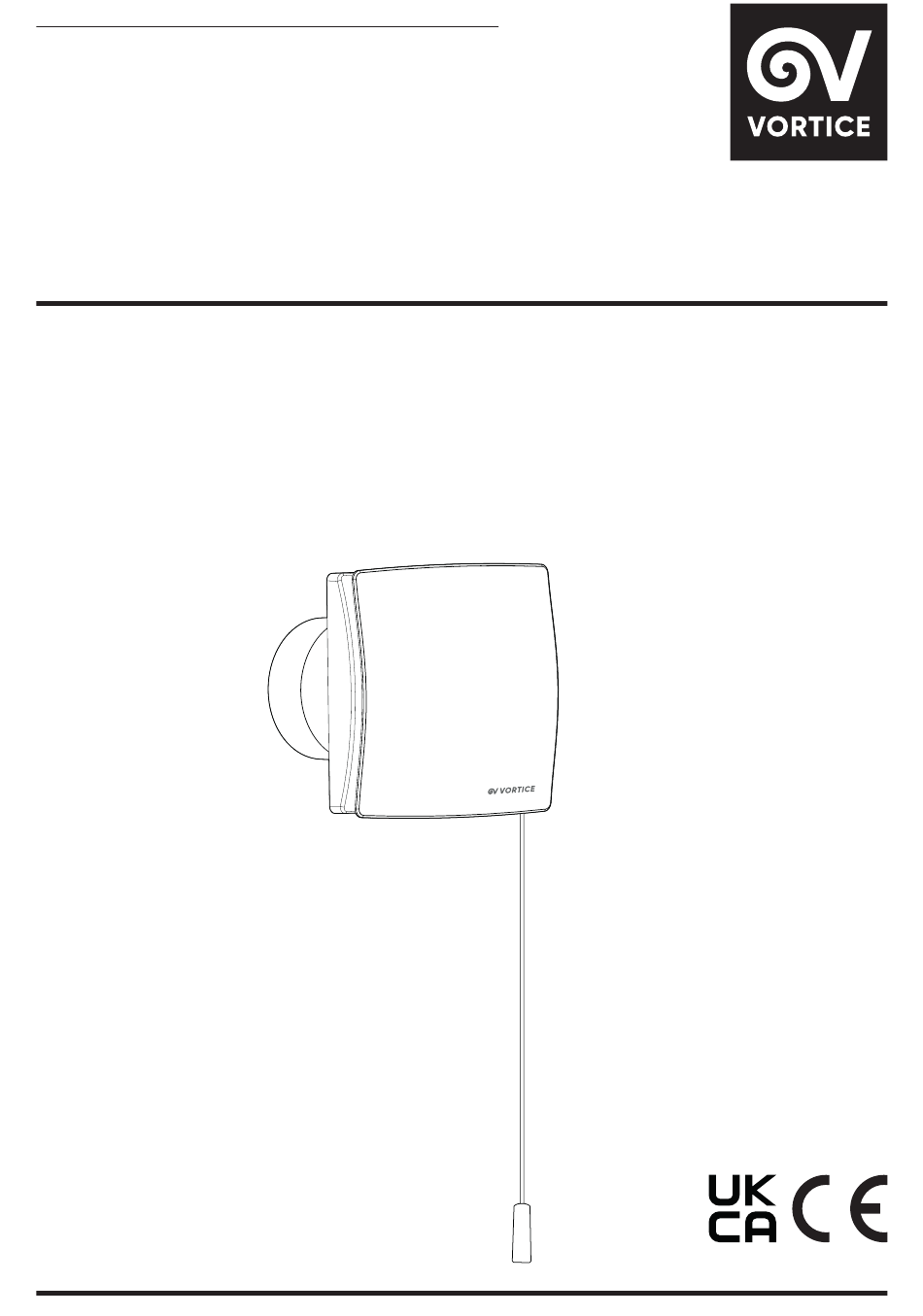

  • Page 1 Instruction booklet AER DMEV 100 AER DMEV 100 SELV AER DMEV 150 COD. 5.671.084.489 29/04/2024...

  • Page 2: Table Of Contents

    Read the instructions contained in this booklet carefully before using the appliance. VORTICE S.p.A. cannot assume any responsibility for damage to property or personal injury resulting from failure to abide by the instructions given in this booklet. Following these instructions will ensure a long service life and overall electrical and mechanical reliability.

  • Page 3: General Informations

    Before installing and using the appliance, read the warnings in this manual carefully VORTICE S.p.A. cannot assume any responsibility for damage to property or personal injury resulting from failure to abide by the instructions given in this booklet. Following these instructions will ensure a long service life and overall electrical and mechanical reliability.

  • Page 4: Product Description

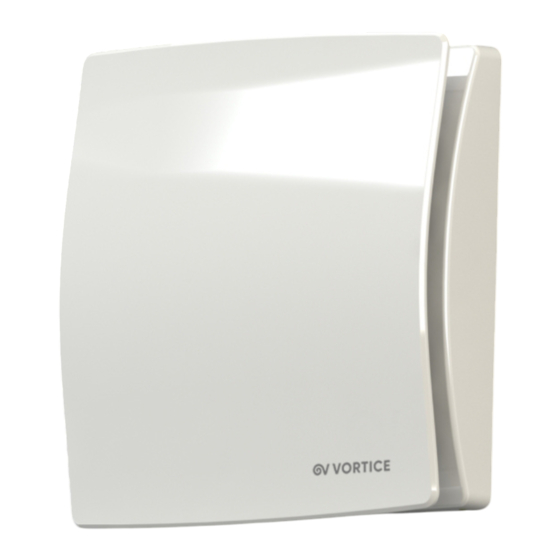

    AER DMEV 100-150 / AER DMEV 100 SELV Product description ‘AER DMEV 100’ and ‘AER DMEV 150’ are decentralised mechanical ventilation units designed to ensure air extraction in small/medium-sized rooms. Suitable for wall, window and ceiling ducted system installation (fig. 1).

  • Page 5: Safety/Warnings

    - The appliance must expel the air outside through its own duct - If the appliance does not function correctly or develops a fault, contact a VORTICE authorised Technical Support Centre without delay. Ensure that only genuine original VORTICE spares are used for any repairs.

  • Page 6: Installation Types

    AER DMEV 100-150 / AER DMEV 100 SELV - The flow of extracted air must be clean (i.e. free of grease, soot, chemical and corrosive agents and explosive or flammable mixtures). OBLIGATION - Switch off the system main switch when: –...

  • Page 7: Operation

    AER DMEV 100-150 / AER DMEV 100 SELV Operation • Upon power-up, the unit runs at the minimum continuous speed. • If humidistat or timer is activated, the unit runs at the intermediate speed. • If the external switch is activated, the unit runs at the maximum speed. •...
  • Page 8 DIP SWITCH A AER DMEV 150 min speed intermediate speed max speed installation default through-wall through-wall through-wall through-wall through-wall through-wall through-wall through-wall in-room in-room in-room...

  • Page 9: Constant Flow

    AER DMEV 100-150 / AER DMEV 100 SELV Constant flow DIP SWITCH B Constant flow When the constant flow operation is enabled, the unit speeds up or slows operation down depending on the variations of the resistances caused by long length ducting or external windy conditions.
  • Page 10 INSTALLATION wall ceiling direct exhausting ducted MOUNTING AND WIRING DIAGRAM AER DMEV 100 AER DMEV 100 SELV...
  • Page 11 AER DMEV 150 click! AER DMEV 100 = Ø 99 mm AER DMEV 150 = Ø 148 mm AER DMEV 100 AER DMEV 100 SELV...
  • Page 12 SURFACE CABLE Type and specifications of the cables that can be used: H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5 mm (for installation without external boost switch). 3 X 0,5 ÷ 1,5 mm (for installation with an external boost switch). 4xØ5mm ød d ø10mm...
  • Page 13 PLEASE REFER WIRING DIAGRAMS AT FIG.14A / 14B FOR THE CORRECT WIRING. RECESSED CABLE ENTRY Type and specifications of the cables that can be used: H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5 mm (for installation without external boost switch). 3 X 0,5 ÷...
  • Page 14 AER DMEV 100 AER DMEV 150 Power unit 220-240V~ 24Vdc AER DMEV 100 SELV ATTENTION: WHEN WIRING TO THE PCB TERMINALS, DO NOT OVERTIGHTEN THE SCREWS: MAXIMUM TORQUE 0,15 NM. THE UNIT IS PROVIDED WITH AN INTEGRAL PULL-CORD TO SELECT THE BOOST SPEED.
  • Page 15 MOUNTING AND WIRING DIAGRAM SELV POWER SUPPLY UNIT...
  • Page 16 4xØ5mm SURFACE CABLE Type and specifications of the cables that can be used: H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5 mm (for installation without external boost switch). 3 X 0,5 ÷ 1,5 mm (for installation with an external boost switch).
  • Page 17 RECESSED CABLE ENTRY Type and specifications of the cables that can be used: H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5 mm (for installation without external boost switch). 3 X 0,5 ÷ 1,5 mm (for installation with an external boost switch).
  • Page 19 MAINTENANCE / CLEANING...
  • Page 24 VORTICE S.p.A. se réserve le droit d’apporter toutes les variations afi n d’améliorer ses produits en cours de commercialisation. VORTICE S.p.A. behält sich vor, alle eventuellen Verbesserungsänderungen an den Produkten des Verkaufsangebots vorzunehmen. VORTICE S.p.A. se reserva el derecho a hacer cambios en los productos para su mejora en cualquier momento sin previo aviso. VORTICE S.p.A.

This manual is also suitable for:

Aer dmev 100 selvAer dmev 100
