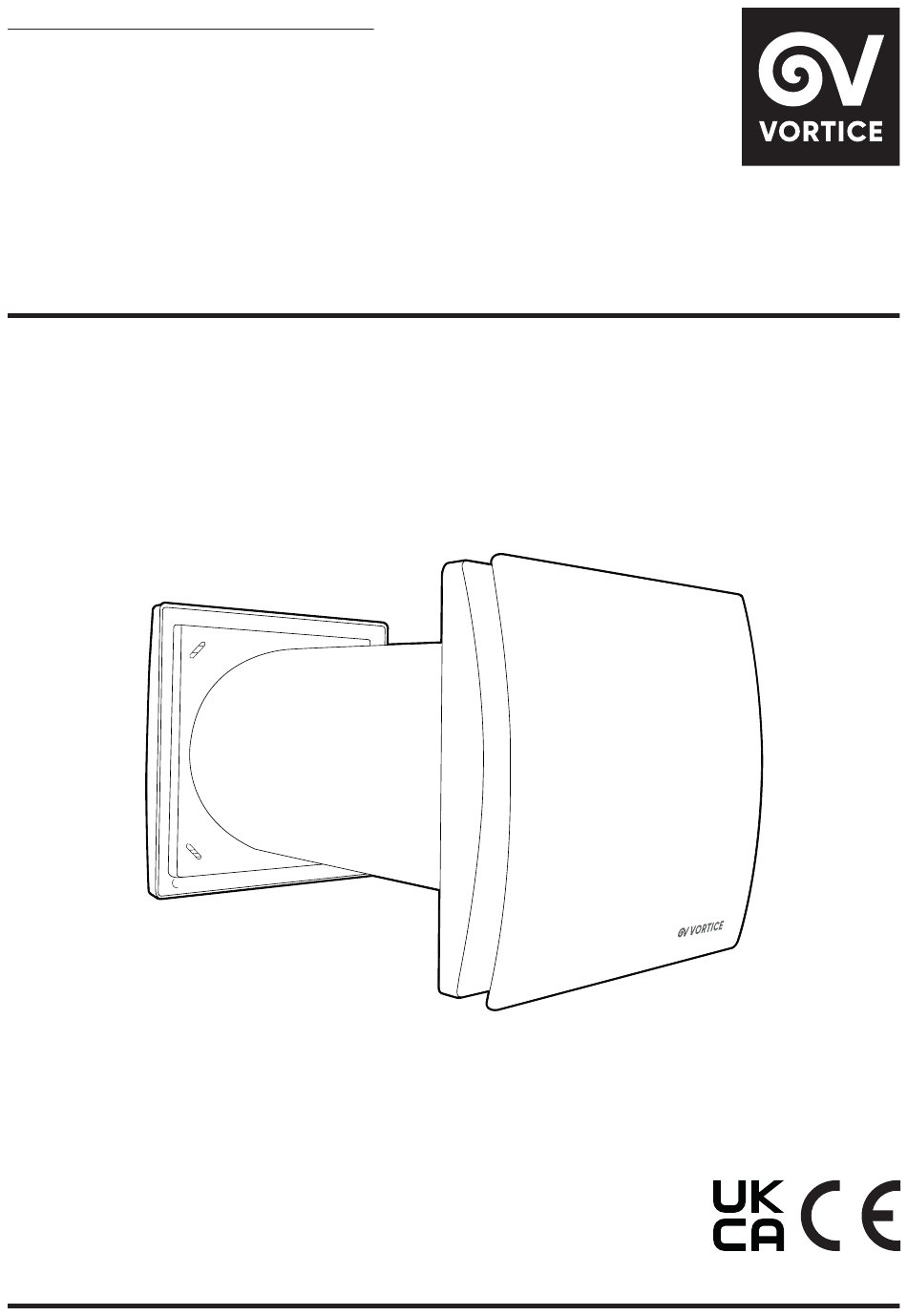

- Page 1 Instruction Booklet AER HR 100 AER HR 150 COD. 5.671.084.428 22/11/2023...
-
Page 2: Table Of Contents
Read the instructions contained in this booklet carefully before using the appliance. VORTICE S.p.A. cannot assume any responsibility for damage to property or personal injury resulting from failure to abide by the instructions given in this booklet. Following these instructions will ensure a long... -
Page 3: General Informations
Before installing and using the appliance, read the warnings in this manual carefully VORTICE S.p.A. cannot assume any responsibility for damage to property or personal injury resulting from failure to abide by the instructions given in this booklet. Following these instructions will ensure a long service life and overall electrical and... -
Page 4: Product Description

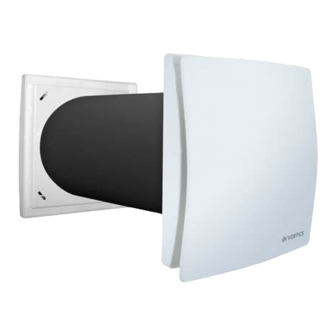

The device is available in two versions: • AER HR 100: for installation inside holes with a nominal diameter of 110 mm and a maximum air flow rate of 7 l/s (25 /h). Maximum absorbed power: 2,6W. -
Page 5: Safety/Warnings
- If the appliance does not function correctly or develops a fault, contact a VORTICE authorised Technical Support Centre without delay. Ensure that only genuine original VORTICE spares are used for any repairs. - If the power supply cable is damaged, have it replaced without delay by a VORTICE authorised Technical Support Centre. -
Page 6: Operation
AER HR 100 / AER HR 150 Operation In both versions, the unit pulls air out for 70 seconds, then it pushes air in for the same time. When heated air is pulled (extracted) from inside the room, it warms up the heat exchanger. When the cold air is pushed (supplied) in the room, it gets preheated, recovering most of thermal energy which would be otherwise lost in the ventilation process. -
Page 7: Extraordinary Maintenance
AER HR 100 / AER HR 150 8.2 Extraordinary maintenance Extraordinary maintenance must be perfmormed only by technically qualified personnel in accordance with local rules and regulations. Refer to figs 43÷57. Make sure that the mains supply to the unit is disconnected. - Page 8 DIMENSIONS AER HR 100 AER HR 150 A 300 ÷ 570 300 ÷ 570 ØD E 300 mm 300 mm INSTALLATION AER HR 100 / AER HR 150...
- Page 9 Ø 110mm AER HR 100 min. Ø 160mm AER HR 150 Indoor Outdoor 1° ÷ 2° Insulation foam + = Ø 10x10 mm + = Ø 5x40 mm...
- Page 10 SPEED 1 SPEED 2 (FIXED) (FIXED) THREE TWO-POSITION SWITCHES (NOT PROVIDED) SPEED 3 (FIXED)
- Page 11 THREE TWO-POSITION AMBIENT SENSOR SWITCHES (e.g. C02 / RH) (NOT INCLUDED) - NOT INCLUDED - THREE TWO-POSITION SWITCHES (NOT INCLUDED) OPEN SENSOR INTERVENTION: S1 OPEN: SPEED 2 S1 CLOSE: SPEED 1 SPEED 3 THREE TWO-POSITION SWITCHES (NOT INCLUDED) AMBIENT SENSOR (e.g.
- Page 12 JUMPER POSITION B INTAKE CLICK!
- Page 13 EXTERNAL GRILLE Ø5x40mm 3-5 mm Ø5x40mm Ø5x40mm RESET OF UNIT SYNCHRONIZATION OPTION 1...
- Page 14 RESET OF UNIT SYNCHRONIZATION OPTION 2 FILTER CLEANING (MAINTENANCE) It can be carried out by the user.
- Page 15 HEAT EXHANGER CLEANING (EXTRAORDINARY MAINTENANCE) IT MUST BE CARRIED OUT ONLY BY TECHNICALLY QUALIFIED PERSONNEL.
- Page 16 100 mm AER HR 100 115 mm AER HR 150...
- Page 20 VORTICE S.p.A. se réserve le droit d’apporter toutes les variations afi n d’améliorer ses produits en cours de commercialisation. VORTICE S.p.A. behält sich vor, alle eventuellen Verbesserungsänderungen an den Produkten des Verkaufsangebots vorzunehmen. VORTICE S.p.A. se reserva el derecho a hacer cambios en los productos para su mejora en cualquier momento sin previo aviso. VORTICE S.p.A.
