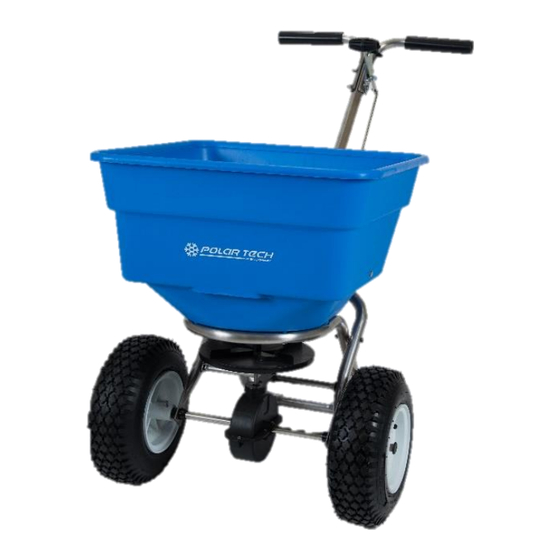

MODEL # 90399
Prior to assembly, you will
need the following tools:
Needle nose pliers
#2 Phillips screwdriver
Adjustable wrench or ½" box wrench

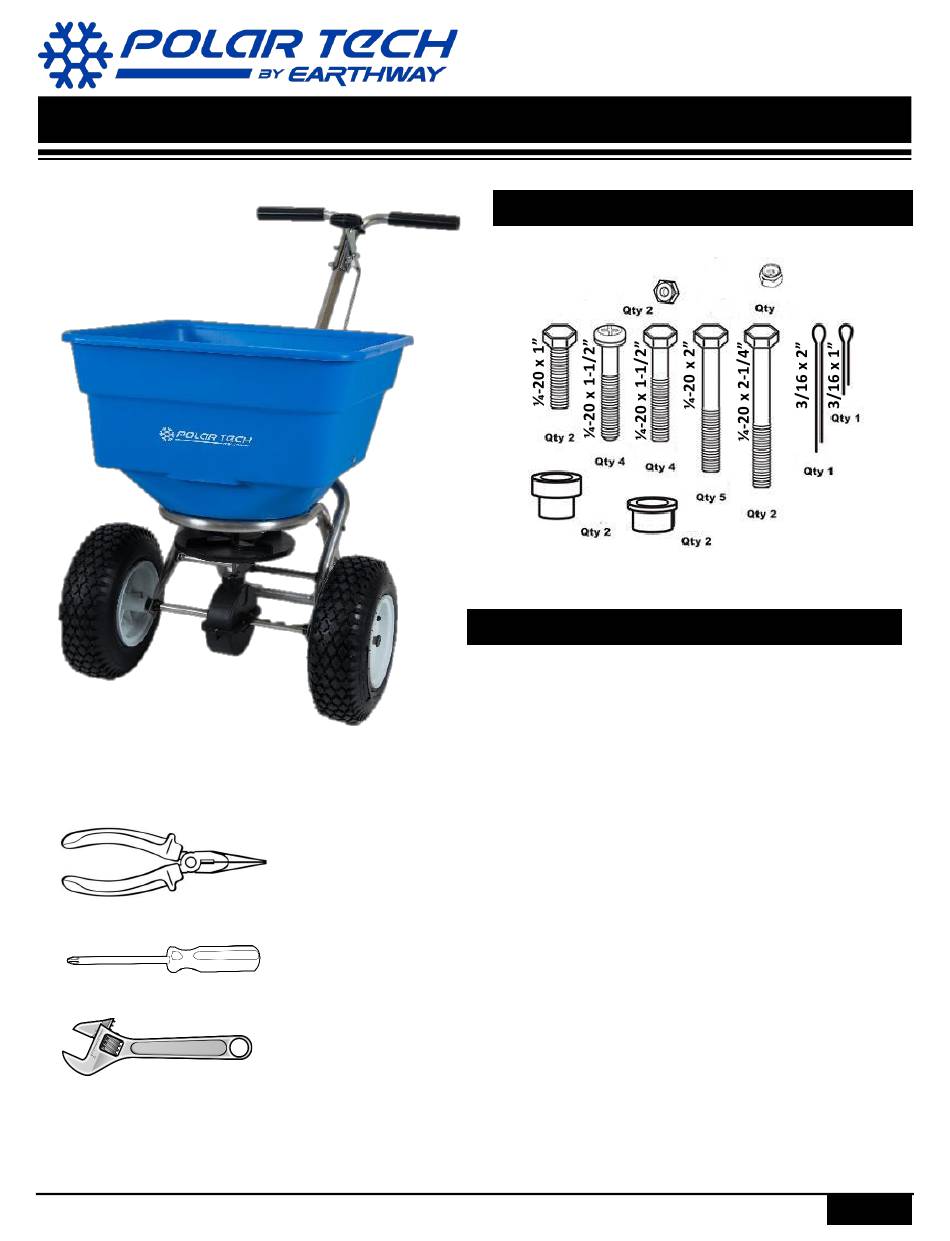

90399 100lb Ice Melt Spreader_M52162 Aug 2020
100 lb. Stainless Steel
ASSEMBLY INSTRUCTIONS
ASSEMBLY HARDWARE
¼-20 Hex SS
Axle Bushing
Axle Bearing
HELPFUL TIPS
•
If your spreader does not spread evenly, check that
you assembled your spreader with the gearbox
labeled "FRONT" points toward the front of the
spreader. The impeller must turn clockwise.
Reversing the gearbox will cause the impeller to turn
counterclockwise.
•
Your spreader is calibrated for three miles per hour.
Slower or faster speeds will change the spread
patterns.
•
Clean and dry your spreader thoroughly after each
use. Coat all metal surfaces with light oil or silicon
spray to help prevent corrosion. Wash between the
shut off plate and bottom of the hopper. Do not use
powdered materials.
•
Gears are pre-lubricated at the factory. Do not open
the gearbox or dirt may enter.
•
Spreading fertilizer with an ice melt spreader will
burn your lawn. The high output opening is designed
for rock salt. No agitator is needed for salt.
Ice Melt Spreader
¼-20 Nylon
Lock SS
15
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POLAR TECH 90399 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EarthWay POLAR TECH 90399

Summary of Contents for EarthWay POLAR TECH 90399

  • Page 1 100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS ASSEMBLY HARDWARE ¼-20 Nylon ¼-20 Hex SS Lock SS Axle Bushing Axle Bearing HELPFUL TIPS • If your spreader does not spread evenly, check that you assembled your spreader with the gearbox labeled “FRONT”...

  • Page 2: Assembly Steps

    100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS IF YOUR SPREADER COMES SEMI ASSEMBLED, SKIP TO STEP #7 Assembly Steps Remove all components and hardware items Step 1: from the box. Place the spreader hopper on its side. Install frame using (4) ¼-20 x 1½″...
  • Page 3 Step 4: hole in center of hoppers bottom. The word “FRONT” on the GEARBOX must point to Front of the HOPPER. The EarthWay logo is on the front of the hopper. (A) Install lower handles onto the frame to Step 5: both sides as shown.
  • Page 4 100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS Slide axle bushing over axle and into axle Step 7: bearing to both sides as shown. Install drive wheel onto the axle and align with Step 8: the cotter pin hole nearest to lower handles as shown. Insert 2″...
  • Page 5 100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS Insert 2″ bolt through Gauge & Lever assembly, Step 10: next through upper handle, then the handle shaft and then the other upper handle and secure with locknut. TIGHTEN ALL HARDWARE NOW 90399 100lb Ice Melt Spreader_M52162 Aug 2020 PAGE 5...
  • Page 6 100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS Step 11: A. Thread hex nut onto the end of the pivot rod. B. Insert threaded end of the pivot rod into the shut off plate. C. Thread an additional hex nut on the end of the pivot rod.
  • Page 7 100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS Install flattened end of control rod in to lever Step 13: on gauge as shown. Turn to lock in place. Next push lever forward to setting “0”. Align control rod with hole in pivot bracket, pull lever backward to insert control rod through hole in pivot bracket.

  • Page 8: Parts List

    100 lb. Stainless Steel Ice Melt Spreader MODEL # 90399 ASSEMBLY INSTRUCTIONS Parts List KEY # PART # DESCRIPTION 40003 SQUARE SCREEN HOPPER ASSEMBLY 90399 99342 HOPPER BUSHING 12209 1/4-20 X 1 1/2" PHPMS S.S. 36214 1/4-20 NYLON INS LOCKNUT 32103 ZINC 1/4-20 X 1"...

  • Page 9: Customer Service

    ONE YEAR WARRANTY EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay.
