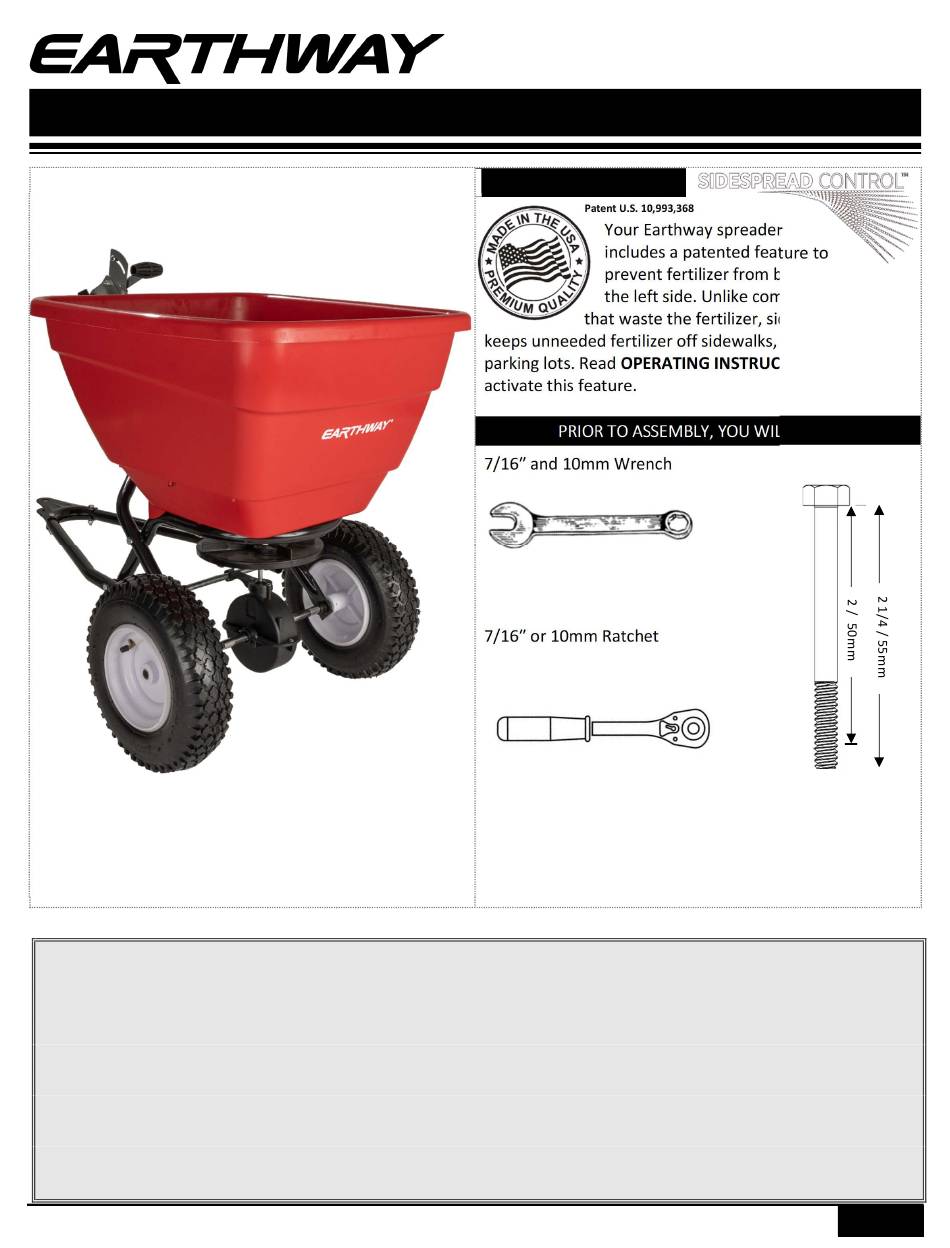

EarthWay T150 Assembly Instructions Manual

150 lb tow behind fertilizer spreader

Advertisement

Quick Links

MODEL # T150
HELPFUL HINTS
 Read the directions before assembly.
 If your spreader does not spread evenly, be sure "FRONT" on the GEARBOX points to the front of the spreader. The
impeller must turn clockwise when pushing forward. Reversing the GEARBOX during assembly will negatively impact
spread quality.
 Your spreader is calibrated for three miles per hour, which is a brisk walking speed. Slower or faster speeds will
change the spread pattern. Wet fertilizer will also change the spread pattern and flow rate. Do not use powdered
materials as it will damage the gearbox.
 Gears are permanently lubricated at the factory. Do not open the GEARBOX or dirt may enter.
T150_Manual_March_2025
ASSEMBLY INSTRUCTIONS
SIDE SPREAD CONTROL
Patent U.S. 10,993,368
Your Earthway spreader
includes a patented feature to
prevent fertilizer from being spread to
the left side. Unlike competitor designs
that waste the fertilizer, side spread control
keeps unneeded fertilizer off sidewalks, driveways, and
parking lots. Read OPERATING INSTRUCTIONS (Page 7) to
activate this feature.
PRIOR TO ASSEMBLY, YOU WILL NEED:
7/16" and 10mm Wrench
7/16" or 10mm Ratchet
150 lb Tow Behind
Fertilizer Spreader
PAGE 1
PAGE 1
