MODEL # 90365
Prior to assembly, you will
need the following tools:
Needle nose pliers
#2 Phillips screwdriver
Adjustable wrench or ½" box wrench
90365_Ice Melt Spreader_M52162_December_2023
Visit our
EarthWay
website to view the
assembly video
spreader. Our customer support team is standing
ready to ensure your success. Please contact us
at www.EarthWay.com to see our full line of
commercial, lawn & garden tools.
NOTE: The large opening is designed to allow ice
melt to flow through spreader without the need
for an agitator. This unit is not designed for
fertilizer.
ICE MELT - LARGE OPENING
For spreading fertilizer, please select the right
tool – an EarthWay precision fertilizer spreader.
Axle Bushing

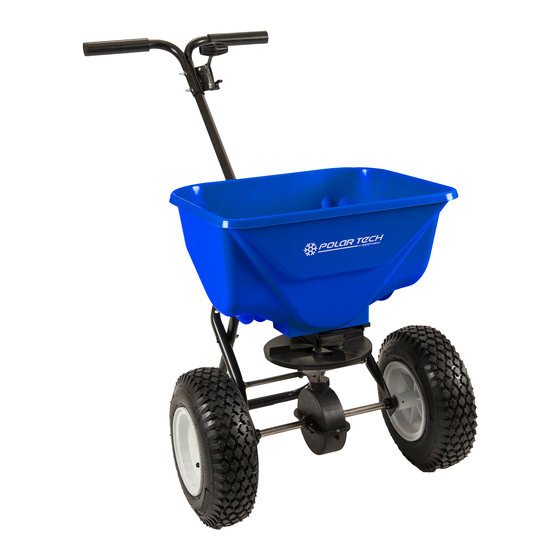

65LB Professional
Ice Melt Spreader
ASSEMBLY INSTRUCTIONS
Thank you for selecting
EarthWay for your
spreader needs. Our
production team in
Northern Indiana takes
pride in building this
ASSEMBLY HARDWARE
¼-20 Hex SS
Axle Bearing
¼-20 Nylon
Lock SS
15
Pin Pipe
Lynch Spring
Lynch Pin
PAGE 1
Advertisement
Related Manuals for EarthWay POLAR TECH 90365
Summary of Contents for EarthWay POLAR TECH 90365
- Page 1 Our customer support team is standing ready to ensure your success. Please contact us at www.EarthWay.com to see our full line of commercial, lawn & garden tools. NOTE: The large opening is designed to allow ice melt to flow through spreader without the need for an agitator.
- Page 2 65LB Professional Ice Melt Spreader MODEL # 90365 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Open carton and remove the handle assembly, wheels, and spreader. STEP 1: Turn spreader upside-down on to the hopper STEP 2: Ensure that the axle bearings are pushed into the axle bushing on both sides as shown. Install drive wheel STEP 3: (wheels are interchangeable) to axle using pin hole nearest to lower handles as shown.
- Page 3 65LB Professional Ice Melt Spreader MODEL # 90365 ASSEMBLY INSTRUCTIONS This step is only required if you want to change the position of the handles. STEP 6: NOTE: BEFORE INSTALLING GAUGE AND UPPER HANDLES TO HANDLE SHAFT, UPPER HANDLES FEATURE THREE POSITONS FOR OPERATOR’S COMFORT.
- Page 4 65LB Professional Ice Melt Spreader MODEL # 90365 ASSEMBLY INSTRUCTIONS Install Control Rod by inserting flattened end of Control Rod into Lever on Gauge as shown. Turn to lock in STEP 7: place. {Make sure that there is a plain ¼ -20 Hex Nut threaded about halfway up the threads}. Push lever forward to full OPEN setting.
-
Page 5: Helpful Hints
Do not use powdered materials as it will damage the gearbox. Gears are permanently lubricated at the factory. Do not open the GEARBOX or dirt may enter. CUSTOMER SERVICE SUPPORT@EARTHWAY.COM www.EARTHWAY.com | 1009 Maple Street, Bristol, IN 46507... - Page 6 65LB Professional Ice Melt Spreader MODEL # 90365 ASSEMBLY INSTRUCTIONS PART# DESCRIPTION 60264 HOPPER ONLY 12220 GEAR BOX BUSHING 12345 SHUTOFF ASSEMBLY 60175 UPPER HANDLE SQ w/GRIPS 12344 HANDLE SPACER 25223 HANDLE SHAFT SQ. 60499 GAUGE & LEVER ASSEMBLY 42256 CONTROL ROD 25222 LOWER HANDLE SQ...
-
Page 7: One Year Warranty
EarthWay. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or its effects .
