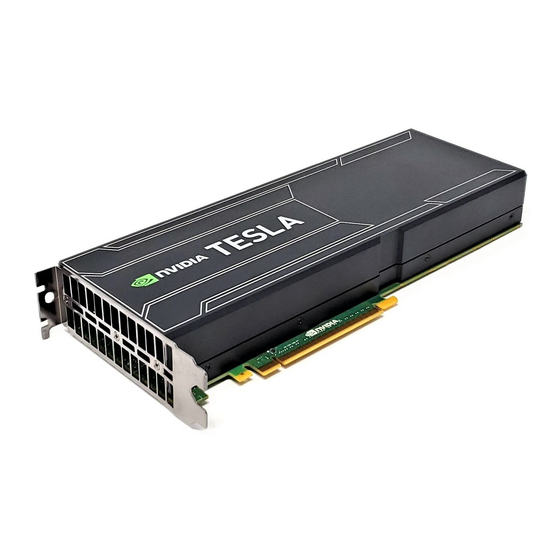

- Page 1 TESLA K20 GPU ACTIVE ACCELERATOR BD-06499-001_v02 | November 2012 Board Specification...
- Page 2 • Removed “Preliminary Information” as this board November 9, 2012 GG, SM specification is no longer preliminary Removed “NVIDIA confidential” • Updated Table 1 • Updated “Power Specifications” section • Tesla K20 GPU Active Accelerator BD-06499-001_v02 | ii...
-
Page 3: Table Of Contents
Key Features ..................2 Configuration ..................3 Mechanical Specifications ............... 4 PCI Express System ................4 Tesla K20 Active Bracket ..............5 Power Connectors ................6 Auxiliary 6-Pin PCI Express Power Connector ..........6 Extenders ..................7 Power Specifications ................10 Power by Rail ................... - Page 4 LIST OF FIGURES Figure 1. Tesla K20 Active GPU Accelerator Board ......... 1 Figure 2. Tesla K20 GPU Active ..............4 Figure 3. Tesla K20 Active Bracket ............5 Figure 4. Auxiliary 6-Pin PCI Express Power Connector ........6 Figure 5. Long Extender with Offset ............8 Figure 6.
-
Page 5: Overview
5 GB of GDDR5 on-board memory and supports PCI Express Gen2. The Tesla K20 can be configured by the OEM or by the end user to enable or disable ECC that can fix single-bit errors and detect double-bit errors. Enabling ECC will cause some of the memory to be used for the ECC bits, so the user available memory will decrease by 10%. -
Page 6: Key Features
Memory clock: 2.6 GHz Memory bandwidth: 208 GB/sec Interface: 320-bit Total board memory: 5 GB ● 20 pieces of 128M × 16 GDDR5, SDRAM ● BIOS 2Mbit Serial ROM Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 2... -
Page 7: Configuration
Overview CONFIGURATION The Tesla K20 GPU active accelerator board is available in the following configuration (Table 1). Table 1. Board Configuration Specifications Tesla K20 Generic SKU reference 699-22081-0204-xxx Chip GK110 Package size GPU 45 mm × 45 mm 2397-pin S-FCBGA... -
Page 8: Mechanical Specifications
MECHANICAL SPECIFICATIONS PCI EXPRESS SYSTEM The Tesla K20 GPU active accelerator board (Figure 1) conforms to the PCI Express full height (4.376 inches by 10.5 inches) form factor. 10.5 inches 4.376 inches Figure 2. Tesla K20 GPU Active Tesla K20 GPU Active Accelerator... -
Page 9: Tesla K20 Active Bracket
Mechanical Specifications TESLA K20 ACTIVE BRACKET As shown in Figure 3, the Tesla K20 includes a vented bracket. Figure 3. Tesla K20 Active Bracket Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 5... -
Page 10: Power Connectors
"east end" of the board. Auxiliary 6-Pin PCI Express Power Connector The Tesla K20 GPU active accelerator board is a high powered board solution and it utilizes power from the PCI Express connector as well as the external power (a single 6- pin PCI Express power connector is required for the Tesla K20). -
Page 11: Extenders
+12 V +12 V +12 V Sense EXTENDERS The Tesla K20 GPU active accelerator board provides three extender options as shown in the following figures. NVPN: 320-0866-000 – Long Extender with Offset (Figure 5) Card + Extender = 13.338 inches ●... -
Page 12: Figure 5. Long Extender With Offset
Mechanical Specifications Figure 5. Long Extender with Offset Figure 6. Flat Extender Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 8... -
Page 13: Figure 7. Short Extender With Offset
Ensure the system can accommodate standard mounting of “Type B” form factor boards using the NVIDIA extenders. Using the standard NVIDIA extender ensures greatest forward compatibility with future NVIDIA product offerings. If the standard extender will not work, OEMs may design a custom attach method ... -
Page 14: Power Specifications
Not supported. Both 6-pin power connectors must always be connected. POWER BY RAIL Table 4 lists the average power (in watts) by rail numbers for the Tesla K20 GPU active graphics while running DGEMM. Table 4. Power by Rail PEX12V... -
Page 15: Energy Star Report
Power Specifications ENERGY STAR REPORT Table 5 lists the energy star report for the Tesla K20 GPU active graphics board. The Energy Star measurements have been done using NBody simulation. Table 5. Energy Star Report Specification Description Brand Tesla K20... -
Page 16: Thermal Specifications
THERMAL SPECIFICATIONS COOLING SOLUTION NVIDIA has designed an active fan sink (Figure 8) to cool the GPU, memories and power components. For fan and environmental specifications refer to Table 6. Figure 8. Active Fan Sink Table 6. Fan Environmental Specifications and Conditions... - Page 17 50,000 hours continuous operation at 55 °C with 15 to 65% RH Operating temperature -10 °C to 70 °C Storage temperature -40 °C to 75 °C Operating humidity 5% to 90% RH Storage humidity 5% to 95% RH Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 13...
-
Page 18: Support Information
Conformité Européenne (CE) Federal Communications Commission (FCC) Industry Canada - Interference-Causing Equipment Standard (ICES) Korean Communications Commission (KCC) Underwriters Laboratories (cUL) Voluntary Control Council for Interference (VCCI) Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 14... -
Page 19: Languages
Chinese, Traditional Danish Dutch Finnish French French (Canada) German Italian Japanese Korean Norwegian Portuguese (Brazil) Russian Spanish Spanish (Latin America) Swedish Thai Note: NVIDIA’s CUDA™ software is only supported in English (U.S.) Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 15... - Page 20 No license is granted by implication of otherwise under any patent rights of NVIDIA Corporation. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all other information previously supplied. NVIDIA Corporation products are not authorized as critical components in life support devices or systems without express written approval of NVIDIA Corporation.
