HEATER INSTALLATION

Suggested Plumbing Installation
- The filtration pump and heater mac unions should be connected and tightened before plumbing to
the spa
V.2005

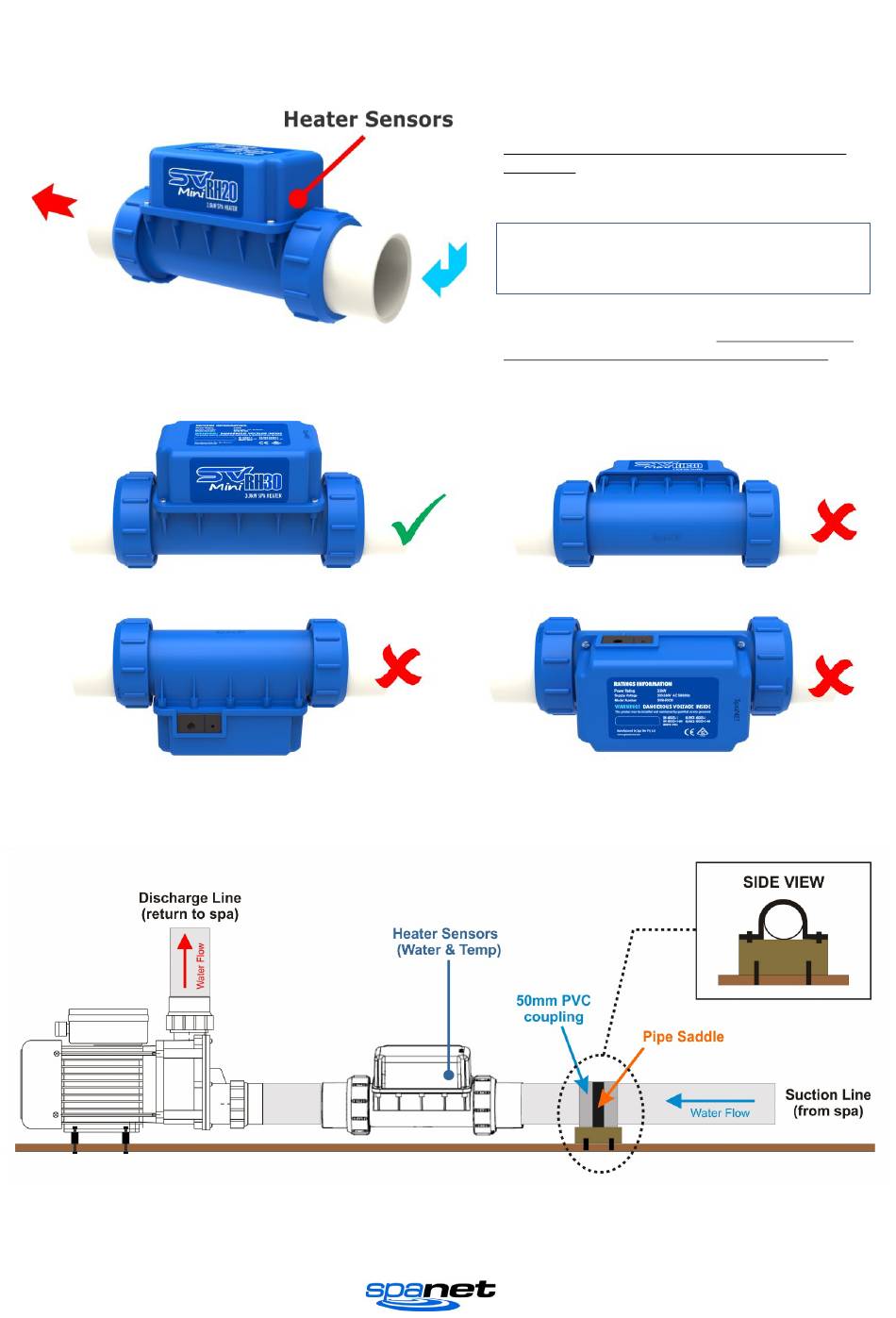

The heater MUST be installed on a level
horizontal plane only (as shown aside).
The heater CANNOT be laid on its side or on
an angle. It must be orientated upright as
pictured aside to ensure correct operation of
the optical water sensor and thermal cut outs.
HEATERS INSTALLED IN AN INCORRECT
ORIENTATION WILL NOT BE COVERED BY
THE SPANET PRODUCT WARRANTY.
The heater can be plumbed on either suction
or discharge lines however water should flow
from the spa over the heater sensors first,
then returning the heated water to the spa.
