SpaNet Mini 1 Quick Start Manual page 4

SPA PACK INSTALLATION
Floor Mounting Procedure
IMPORTANT NOTE
The spa pack is NOT intended to be used outdoors. The spa
pack MUST be installed in indoor environments only and should
be installed in an enclosure so that all electrical connections
cannot be accessed without the use of a tool (i.e. under the
spa cabinet).
Wall/Bracket Mounting Procedure
NOTES:
1. Install spa pack in a suitable position to prevent water dripping onto the unit. In particular, avoid
installing spa pack directly underneath keypad or venturi air controls.
2. Waterproof bungs (supplied) MUST be installed on all unused AMP power sockets
V.2005

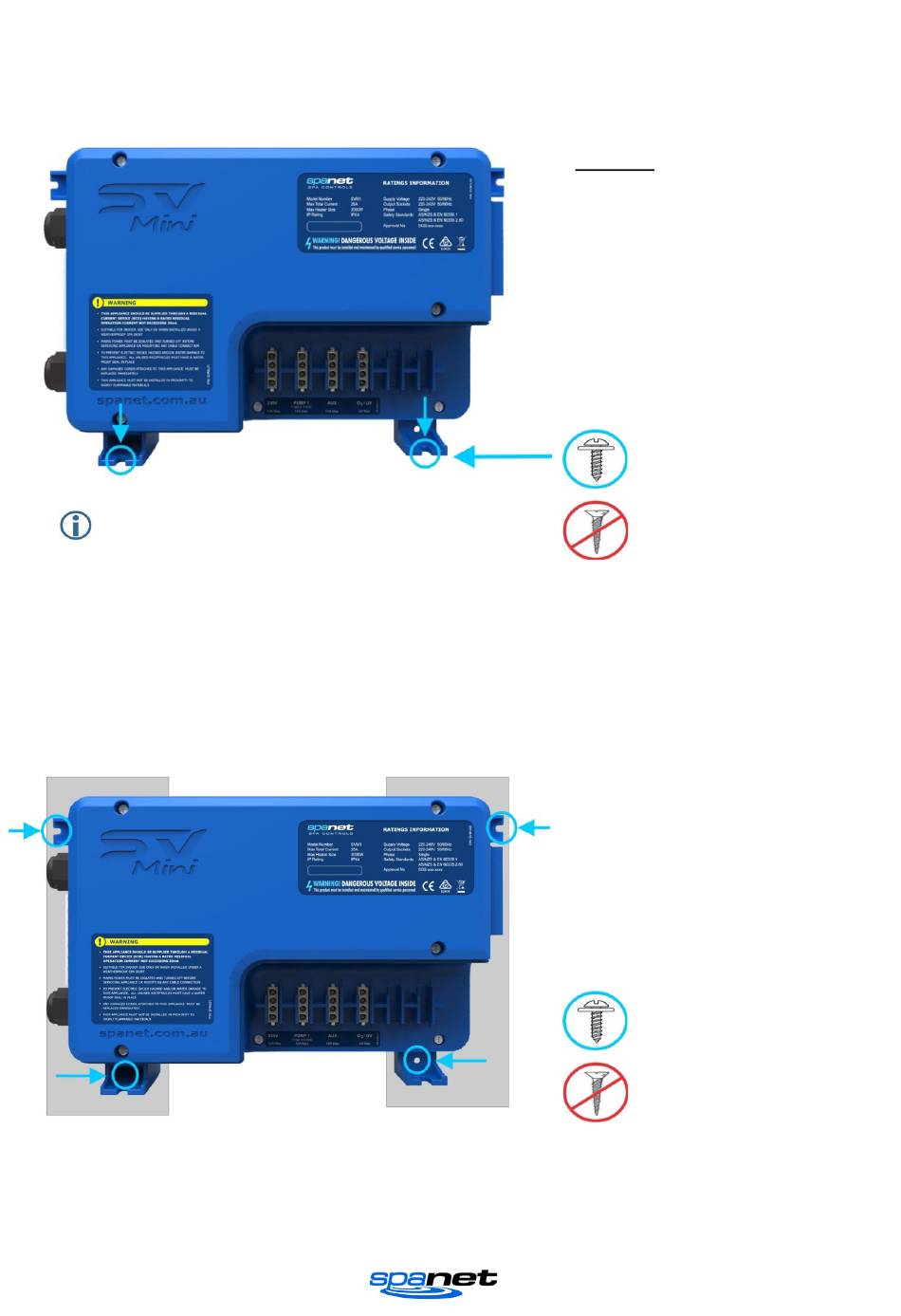

The controller should be mounted
vertically in a fixed position
Select a suitable location on the spa
base and firmly secure spa pack
using four (4) x screws of appropriate
length backed with flat washers.
Each screw should be positioned in
the moulded cut outs of the mounting
feet (refer aside). The spa pack
should be fixed using ALL four (4) x
screw locations to provide adequate
support (two screws on each side of
the spa pack, front and back).
Only use pan, round or truss
head screws with flat
washers
DO NOT use countersunk
screws, they may damage or
crack the mounting brackets
The spa pack should be located at
least 10cm (4") above potential flood
level. If spa floor is on ground level
the spa pack should be raised 10cm
(4") above floor level.
An adequate support structure for
controller mounting must be provided.
The structure should attach to the
framework of the spa pool and NOT
the spa pool shell itself, and shall be
capable of supporting the weight of
the controller.
Firmly secure spa pack to support
frame using ALL four (4) x screw hole
locations provided on the moulded
mounting brackets (refer aside).
Only use pan, round or truss
head screws with flat
washers
DO NOT use countersunk
screws, they may damage or
crack the mounting brackets
Page | 4
