Summary of Contents for SpaNet SV SmartStream
-
Page 2: Table Of Contents
Contents Overview ......................3 Keypad Overview ..................... 3 SmartSTREAM Stereo Operation ................4 Power On/Off ....................4 Touchpad Key Assignments ................4 Key Press Operations ..................4 Single Key Functions ..................4 Hold & Tap Key Functions ................5 Bluetooth ......................6 Bluetooth Indicator LED ................. -
Page 3: Overview
The SmartSTREAM controller can operate as a standalone stereo system for your spa or be connected via a data cable to a SpaNET SV Series spa control. When connected to a SpaNET SV Series spa control the SmartSTREAM’s WiFi module allows remote control of the SV Series spa control via the Internet. -
Page 4: Smartstream Stereo Operation

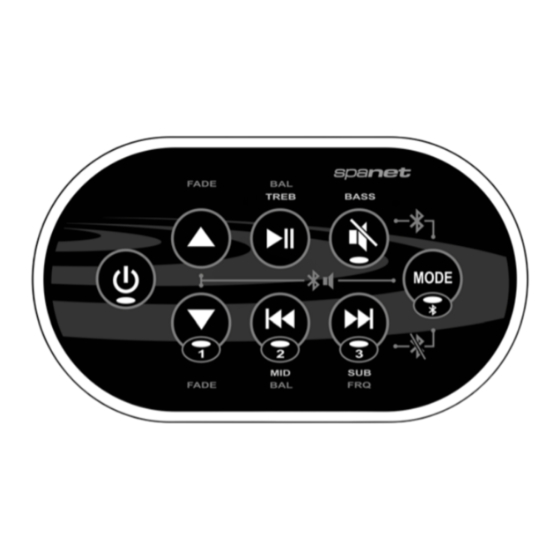

SmartSTREAM Stereo Operation Power On/Off Press and hold the Power On/Off button for 4 seconds to turn the power ON or OFF. Touchpad Key Assignments Key Press Operations There are two key press operations as follows. Single key press – the key is pressed and released. The function operates when the key is released. -
Page 5: Hold & Tap Key Functions
Hold & Tap Key Functions FUNCTION HOLD KEY TAP KEY NOTES Bluetooth Connect Attempts to reconnect to last connected device Bluetooth Disconnect Kill current Bluetooth connection Bluetooth Volume (+) Increases Bluetooth module volume Bluetooth Volume (–) Decreases Bluetooth module volume Loudness (on/off) Low beep = off, high beep = on Treble (+) -
Page 6: Bluetooth
LED flashing 2) Search for Bluetooth devices from your smart device (phone/tablet/PC) 3) Select the SpaNET SV-AMP-XXXX device from the list to pair with it (Note: no pin is required) 4) Your smart device should automatically pair with the SmartSTREAM module Once paired the SmartSTREAM keypad can be used to control Bluetooth functions such as volume adjustment, skip track, play/pause, connect, disconnect. -
Page 7: Unpair / Disconnect Bluetooth Connection
Unpair / Disconnect Bluetooth Connection If you wish to unpair/disconnect the current Bluetooth connection so that a different smart device can be paired use the Hold & Tap function. Hold MODE (key 8) and Tap SKIP TRACK + (key 7) to unpair the connection. HOLD + TAP Volume Control... -
Page 8: Loudness
Loudness The maximum volume can be boosted by activating the loudness feature via the keypad. When loudness is turned on certain frequencies are boosted, particularly the treble. Whilst the overall volume will be increased the general sound quality will become thinner and not as rich. For best audio quality and richness of sound the Loudness feature should be left off. -
Page 9: Smartstream Wifi Module
Once you have downloaded and installed the SpaLINK app, before your spa and WiFi module can be configured you must first register a user account with SpaNET. Your user account is the portal between the smart device app and your spa. It provides a secure gateway to login and access your spa and allows multiple SV controllers to be configured to the one user account, should you be fortunate enough to own a dual zone swim spa or more than one spa. - Page 10 Step 1: Open the app and click REGISTER Step 2: Enter your details into the registration form Your name Create username for login Your email address Create password for login Confirm password for login Step 3: Review your registration details then Complete: If your registration was successful click REGISTER to proceed the app will automatically login with your...
-
Page 11: Configure Your Spa/Wifi Module
Configure your Spa/WiFi module Once you have registered a user account with SpaNET you are now ready to configure your spa. The configuration process is a once off setup event that programs the SpaNET WiFi module with your wireless router’s login details (SSID and password) to provide Internet access to your spa. - Page 12 Step 5: If you have just completed your user Step 6: Press on NEW DEVICE to add your spa account registration your app will already be to your spa list logged in at the spa list screen (refer below) If you do not see the above screen, please open the app and login with your username and password entered during registration.
- Page 13 Step 8: Select and connect to the SV WiFi Step 9: Once connected to the SV WiFi network denoted by your SV controller’s serial network go back and re-enter the SpaLINK number. No password is required to connect. app. Press on X to close the setup instructions. Wait for a moment to ensure the SV network is connected properly.
- Page 14 WiFi range extender to boost the signal, or install a higher powered antenna to the SpaNET SmartSTREAM module underneath your spa. If your wireless network SSID is not discovered you will need to carry out steps to improve the signal strength and perform another WiFi scan.
- Page 15 SpaNET WiFi module for connecting to your wireless router. If you type the password incorrectly the SpaNET WiFi module will be unable to login and connect to your wireless router and the whole setup procedure will need to be run again.
- Page 16 Step 14a: Press your smart device home Step 15: Once connected to your usual WiFi button, navigate to your WiFi settings and network re-enter the SpaLINK app. Press on select your WiFi network for Internet access. the X to close the setup instructions. NOTE: Your smart device may automatically revert to your normal WiFi network by itself.
-
Page 17: Spa List Screen
Troubleshooting Spa/WiFi Module Configuration on the following page. Online/Offline Spas Once your SpaNET WiFi module has been configured, so long as there is power to your spa and your wireless router is available for Internet access your spa should show online in your spa list ready for remote access at anytime. -
Page 18: Edit Spa List
5 minutes you should follow these steps to help overcome the problem. Method 1: Ensure WiFi module has entered Infrastructure Mode Once you have entered your wireless network password during the setup process the SpaNET WiFi module should automatically change from hot spot mode (HOT) to infrastructure mode (INFR). -
Page 19: Sv Wifi Network Not Showing In Smart Device Wifi List
2) Follow the instructions for “Configuring your Spa/WiFi Module” on pages 11-16 to complete the setup process again. IMPORTANT NOTES: a) Ensure you start the configuration process again by carrying out steps 1-4 (page 11) on the spa side keypad to put the WiFi module back into Hot Spot mode (HOT). b) Take care to note the signal strength of your wireless network once the WiFi scan is complete and network list is displayed. -
Page 20: Legal Information
Spa Net Pty Ltd 4/103 Railway Road North MULGRAVE NSW 2756 AUSTRALIA Phone: +61 2 4587 7766 Facsimile: +61 2 4587 8766 Email: service@spanet.com.au Website: www.spanet.com.au V.1409A Page | 20...
