ELECTRICAL INSTALLATION

All electrical connections must be performed by a licensed electrician and must conform to all
national, state and local electrical codes in effect at the time of installation.
The appliance should be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
The supply line should be a dedicated power circuit. The installer should consider the sum total load
of all devices connected to the SV Mini controller when determining the size of the power circuit and
install an appropriately sized circuit breaker to suit. Ensure circuit breaker is rated for motor start
up currents. Maximum rated power circuit is 25A.
Heater load shedding is set by default, so that the heater load sheds and turns off as soon as any
device other than Pump 1 is switched on. The installer should consider this when determining the
size of the power circuit required. Heater load shedding can be adjusted if desired. Refer to "Heater
Load Shedding" section on page 18 of this manual for further information.
Electrical Specifications
Model
Max Current
Mini 1 / Mini 2

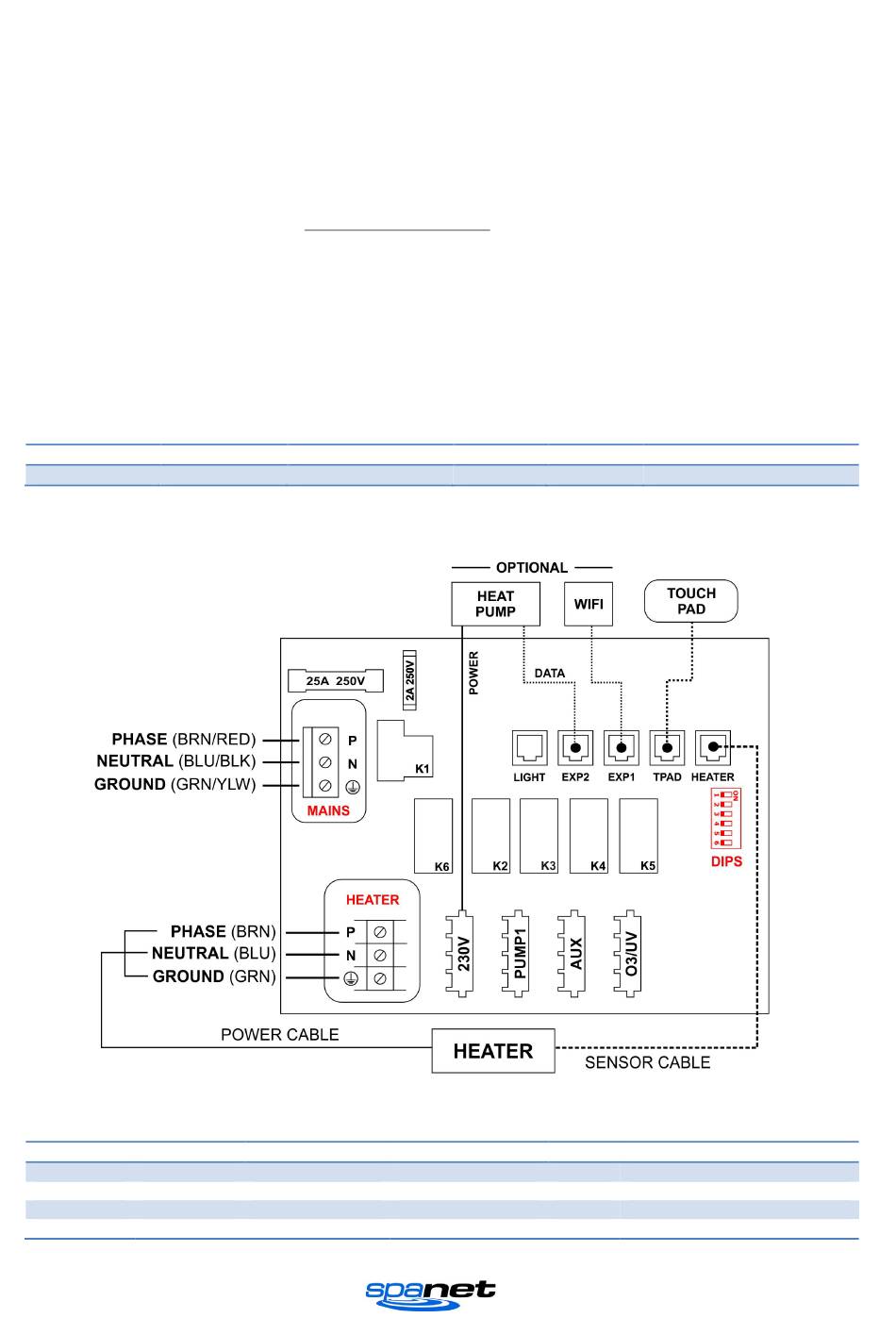

Wiring Diagram (Mini 1)
Output Ratings
Model
Outlet
SV Mini 1
230V
Pump 1
Aux
03/UV
V.2005
Input Voltage
25A
230-240V AC
Max Current
10A
10A
10A
2A
Phases
1
50/60
Output Voltage
Hz
230-240V AC
50/60
230-240V AC
50/60
230-240V AC
50/60
230-240V AC
50/60
Hz
Heater Size
1.5kW / 2.0kW / 3.0kW
Typical Accessory
Heat Pump / Stereo
Circ / 2-spd or 1-spd Pump
1-spd Pump / Air Blower
Ozone / UV Sanitiser
